DAM32.040.A1635.04
Milling head
Part number DAM32040A163504

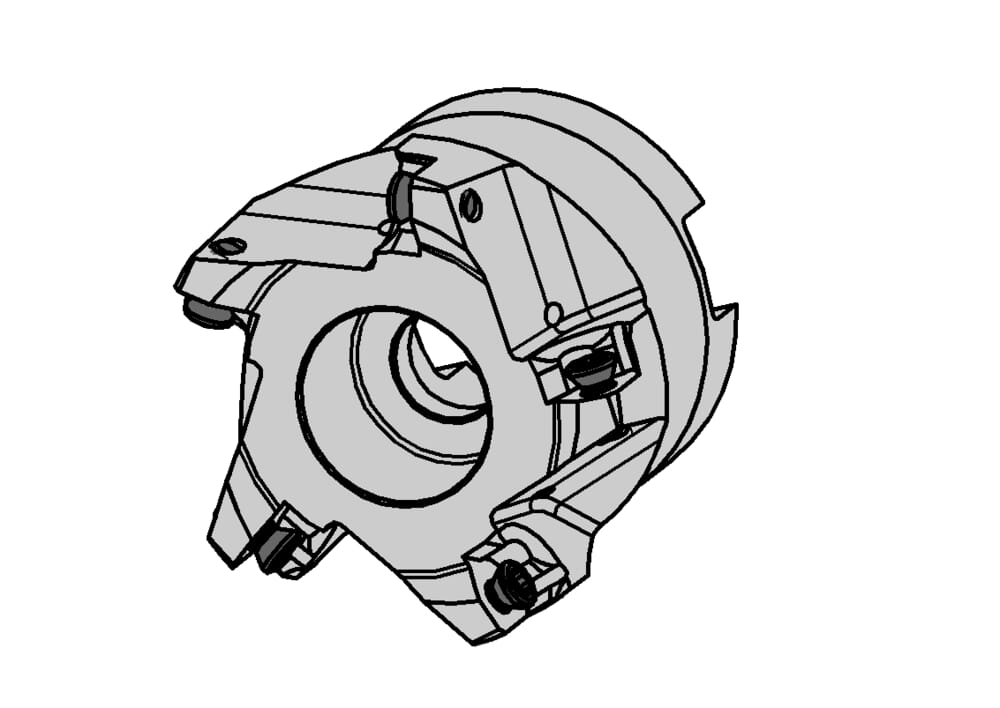

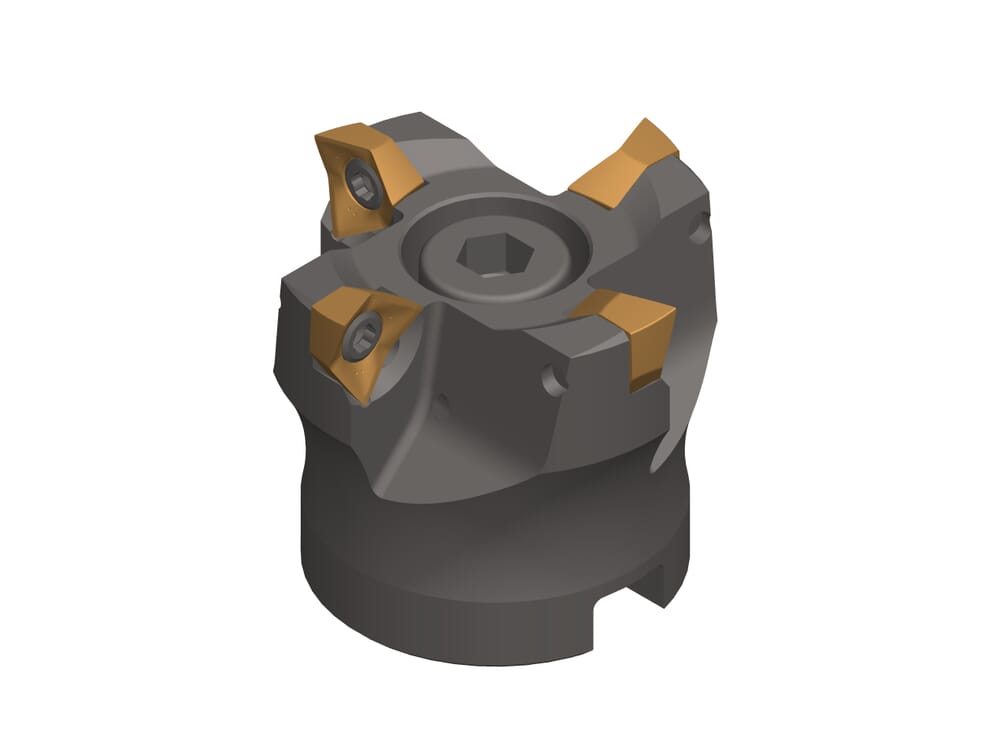

HORN Milling head DAM32.040.A1635.04 for Milling
Please note:Technical instructions
ISO_CCTMS
FDA22G1600$$$$
eclass-shortcut
21-18-08-90

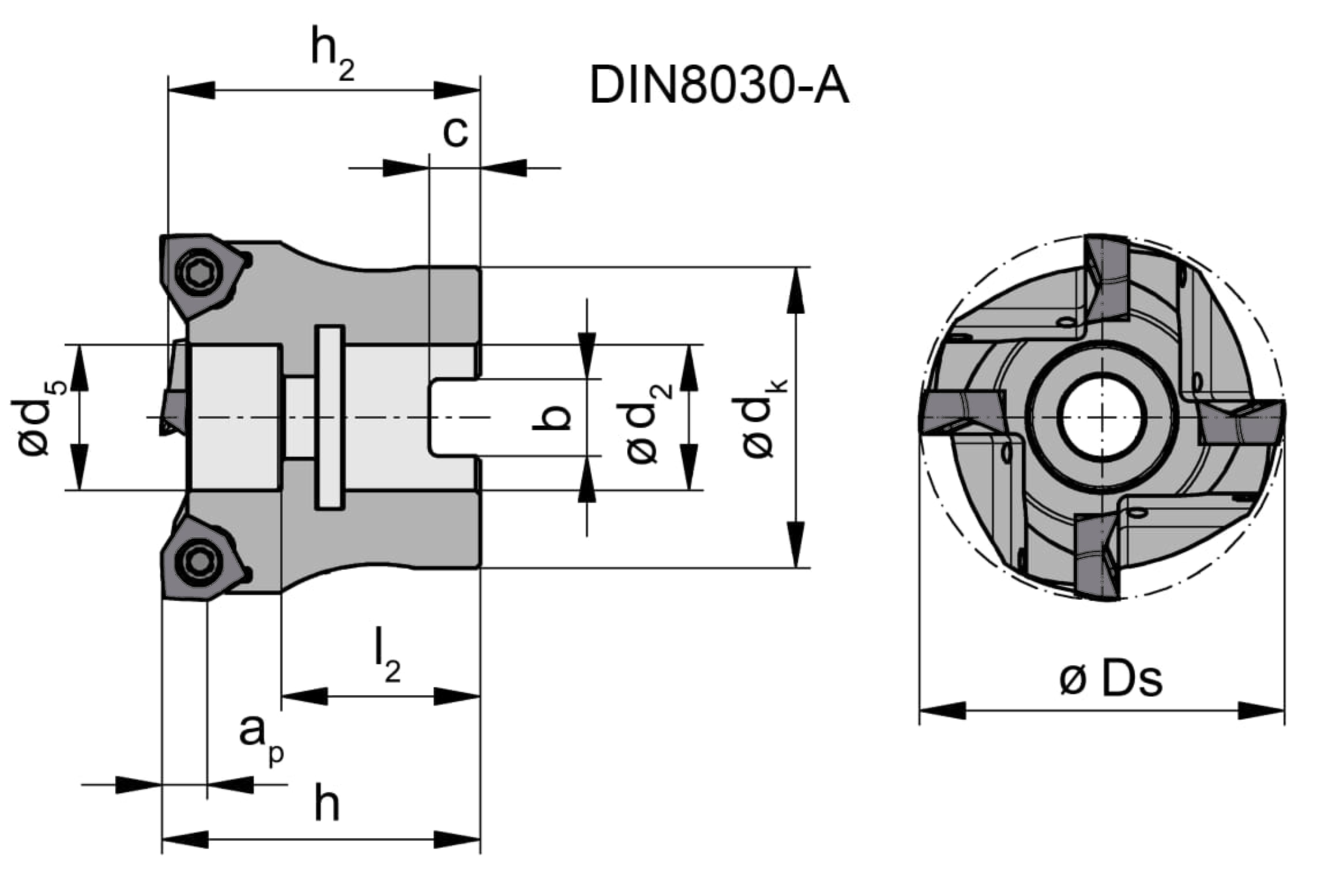

Diameter of the mandrel (dK)
33
mm
Maximum stepover (ap) (ap)
4.8
mm
Depth carrier cross groove (C)
5.6
mm
Width carrier cross groove (b)
8.4
mm
Length from stop to base fastening screw head (l2)
22
mm
Mounting hole diameter (d2)
16
mm
Lowering for mounting screw head (d5)
16
mm
Miller length without indexable insert (h2)
34.4
mm
Miller length with indexable insert (h)
35
mm
cutting-depth-met
4.8
mm
DIN_CCTMS
FDA01602200
Katalog_CCTWS
DA3232
DIN_CCTWS
HORN-DA32323N
ISO_CCTWS
HORNDA3232$$3N$$$$$
Number of teeth (Z)
4
St.
bore-diameter-met
16
mm
Cutting diameter (Ds)
40
mm
