DAM32.050.A2240.05

Toolholder

Part number DAM32050A224005

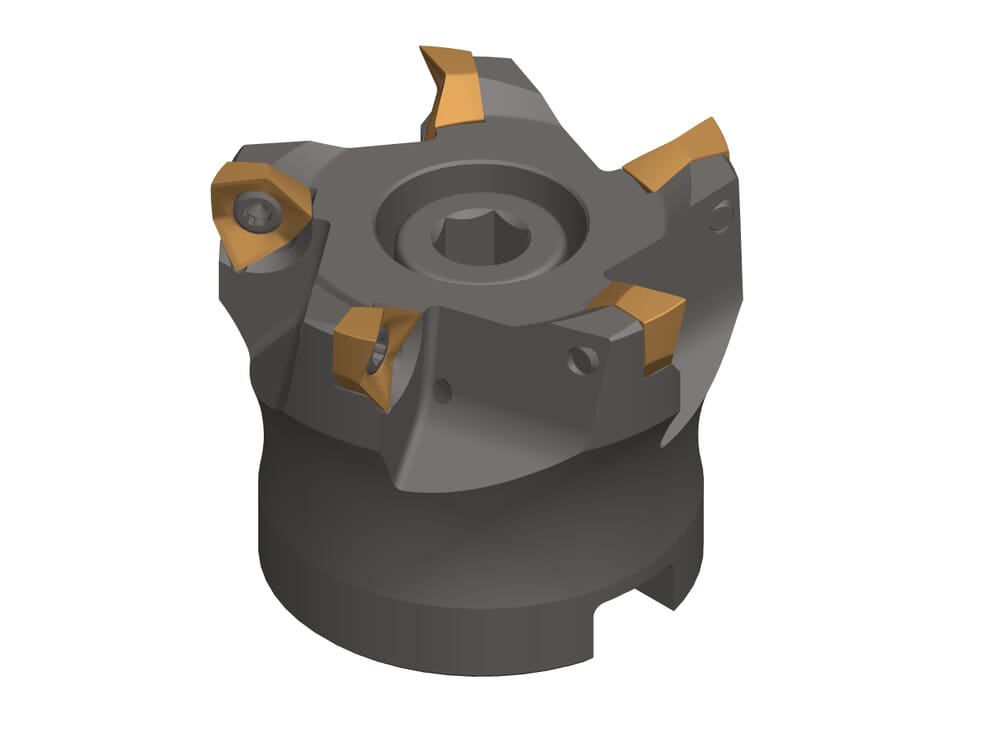

HORN Toolholder DAM32.050.A2240.05 for Milling

Lowering for mounting screw head (d5)

19.5 mm

eclass-shortcut

21-18-08-90

Diameter of the mandrel (dK)

41 mm

Maximum stepover (ap) (ap)

4.8 mm

Depth carrier cross groove (C)

6.3 mm

Width carrier cross groove (b)

10.4 mm

Length from stop to base fastening screw head (l2)

24 mm

Mounting hole diameter (d2)

22 mm

Cutting diameter (Ds)

50 mm

Miller length without indexable insert (h2)

39.4 mm

Miller length with indexable insert (h)

40 mm

cutting-depth-met

4.8 mm

ISO_CCTMS

FDA22G2200$$$$

DIN_CCTMS

FDA02202200

Katalog_CCTWS

DA3232

DIN_CCTWS

HORN-DA32323N

ISO_CCTWS

HORNDA3232$$3N$$$$$

Number of teeth (Z)

5 St.

bore-diameter-met

19.5 mm
