DAM32.063.A2745.06
Milling head
Part number DAM32063A274506

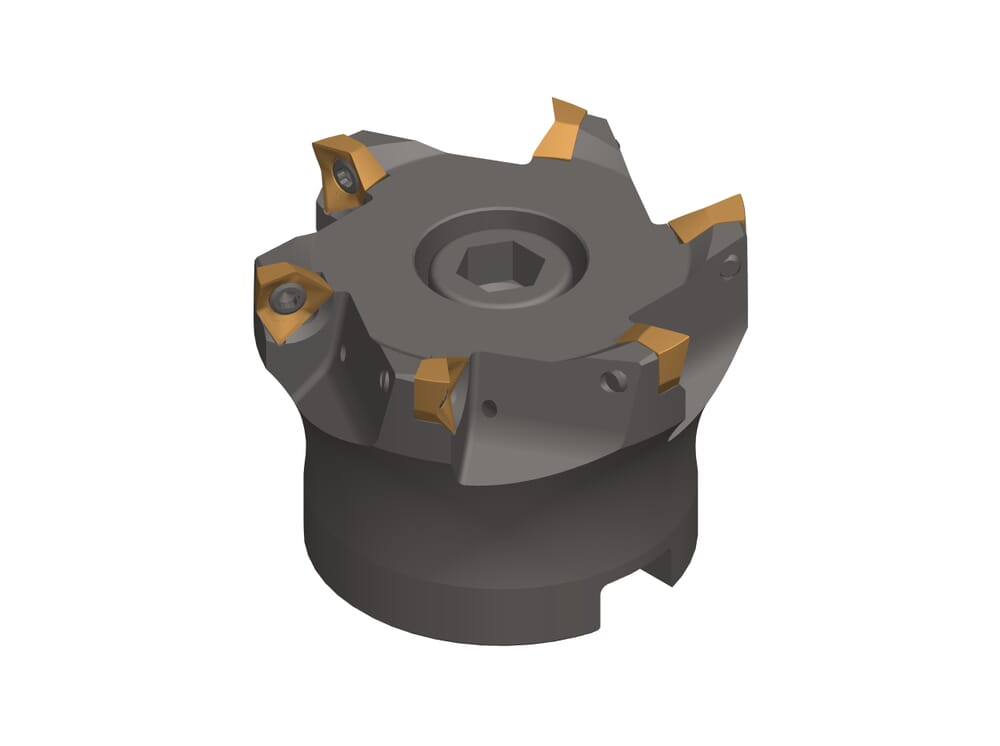

HORN Milling head DAM32.063.A2745.06 for Milling
Please note:Technical instructions
Lowering for mounting screw head (d5)
21.5
mm
eclass-shortcut
21-18-08-90
Diameter of the mandrel (dK)
49
mm
Maximum stepover (ap) (ap)
4.8
mm
Depth carrier cross groove (C)
7
mm
Width carrier cross groove (b)
12.4
mm
Length from stop to base fastening screw head (l2)
27
mm
Mounting hole diameter (d2)
27
mm
Cutting diameter (Ds)
63
mm
Miller length without indexable insert (h2)
44.4
mm
Miller length with indexable insert (h)
45
mm
cutting-depth-met
4.8
mm
ISO_CCTMS
FDA22G2700$$$$
DIN_CCTMS
FDA02702200
Katalog_CCTWS
DA3232
DIN_CCTWS
HORN-DA32323N
ISO_CCTWS
HORNDA3232$$3N$$$$$
Number of teeth (Z)
6
St.
bore-diameter-met
21.5
mm
