DAM62.020.D20.4.02B
Milling tool
Part number DAM62020D20402B

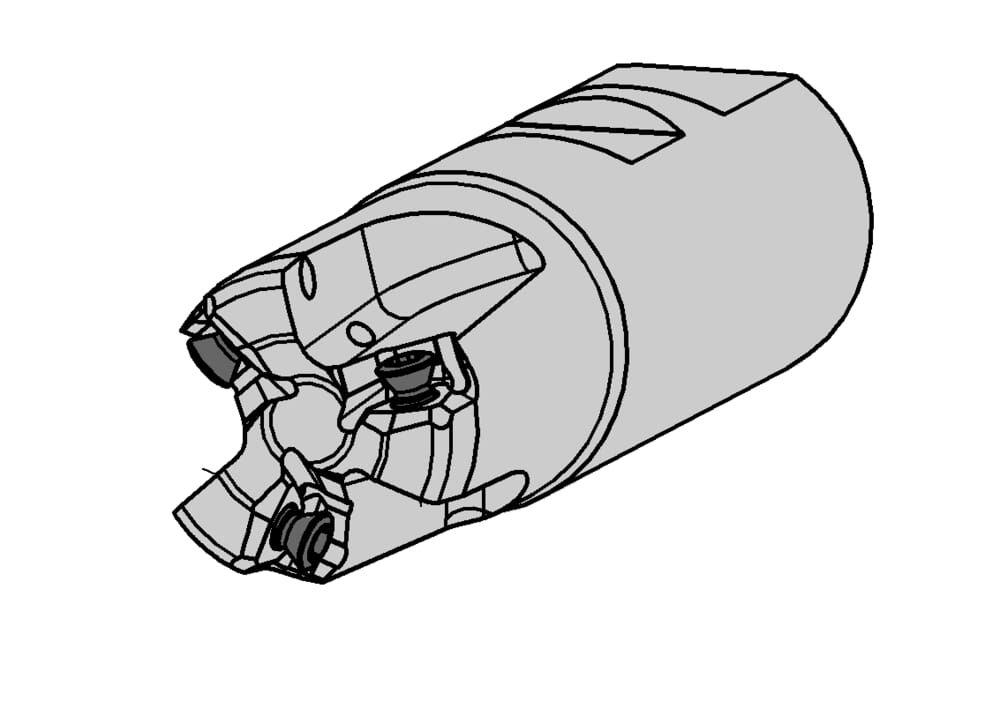

HORN Milling tool DAM62.020.D20.4.02B for Milling
Please note:Technical instructions
Katalog_CCTWS
DA6200
eclass-shortcut
21-18-08-90

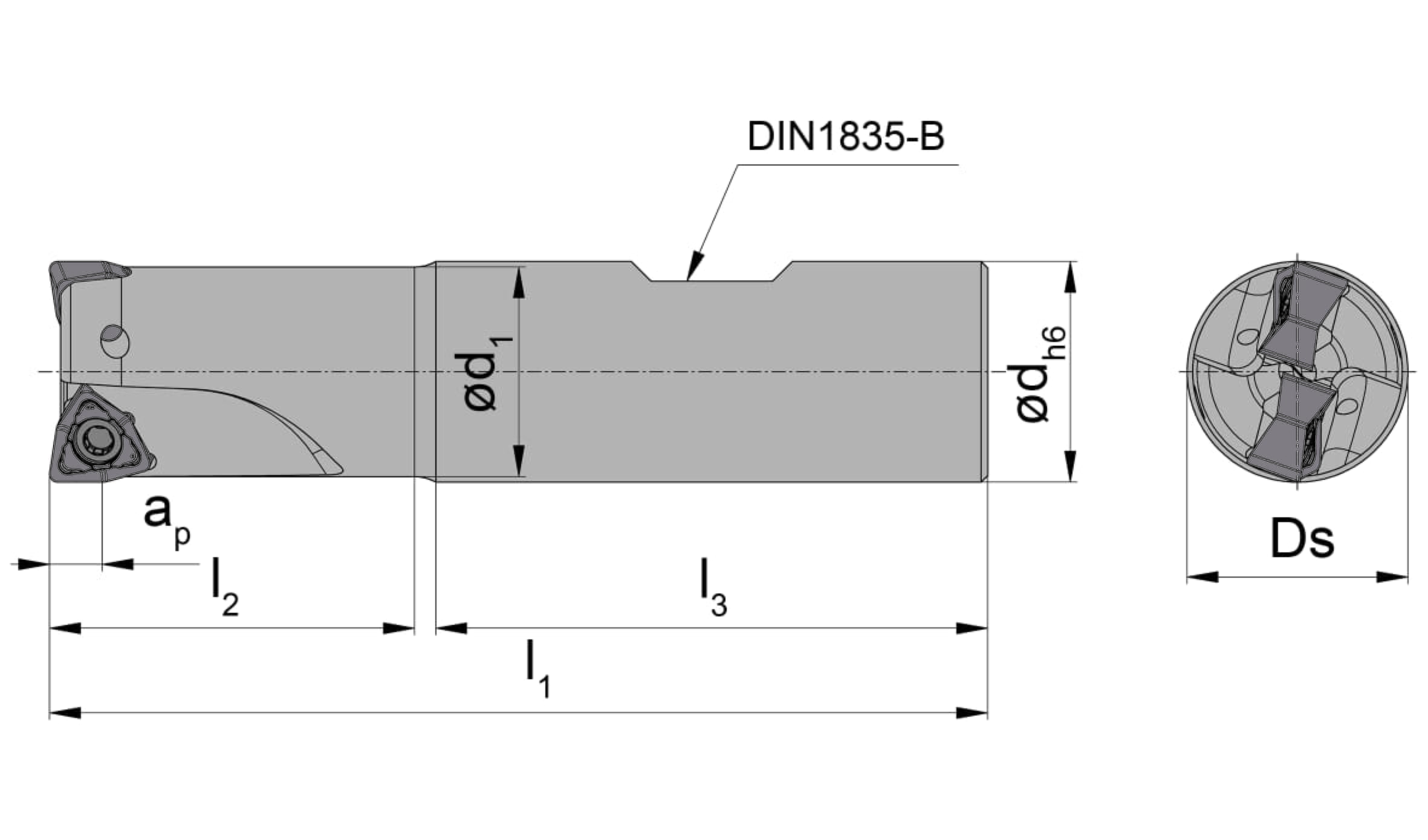

Tension length (l3)
50
mm
Working length, Neck length, Extension length (l2)
33
mm
Total length insert (l1)
85
mm
cone-diameter-met
20
mm
Neck diameter (d1)
19
mm
Cutting depth (ap)
4.5
mm
ISO_CCTMS
ZYL10G2000h$06
DIN_CCTMS
ZYL02001015
DIN_CCTWS
HORN-DA62003N
ISO_CCTWS
HORNDA6200$$3N$$$$$
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| DAM62020D20402B_20240205_225615325.DXF | Download |
| DAM62020D20402B.STP | Download |
| Download all files | |
