DAM62.025.M12.5.03

screw-in cutter

Part number DAM62025M12503

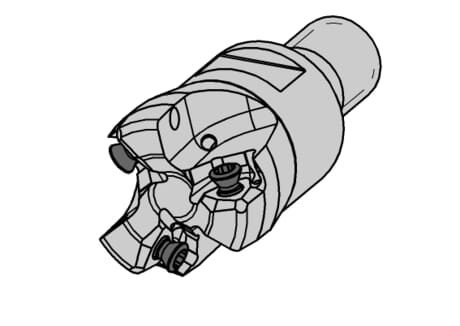

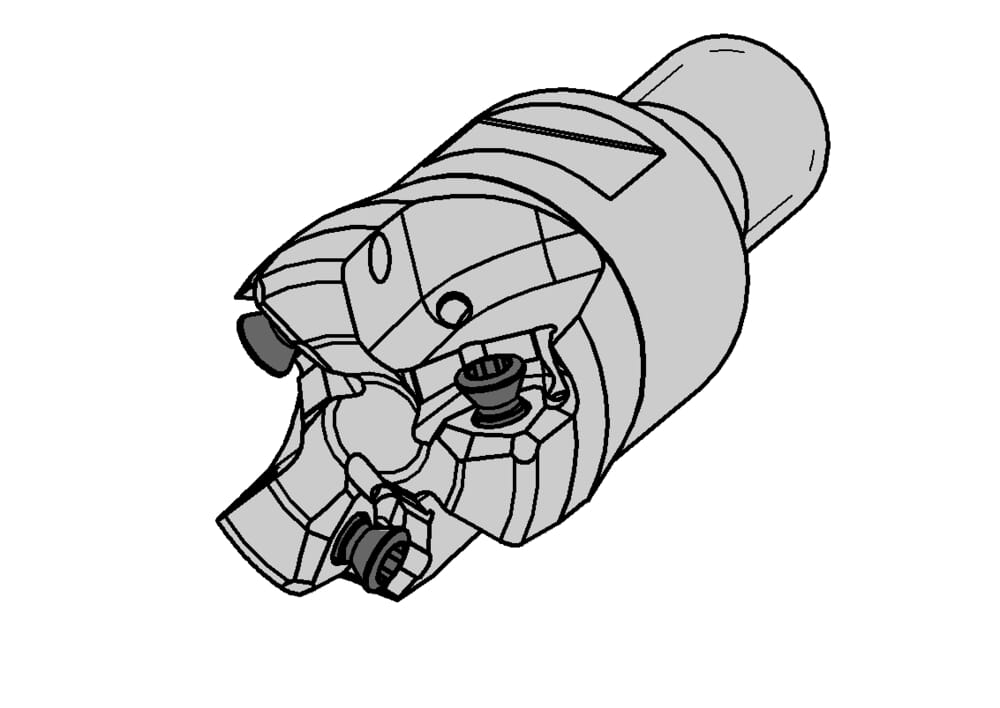

HORN screw-in cutter DAM62.025.M12.5.03 for Milling

Katalog_CCTWS

DA6200

eclass-shortcut

21-18-08-90

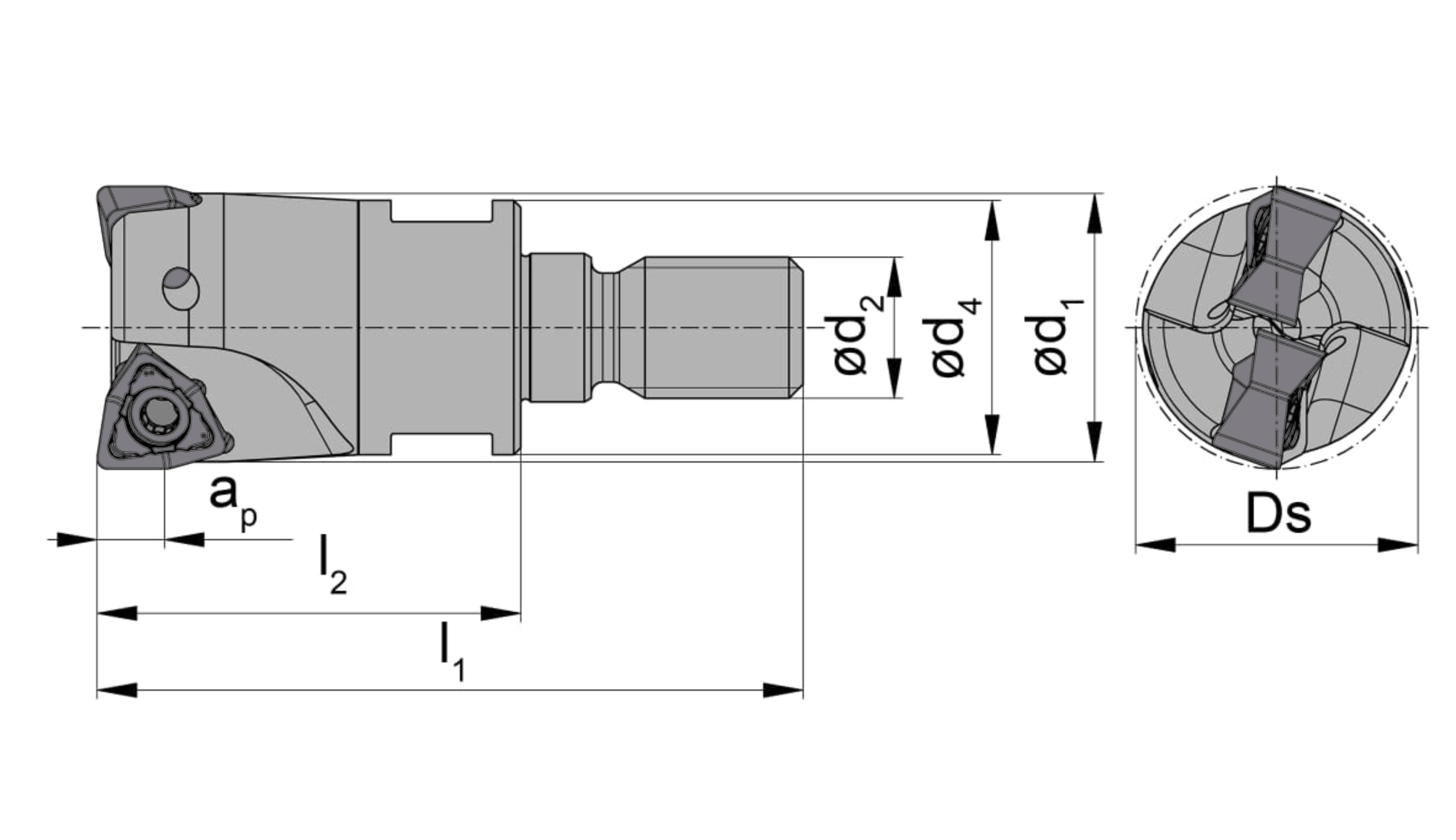

Maximum stepover (ap) (ap)

4.5 mm

Key range (SW)

17 mm

Neck diameter on stop (d4)

21 mm

Length from stop (l2)

35 mm

Total milling length with insert (l1)

57 mm

Katalog_CCTMS

12001

ISO_CCTMS

HORN01200105$$

DIN_CCTMS

HORN-01200105

DIN_CCTWS

HORN-DA62003N

ISO_CCTWS

HORNDA6200$$3N$$$$$

Diameter miller body (d1)

24 mm

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

25 mm

Screw thread (d2)

M12

Downloads
DAM62025M12503.STP	Download
