LA210.25.9513.15
Toolholder
Part number LA21025951315

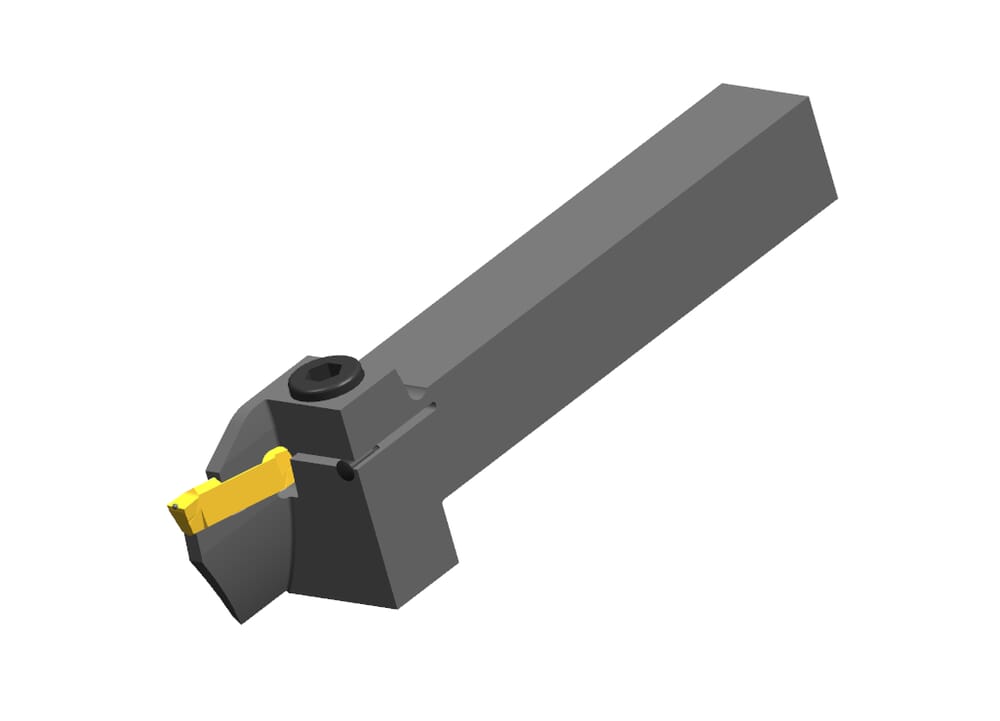

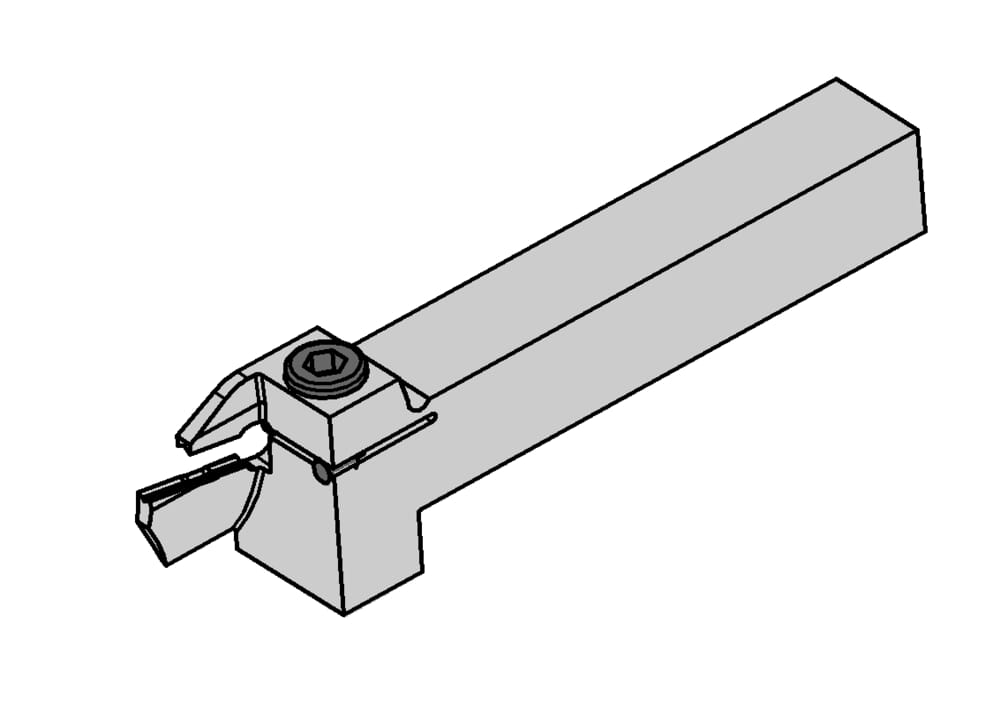

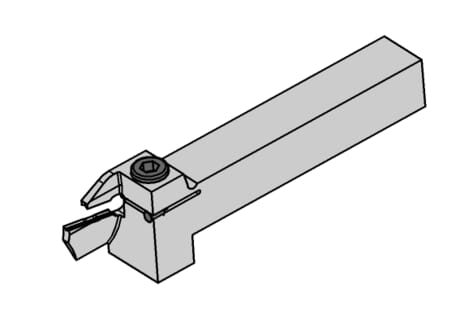

HORN Toolholder LA210.25.9513.15 for Turning
Please note:Technical instructions

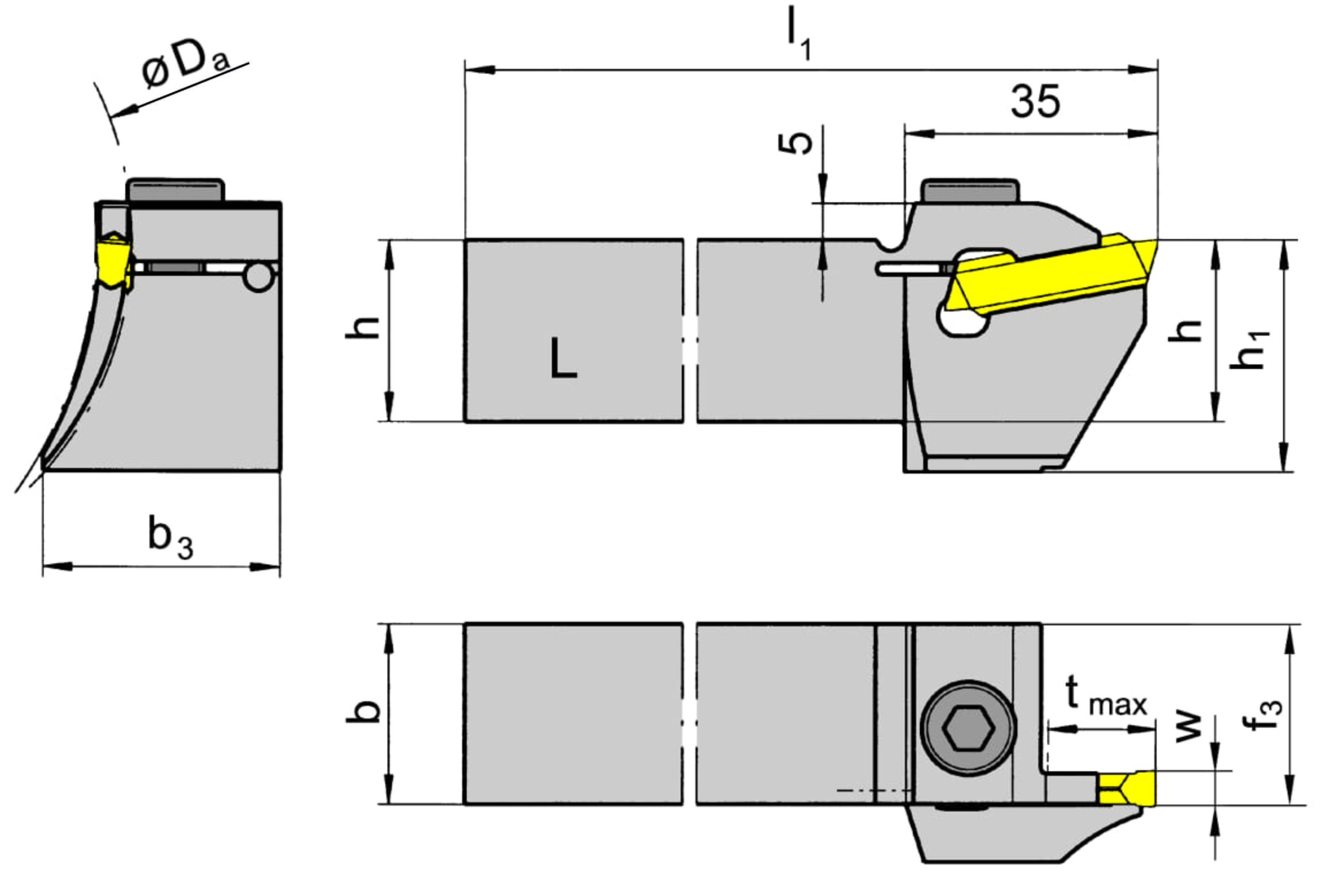

Minimum starting outside diameter (Da min)
95
mm
eclass-shortcut
21-18-10-04
Width of groove (w)
5
mm
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
229050;229051
DIN_CCTWS
HORN-229050108N;HORN-229051108N
ISO_CCTWS
HORN229050108N$$$$$;HORN229051108N$$$$$
Peak height (h1)
32
mm
Maximum starting outside diameter (Da max)
130
mm
Maximum insertion depth (tmax)
15
mm
Head width (b3)
33
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f3)
25.5
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| LA21025951315.DXF | Download |
| LA210_25_9513_15_20171121_194555676.STP | Download |
| Download all files | |
