LB224.0025.0.06
Toolholders
Part number LB2240025006

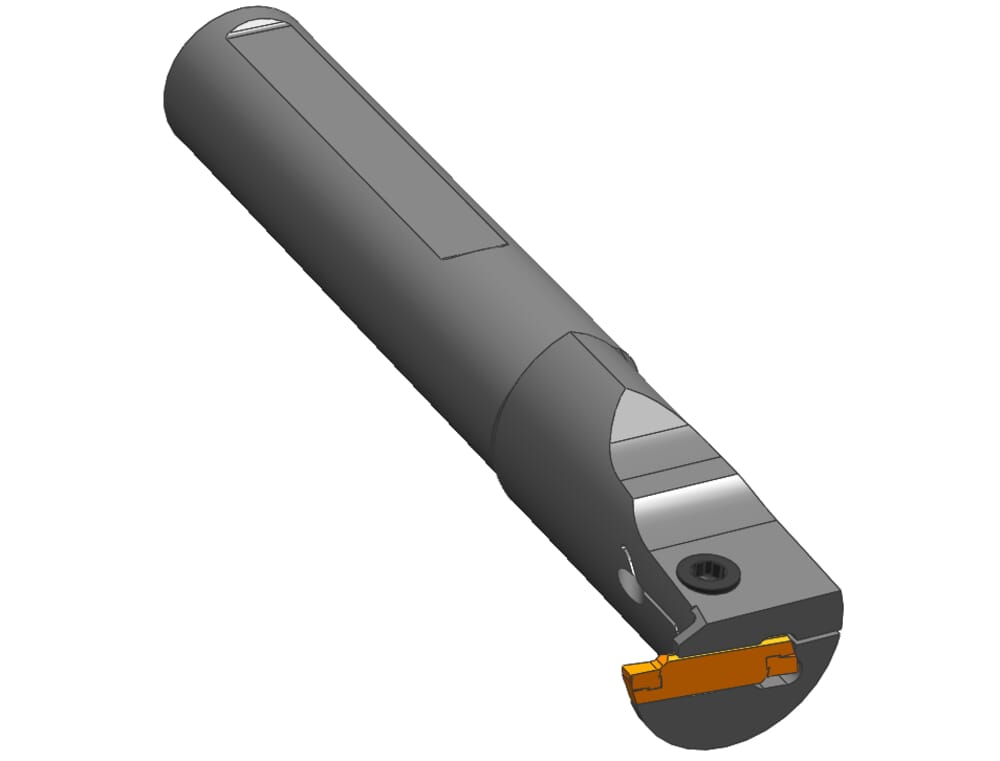

HORN Toolholders LB224.0025.0.06 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
6.1
mm
eclass-shortcut
21-18-10-05
Width of groove (w)
6
mm
Plating seat size (Größe)
6
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502315
Katalog_CCTWS
224068
DIN_CCTWS
HORN-224060058N
ISO_CCTWS
HORN224060058N$$$$$
Clamping range minimum (Spannbereich)
5.1
mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
35
mm
Maximum depth of groove (tmax)
8
mm
Total length (including cutting insert) (l1)
130
mm
Adjustment dimension from center (f)
21
mm
Distance of clamping surface (s) (h)
23
mm
