Part number MD110100D12B

HORN shank MD11.01.00.D12B for Milling

Please note:Technical instructions

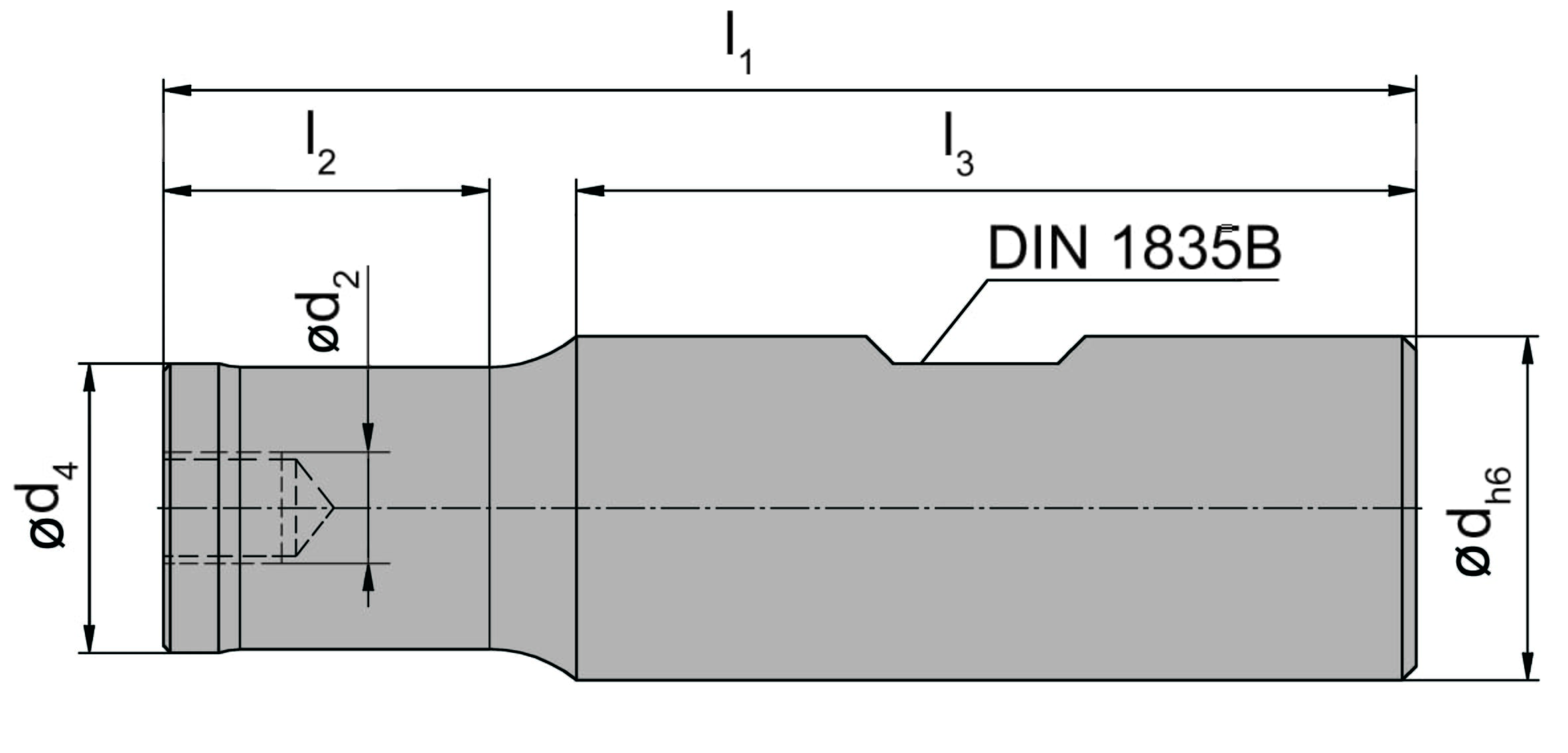

Shank diameter (d)

12 mm

Flange diameter / hub diameter (d4)

11

Screw thread (d2)

M6

Shank length (l3)

45 mm

Neck length (l2)

12 mm

DIN_CCTMS

ZYL01201015

ISO_CCTMS

ZYL10G1200h$06

Total length (l1)

60 mm

eclass-shortcut

21-02-20-01
