MD13.02.85.D20B
Toolholder
Part number MD130285D20B

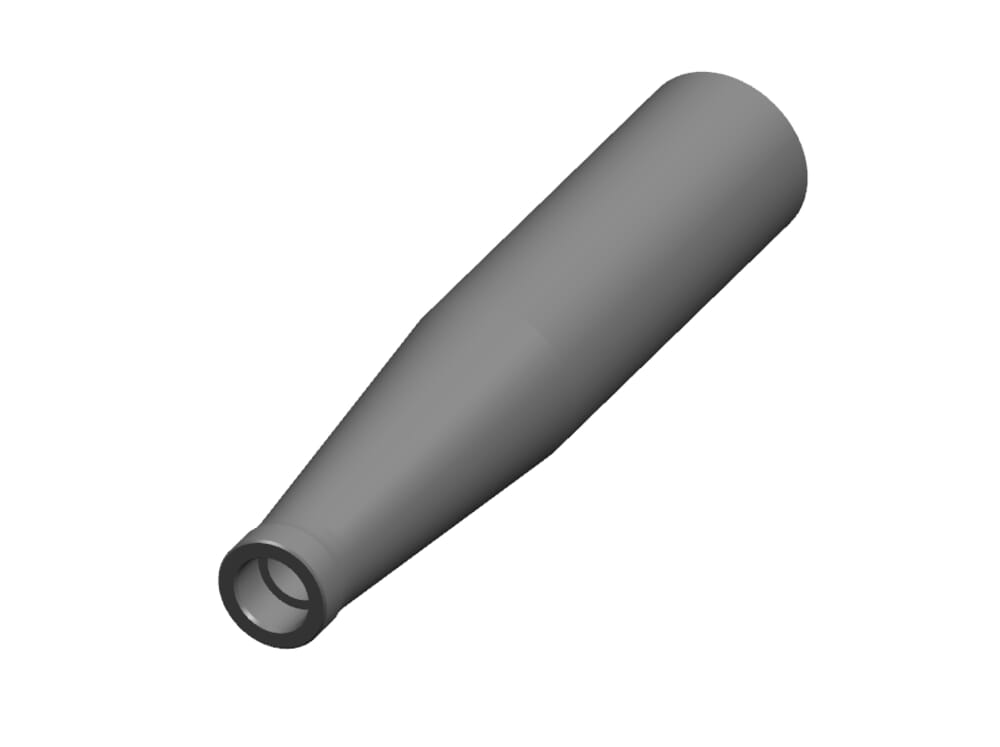

HORN Toolholder MD13.02.85.D20B for Milling
Please note:Technical instructions
Shank diameter (d)
20
mm
Flange diameter / hub diameter (d4)
13
mm
Screw thread (d2)
M8
Shank length (l3)
55
mm
Neck length (l2)
7
mm
Shank tapering angle α (α)
85
DIN_CCTMS
ZYL02001015
ISO_CCTMS
ZYL10G2000h$06
Total length (l1)
105
mm
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| MD13_02_85_D20B.DXF | Download |
| MD13_02_85_D20B_20171121_234137727.STP | Download |
| Download all files | |
