MG25.B032.105.1

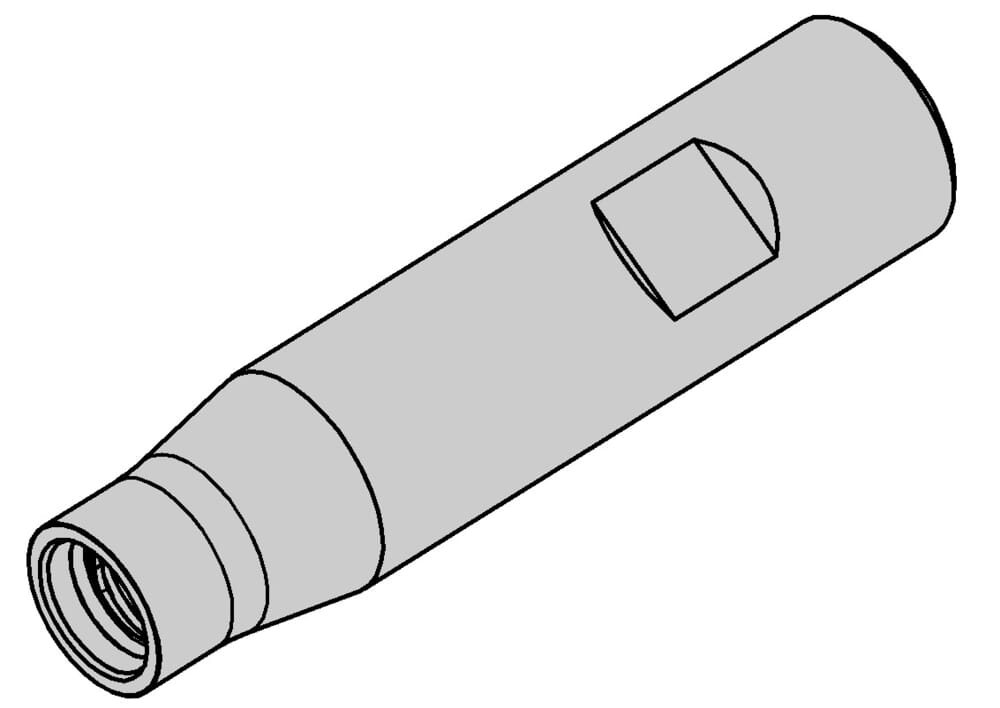

Milling cutter shank

SCHAFT_DIN1835_B.EPS

NICHT_WARMSCHRUMPFEN.EPS

VHM_IK_ZENTRAL.EPS

Part number MG25B0321051

HORN Milling cutter shank MG25.B032.105.1 for Milling

Please note:Technical instructions

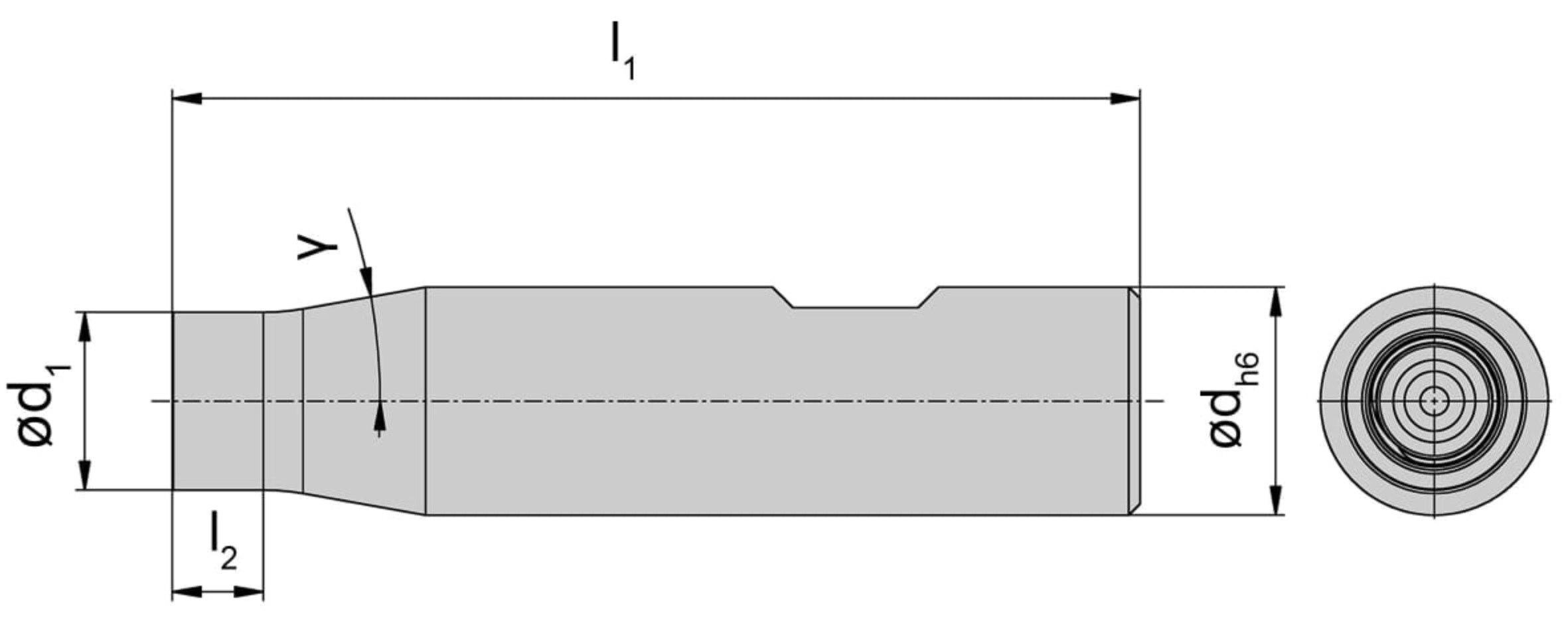

Shank diameter (d)

32 mm

Neck length (l2)

12.5 mm

System (System)

DG25

ISO_SSC

HORNDG02529$0N$$$$$

DIN_SSC

HORN-DG02520N

Katalog_SSC

DG0252

Plating seat size (Größe)

25

Neck diameter (d1)

24.5 mm

Total length (l1)

105 mm

Shank tapering angle γ (γ)

10 °
