R210.3225.09
Toolholders
Part number R210322509

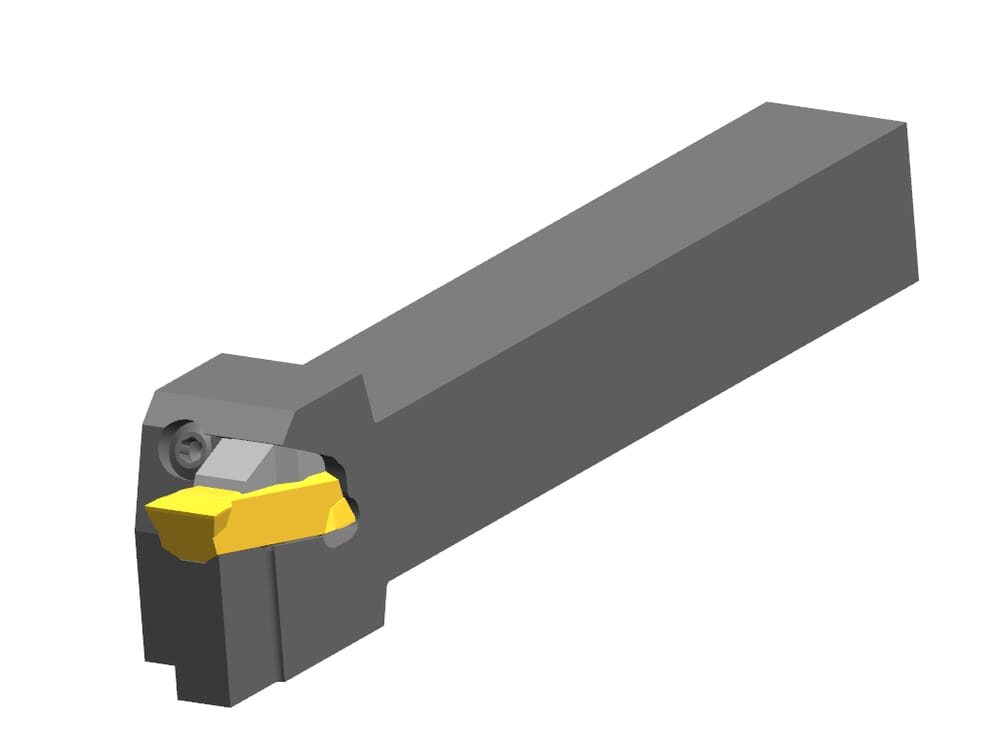

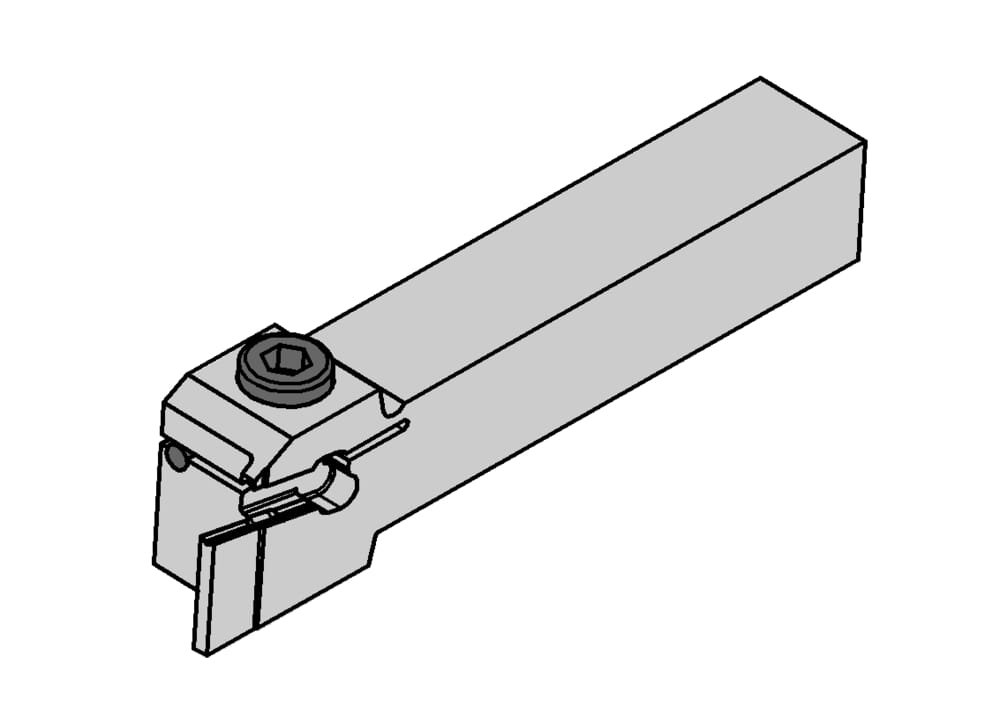

HORN Toolholders R210.3225.09 for Turning
Please note:Technical instructions

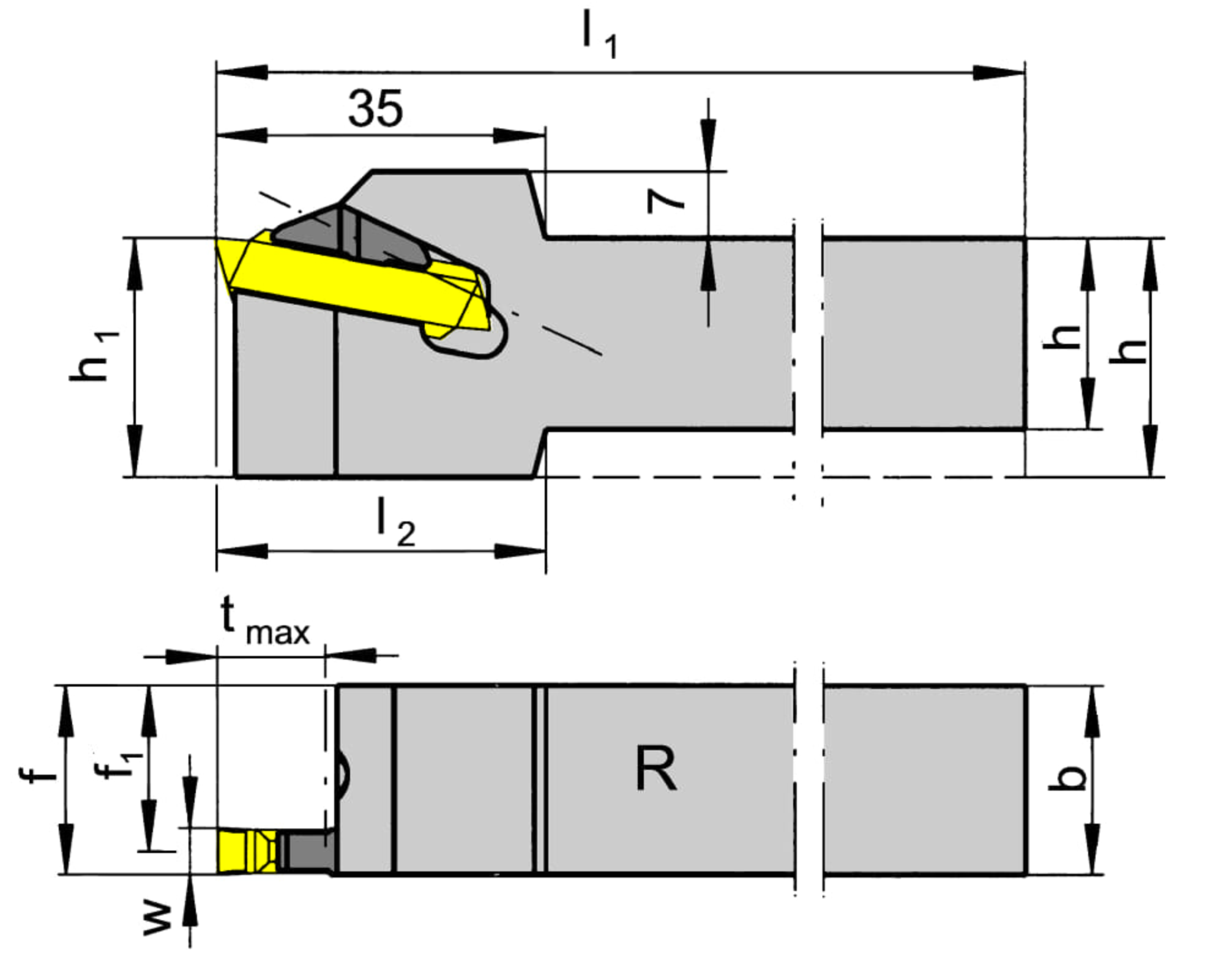

Peak height (h1)
32
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A3225$$$$
DIN_CCTMS
VKT32250105
Katalog_CCTWS
229090;229091
DIN_CCTWS
HORN-229090108N;HORN-229091108N
ISO_CCTWS
HORN229090108N$$$$$;HORN229091108N$$$$$
Adjustment dimension (formula) (f)
f1+w/2
Maximum insertion depth (tmax)
11
mm
Shank height (h)
32
mm
Size (Größe)
9
Total length (including cutting insert) (l1)
170
mm
Adjustment dimension cutting center (f1)
20.2
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R210322509.DXF | Download |
| R210_3225_09_20171121_201056990.STP | Download |
| Download all files | |
