R211.2020.07
Toolholders
Part number R211202007

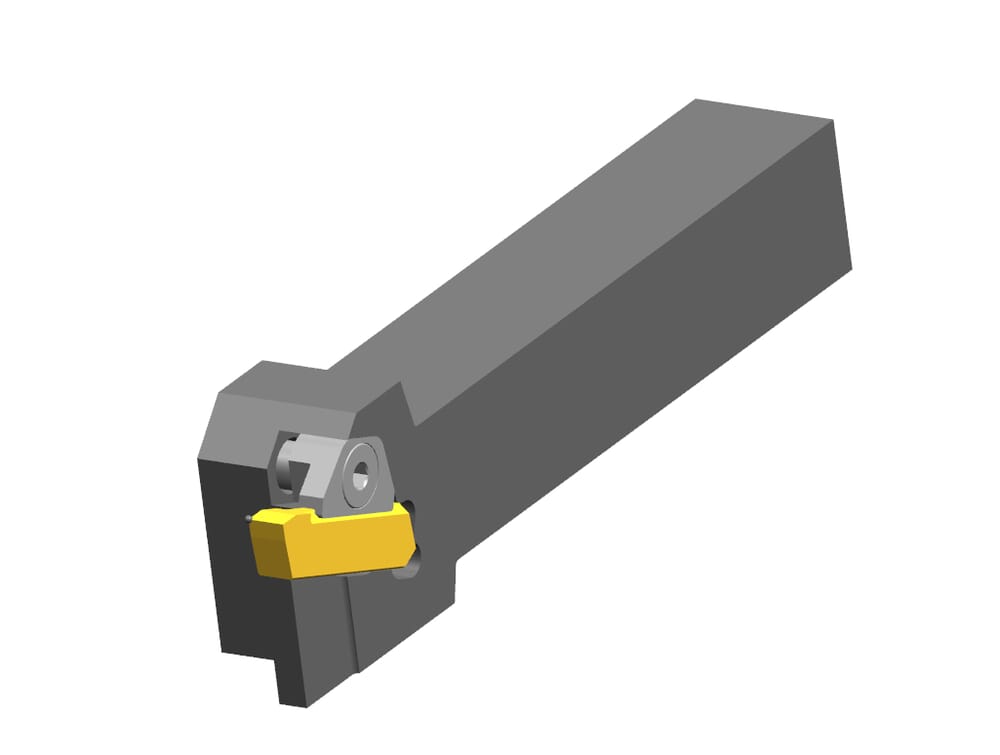

HORN Toolholders R211.2020.07 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
8.5
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
23107R;23107N
DIN_CCTWS
HORN-231070208R;HORN-231070208N
ISO_CCTWS
HORN231070208R$$$$$;HORN231070208N$$$$$
Adjustment dimension locating face insert (f1)
13
mm
Head length (including cutting edge) (l2)
35
mm
Adjustment dimension (formula) (f)
f1+w-a1
Clamping range minimum (Spannbereich)
6.5
mm
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
11
mm
Shank height (h)
20
mm
Size (Größe)
7
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| R211202007.DXF | Download |
| R211_2020_07_20171121_230955135.STP | Download |
| Download all files | |
