R213.0025.03IK
grooving-toolholder
Part number R213002503IK

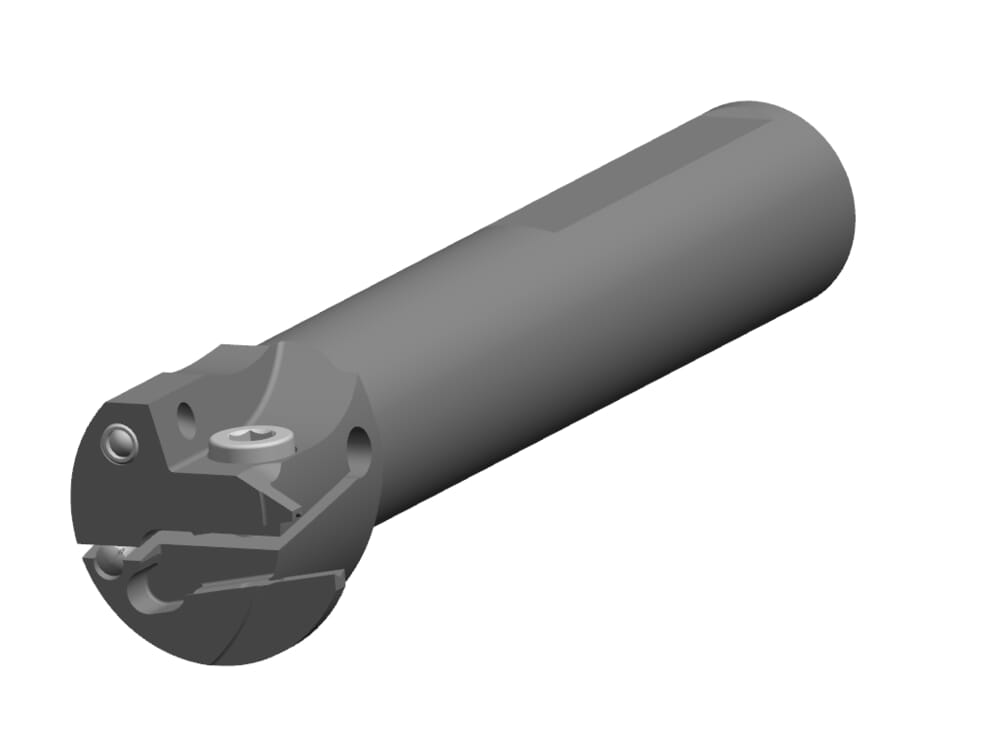

HORN grooving-toolholder R213.0025.03IK for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
3
mm
eclass-shortcut
21-18-10-05
Plating seat size (Größe)
3
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502315
Katalog_CCTWS
229030
DIN_CCTWS
HORN-229030108N
ISO_CCTWS
HORN229030108N$$$$$
Clamping range maximum (Spannbereich)
4
mm
Peak height (h1)
11.5
mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
38
mm
Maximum depth of groove (tmax)
7.5
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension from center (f)
24.5
mm
Distance of clamping surface (s) (h)
23
mm
