R219.2525.09
Toolholders
Part number R219252509

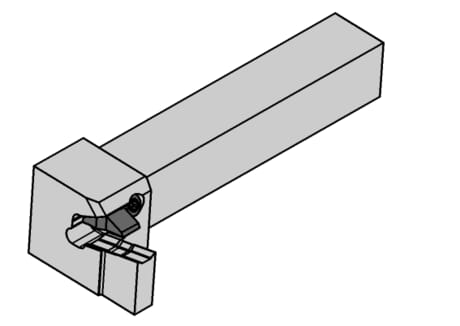

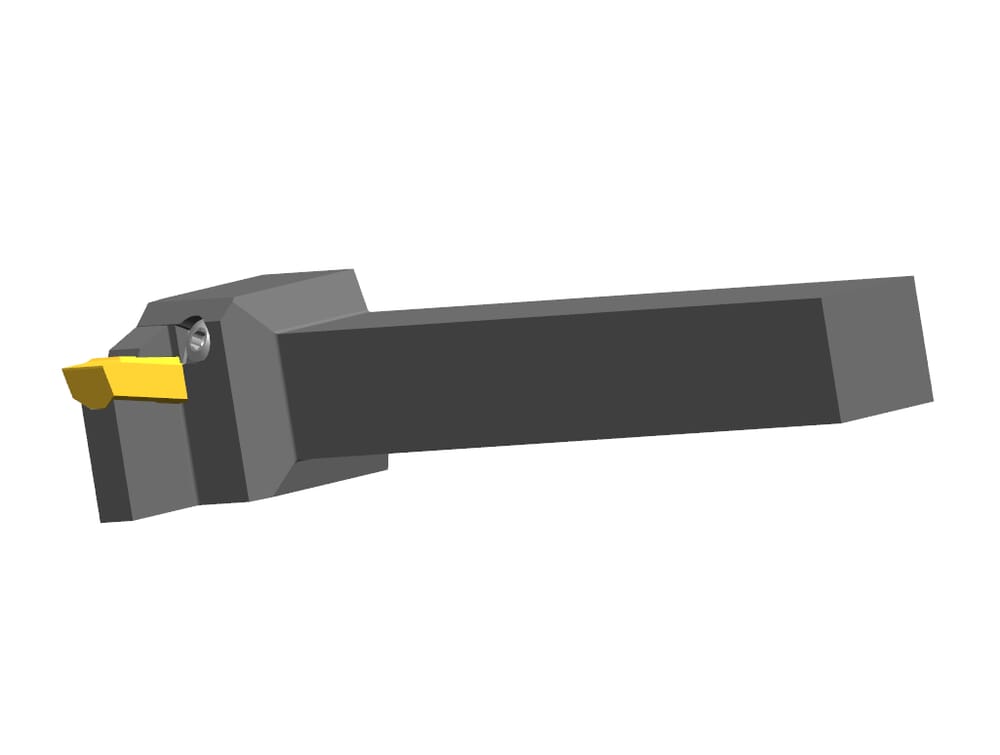

HORN Toolholders R219.2525.09 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
10.4
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
9
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
229090;229091
DIN_CCTWS
HORN-229090108N;HORN-229091108N
ISO_CCTWS
HORN229090108N$$$$$;HORN229091108N$$$$$

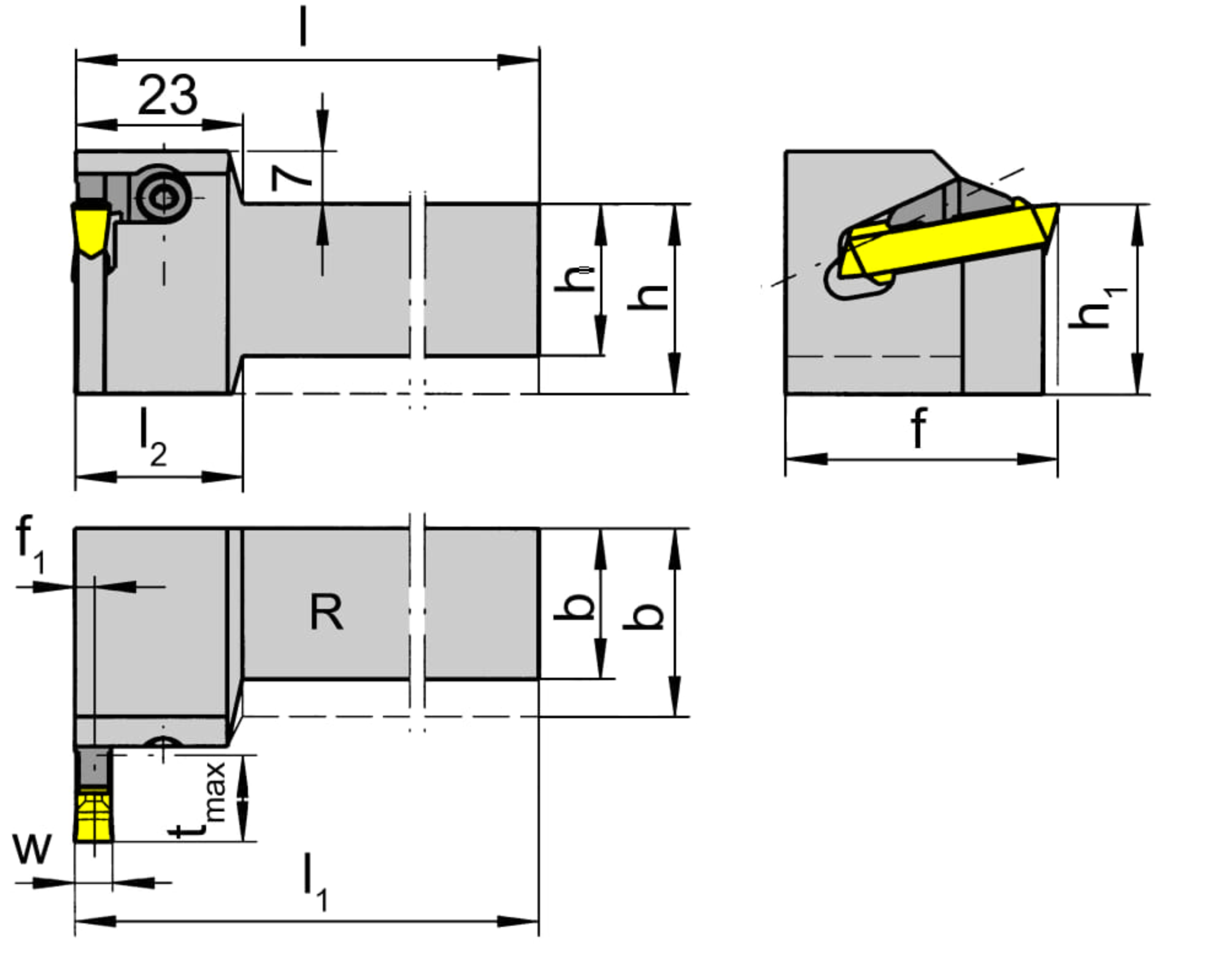

Adjustment dimension to insert seat (f1)
4.8
mm
Length overall formula (l1)
l-f1+w/2
Clamping range minimum (Spannbereich)
8.1
mm
Peak height (h1)
25
mm
starting-outside-diameter-min-met
8.1
mm
Maximum depth of groove (tmax)
15
mm
Shank height (h)
25
mm
Total length (without cutting insert) (l)
150
mm
Adjustment dimension (f)
45
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R219_2525_09.DXF | Download |
| Download all files | |
