R221.2525.09
Toolholders
Part number R221252509

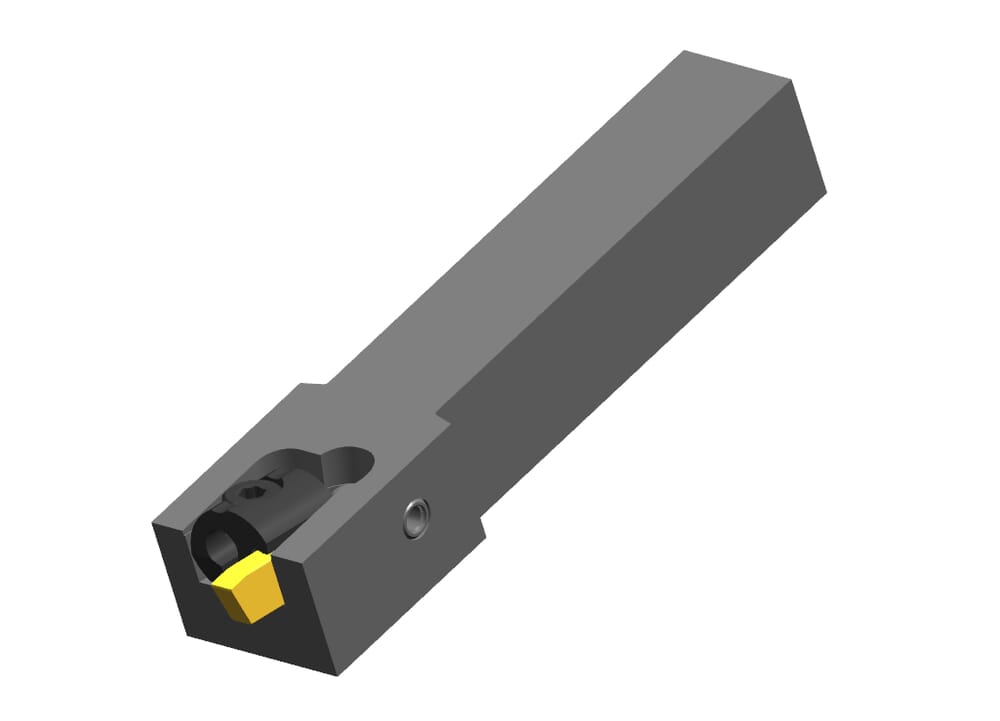

HORN Toolholders R221.2525.09 for Turning
Please note:Technical instructions
Peak height (h1)
25
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
9
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
23109R;23109N
DIN_CCTWS
HORN-231090128R;HORN-231090128N
ISO_CCTWS
HORN231090128R$$$$$;HORN231090128N$$$$$
Clamping range maximum (Spannbereich)
10
mm
Clamping range minimum (Spannbereich)
8.1
mm
Minimum starting outside diameter (Da min)
40
mm
Maximum insertion depth (tmax a)
8
mm
Head size (b2)
4.5
mm
Head width (b1)
34
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f)
23.4
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R221252509.DXF | Download |
| R221_2525_09.STP | Download |
| Download all files | |
