R226.2525.38
Toolholder
Part number R226252538

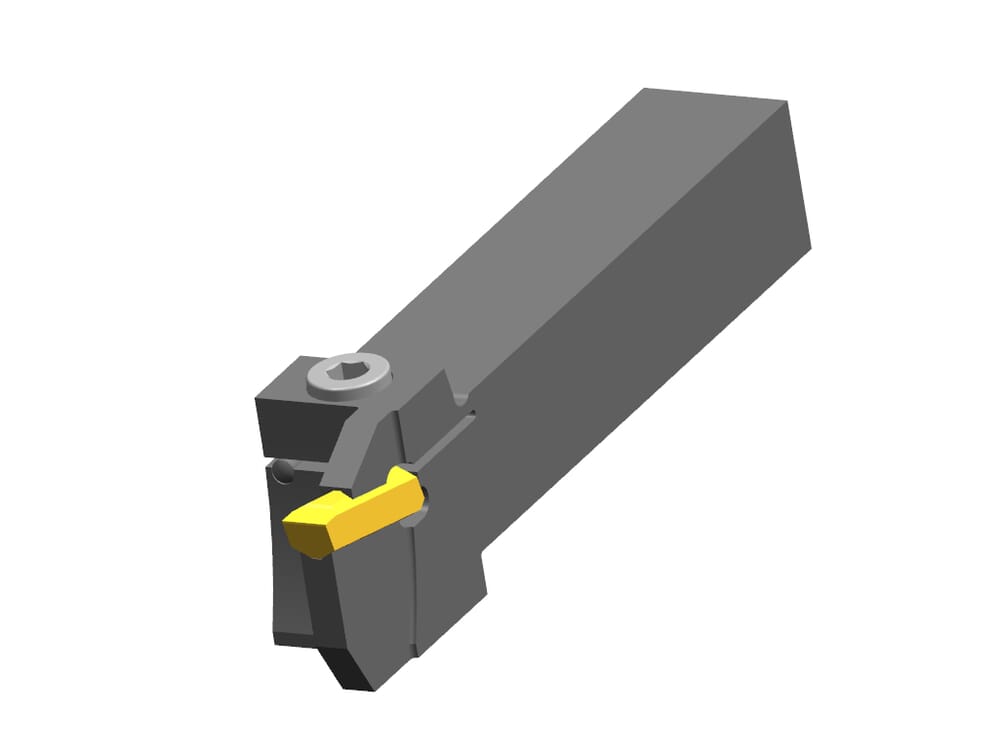

HORN Toolholder R226.2525.38 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
5.09
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
7
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
229070;229071
DIN_CCTWS
HORN-229070108N;HORN-229071108N
ISO_CCTWS
HORN229070108N$$$$$;HORN229071108N$$$$$
Head length (including cutting edge) (l2)
42.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
6.4
mm
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
120
mm
Adjustment dimension cutting center (f1)
21.2
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R226252538.DXF | Download |
| R226252538_20230114_004128743.STP | Download |
| Download all files | |
