R226.2608.03
Toolholders
Part number R226260803

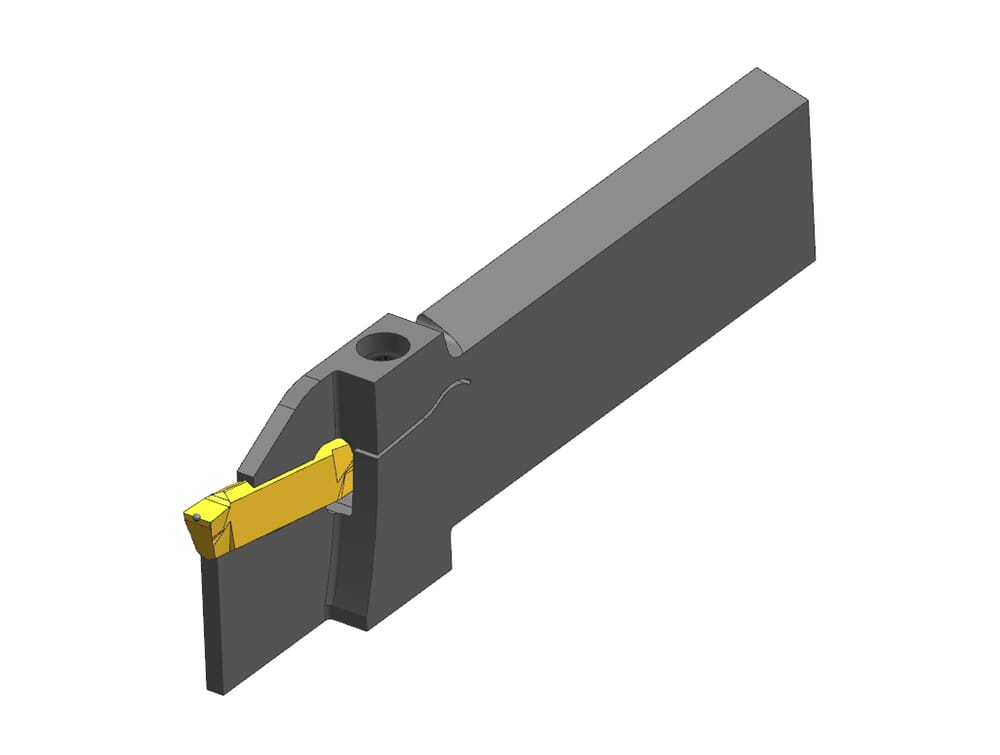

HORN Toolholders R226.2608.03 for Turning
Please note:Technical instructions
Clamping range (Spannbereich)
3
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
229030
DIN_CCTWS
HORN-229030108N
ISO_CCTWS
HORN229030108N$$$$$
Peak height (h2)
24.8
mm
Maximum workpiece diameter (Dmax)
150
mm
Maximum insertion depth (tmax)
25
mm
Head height (h1)
21.4
mm
Shank height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension cutting center (f)
1.2
mm
Shank width (b)
8
mm
| Downloads | |
|---|---|
| R226260803_20210628_210834811.DXF | Download |
| R226_2608_03_20171121_235133396.STP | Download |
| Download all files | |
