R226.3208.04
Toolholders
Part number R226320804

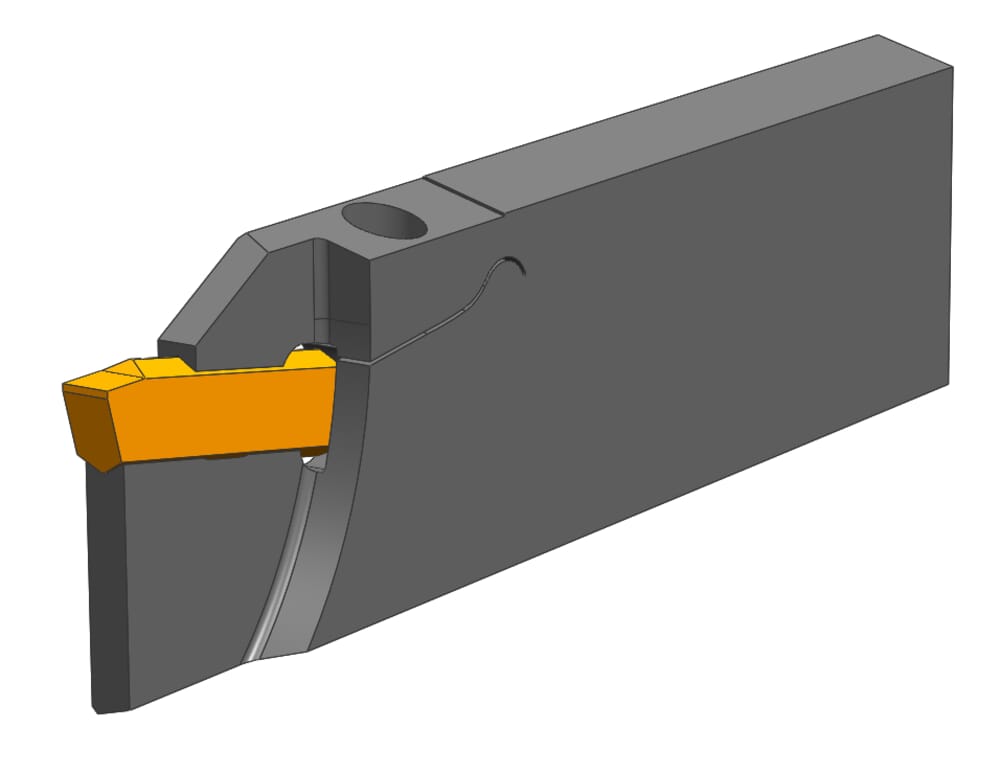

HORN Toolholders R226.3208.04 for Turning
Please note:Technical instructions
Clamping range (Spannbereich)
4
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Peak height (h2)
24.8
mm
Maximum workpiece diameter (Dmax)
150
mm
Maximum insertion depth (tmax)
25
mm
Head height (h1)
24.8
mm
Shank height (h)
32
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension cutting center (f)
1.7
mm
Shank width (b)
8
mm
| Downloads | |
|---|---|
| R226320804_20210628_210857045.DXF | Download |
| R226_3208_04.STP | Download |
| Download all files | |
