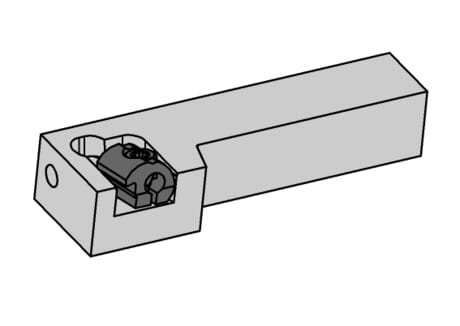

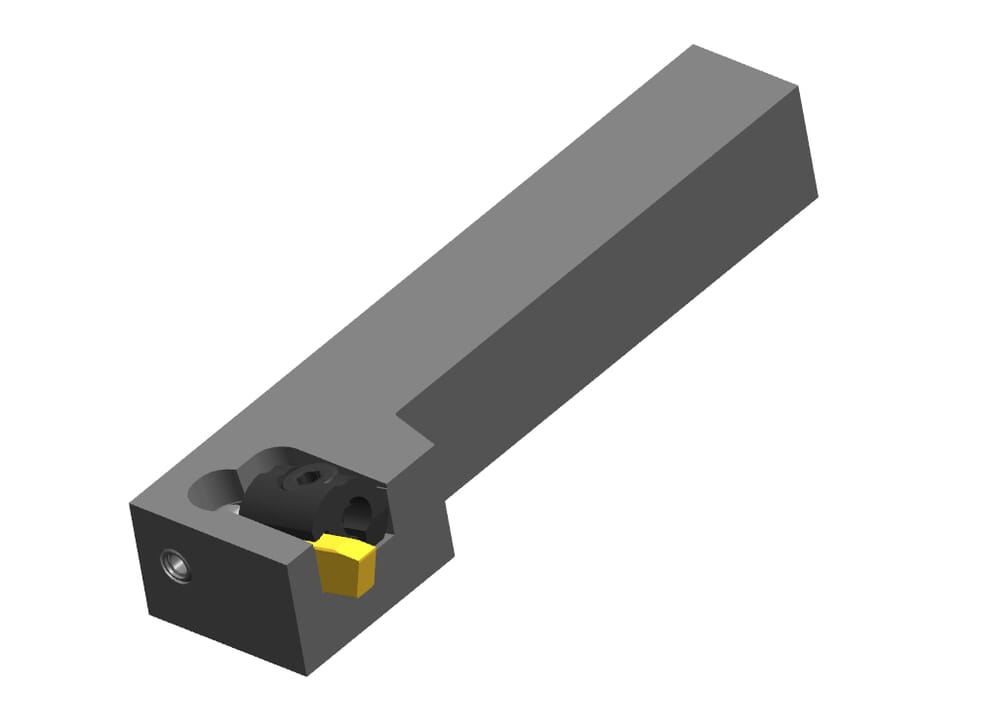

R228.2525.05
Toolholders
Part number R228252505
HORN Toolholders R228.2525.05 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
6
mm
eclass-shortcut
21-18-10-04

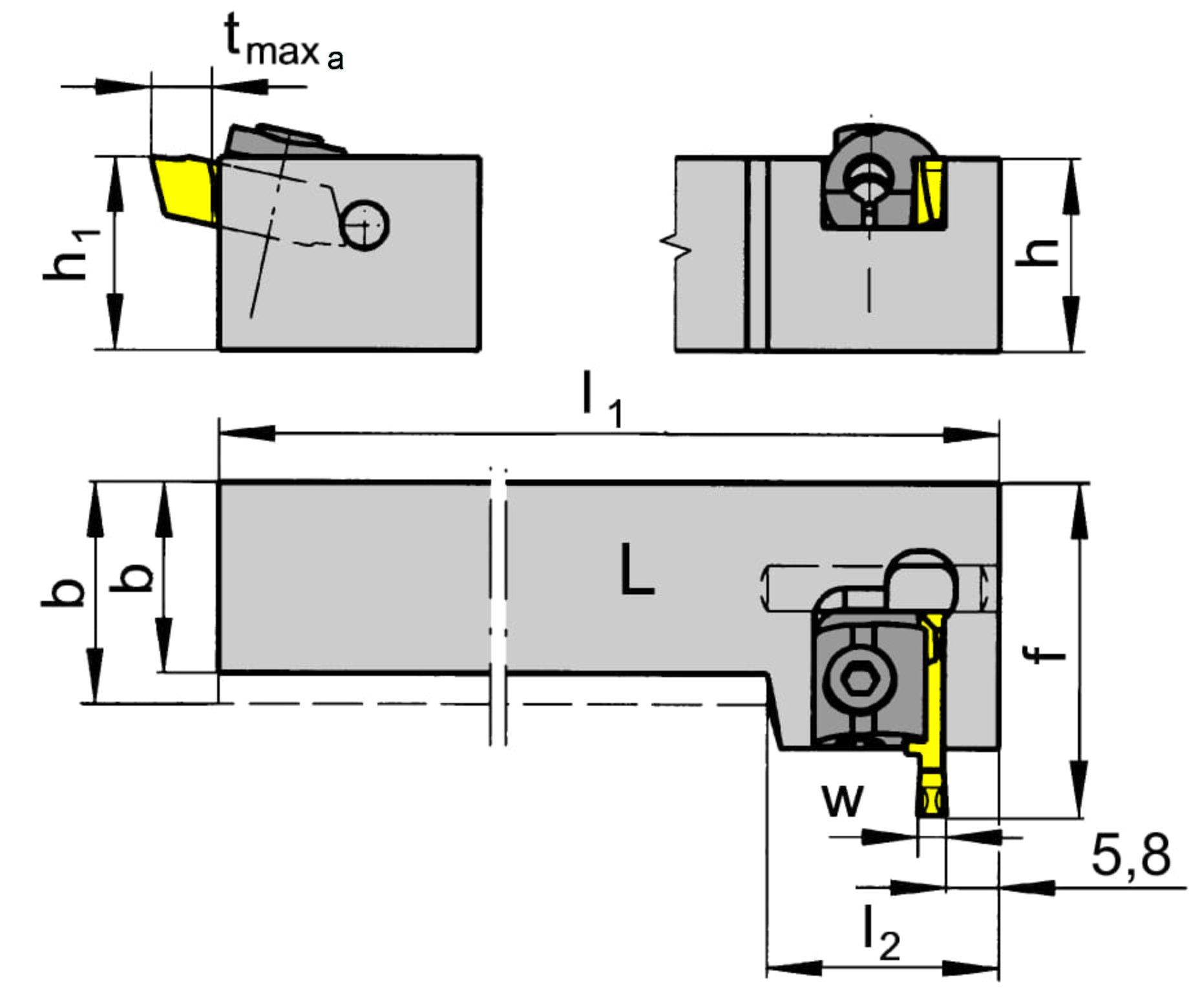

Total length (l1)
150
mm
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
23105R;23105N
DIN_CCTWS
HORN-231050128R;HORN-231050128N
ISO_CCTWS
HORN231050128R$$$$$;HORN231050128N$$$$$
Head width bottom (l2)
35.5
mm
Clamping range minimum (Spannbereich)
4.1
mm
Peak height (h1)
25
mm
Minimum starting outside diameter (Da min)
40
mm
Maximum insertion depth (tmax a)
8
mm
Shank height (h)
25
mm
Adjustment dimension (f)
38.5
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R228252505.DXF | Download |
| R228_2525_05_20171121_210509738.STP | Download |
| Download all files | |
