R231.4030.32 TN35
Inserts
Part number R231403032TN35

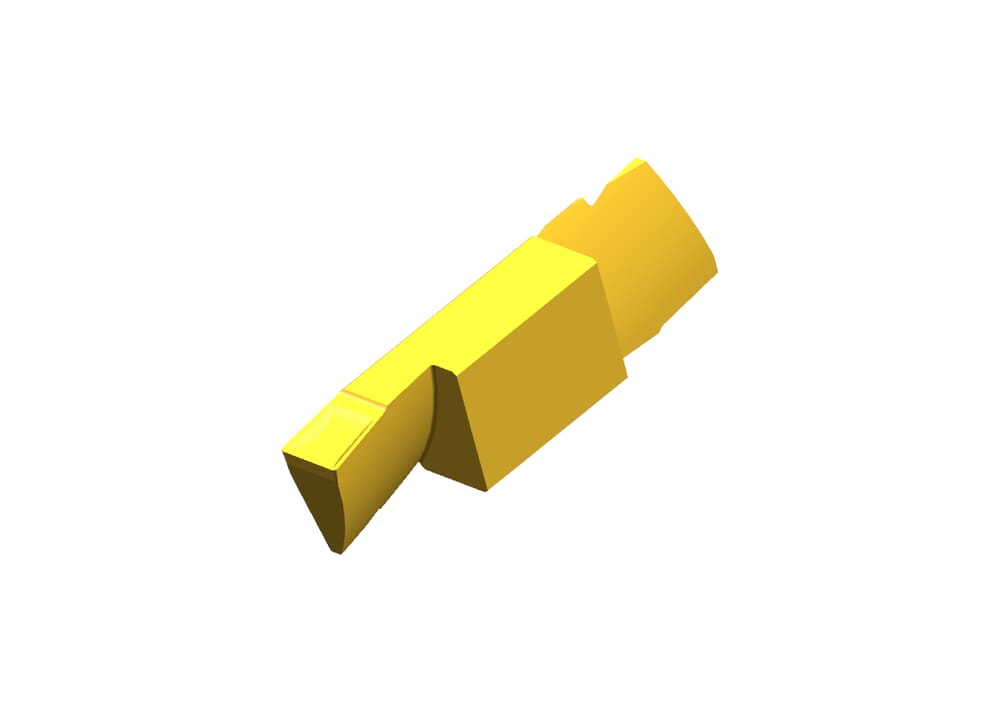

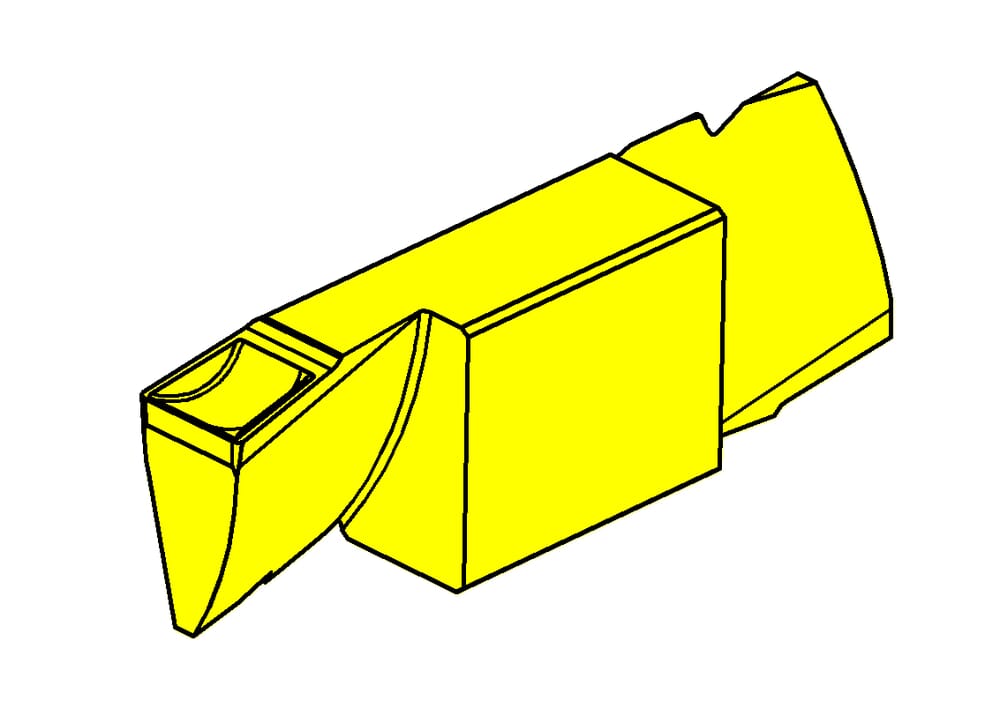

HORN Inserts R231.4030.32 TN35 for Turning
Please note:Technical instructions

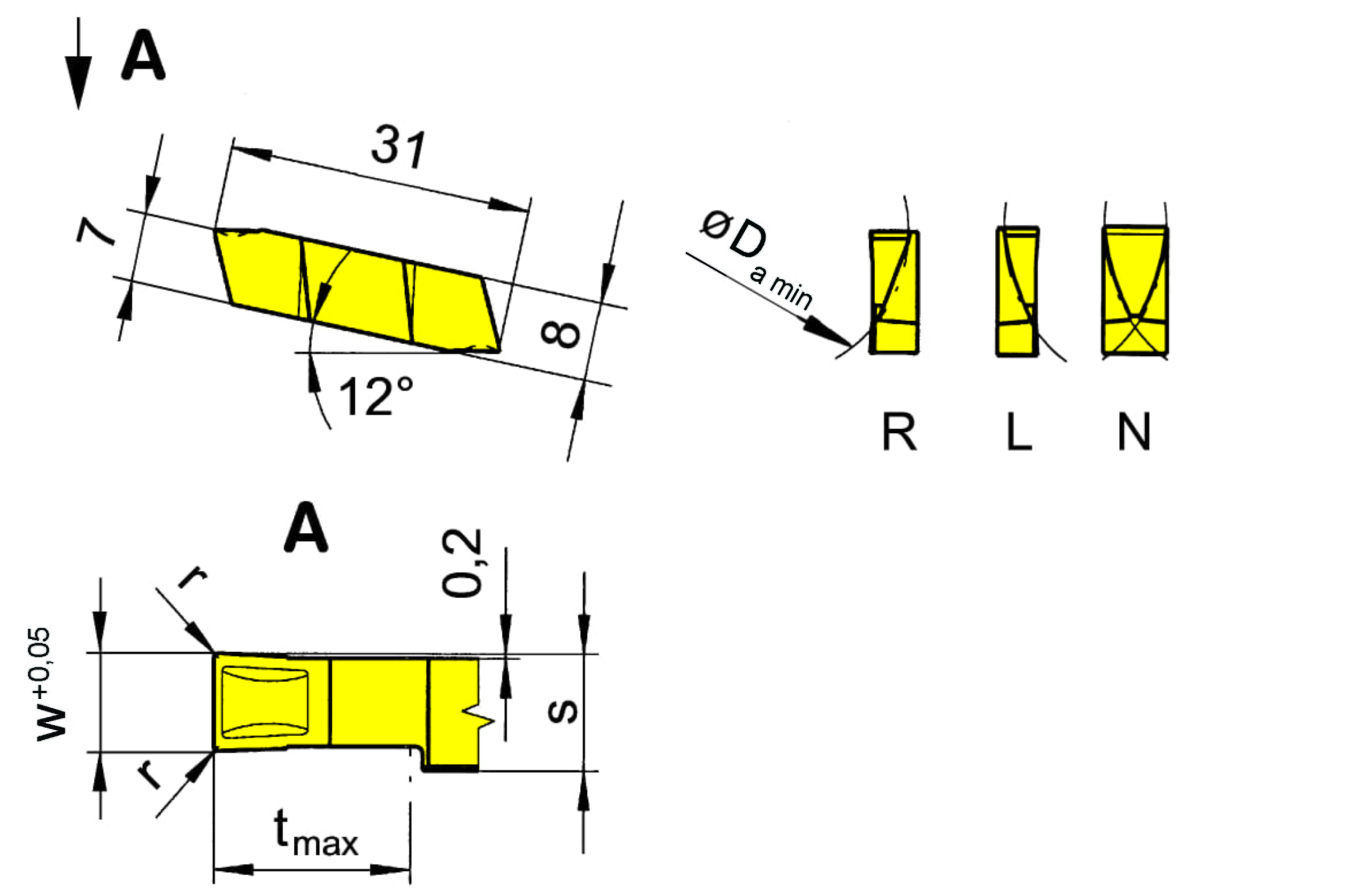

Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-03
Smallest axial bore diameter (Da min)
40
mm
ISO_SSC
HORN231040128R$$$$$
DIN_SSC
HORN-231040128R
Katalog_SSC
23104R
Plating seat size (Größe)
4
Width of groove (w)
3
mm
Cutting insert width (s)
3.8
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| R231403032_20210629_211908278.DXF | Download |
| R231403032_20230114_033155295.STP | Download |
| Download all files | |
