R233.0020.03
Toolholders
Part number R233002003

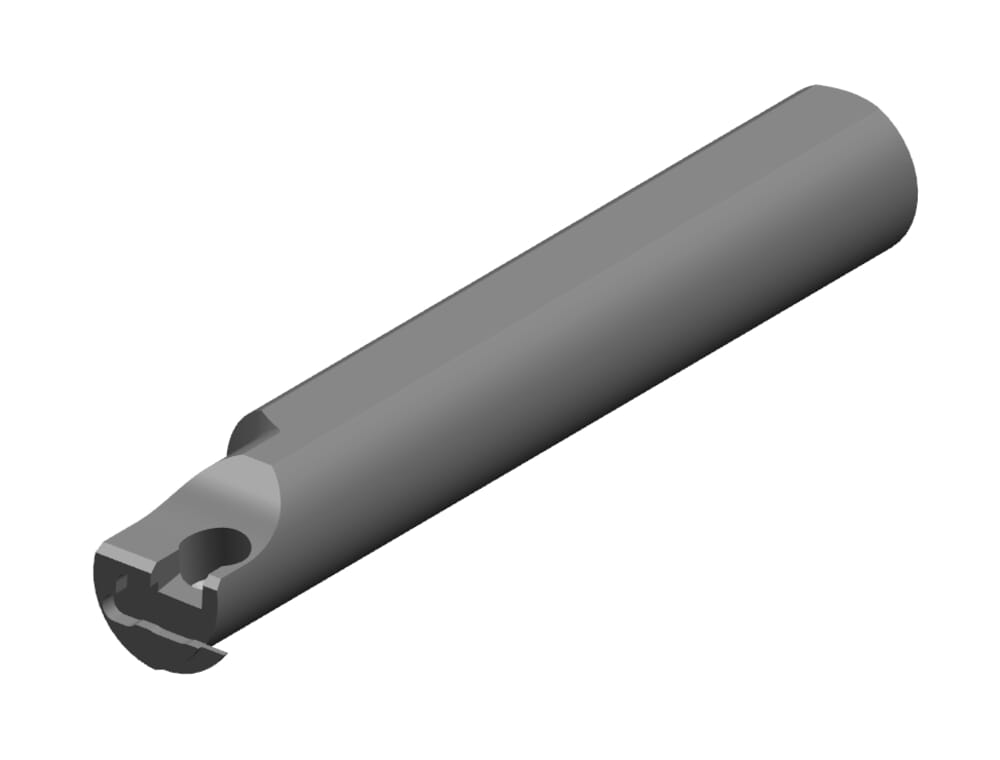

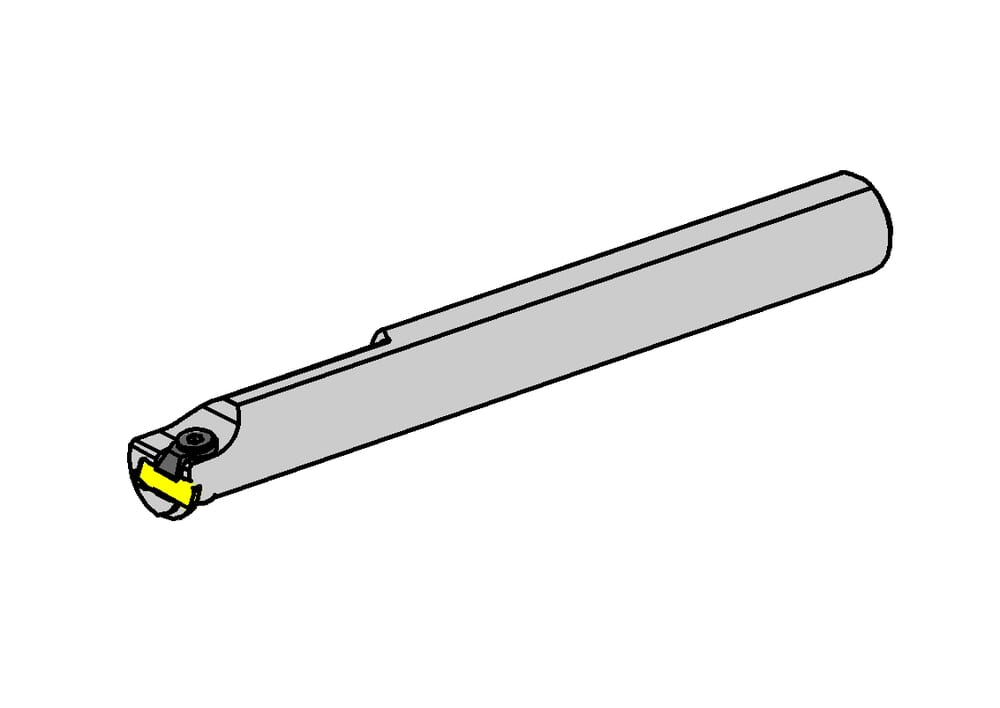

HORN Toolholders R233.0020.03 for Turning
Please note:Technical instructions

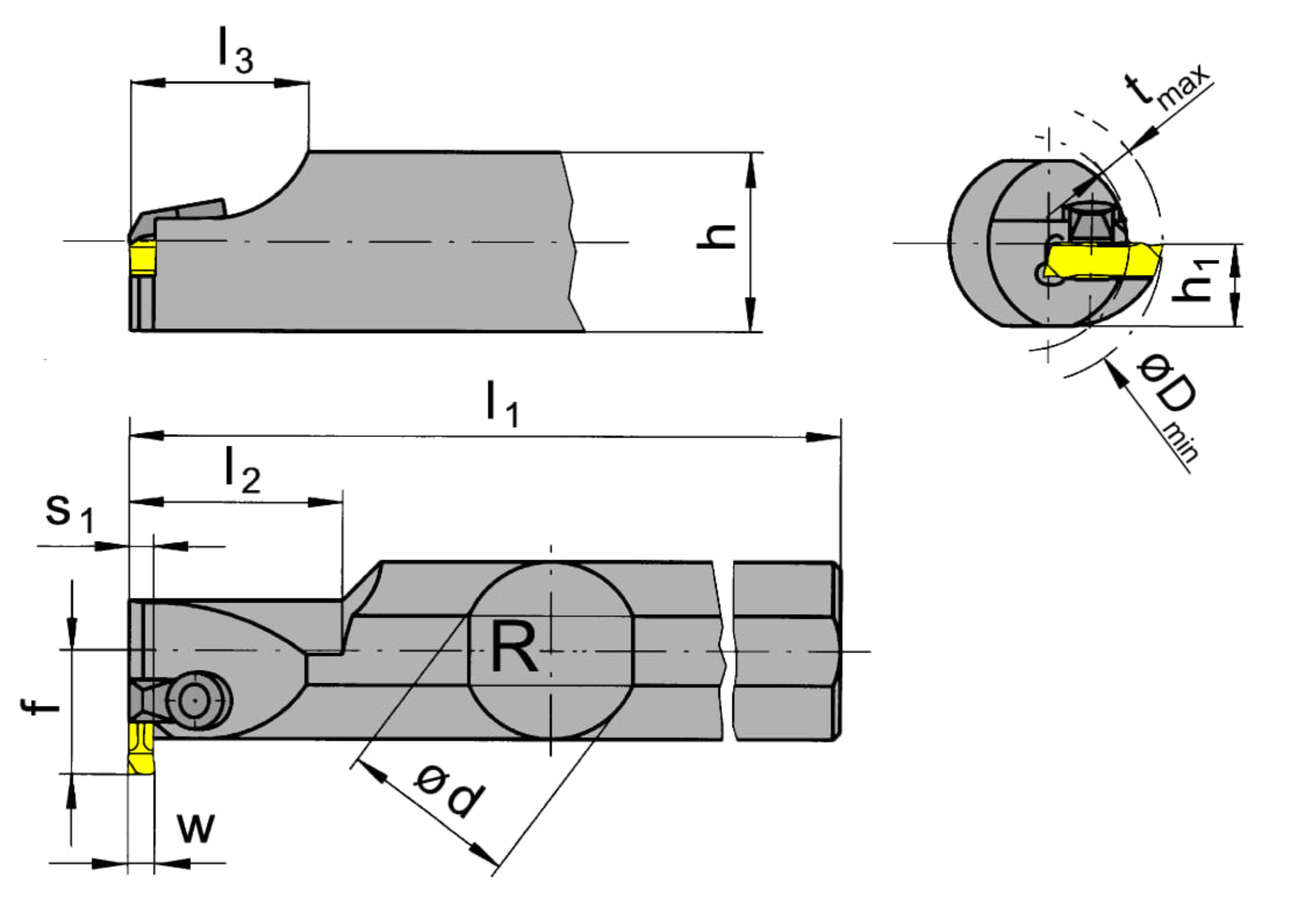

Peak height (h1)
9
mm
eclass-shortcut
21-18-10-05
Working length (l2)
25
mm
Plating seat size (Größe)
3
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002305
Katalog_CCTWS
21703
DIN_CCTWS
HORN-217030008N
ISO_CCTWS
HORN217030008N$$$$$
Clamping range maximum (Spannbereich)
3.7
mm
Clamping range minimum (Spannbereich)
2.7
mm
Shank, clamping diameter (d)
20
Insert width (s1)
3.5
mm
Minimum drilling diameter (Dmin)
20
mm
Maximum depth of groove (tmax)
2
mm
Total length (including cutting insert) (l1)
130
mm
Adjustment dimension from center (f)
13.3
mm
Outcropping, neck, working length (l3)
18
mm
Distance of clamping surface (s) (h)
18
mm
| Downloads | |
|---|---|
| R233002003.DXF | Download |
| R233_0020_03_20171121_180512093.STP | Download |
| Download all files | |
