R234.0020.04
Toolholders
Part number R234002004

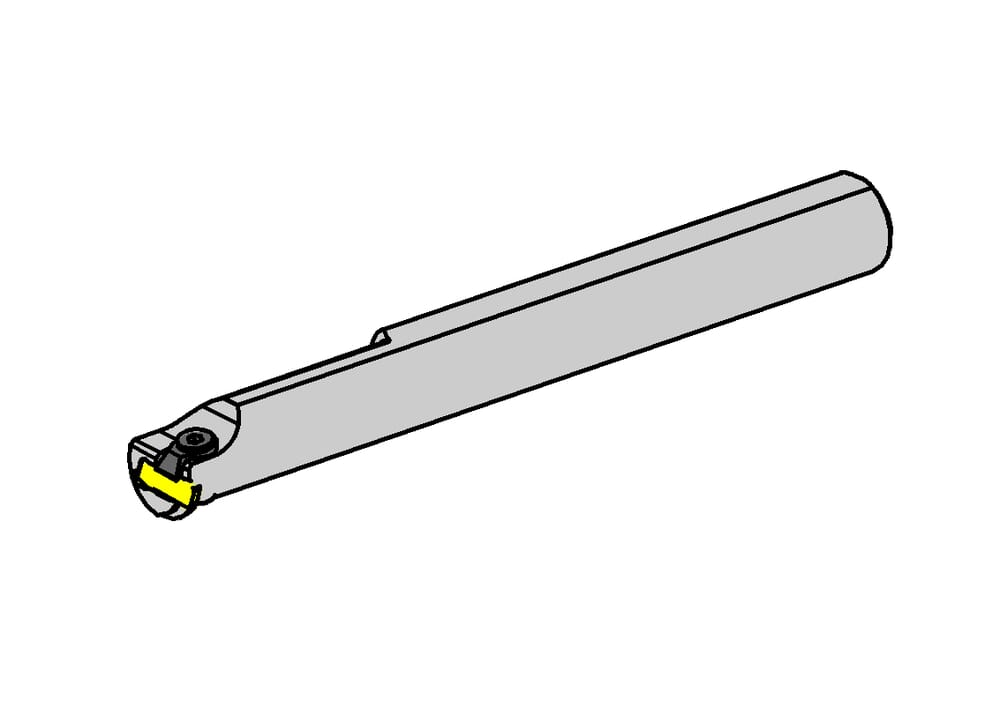

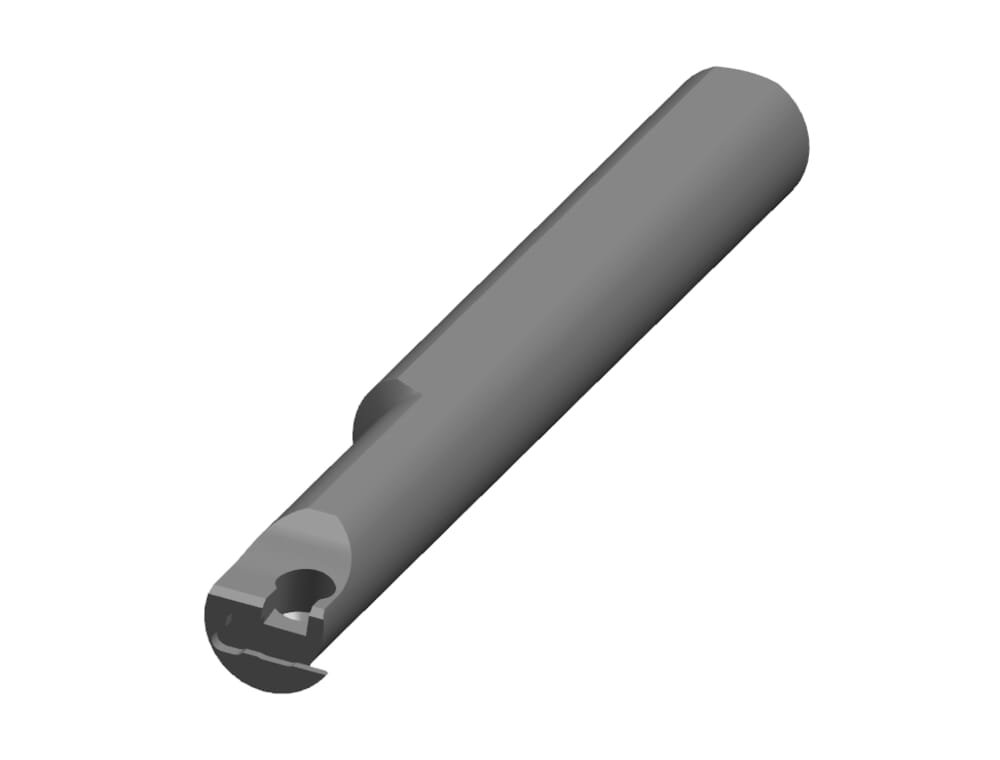

HORN Toolholders R234.0020.04 for Turning
Please note:Technical instructions

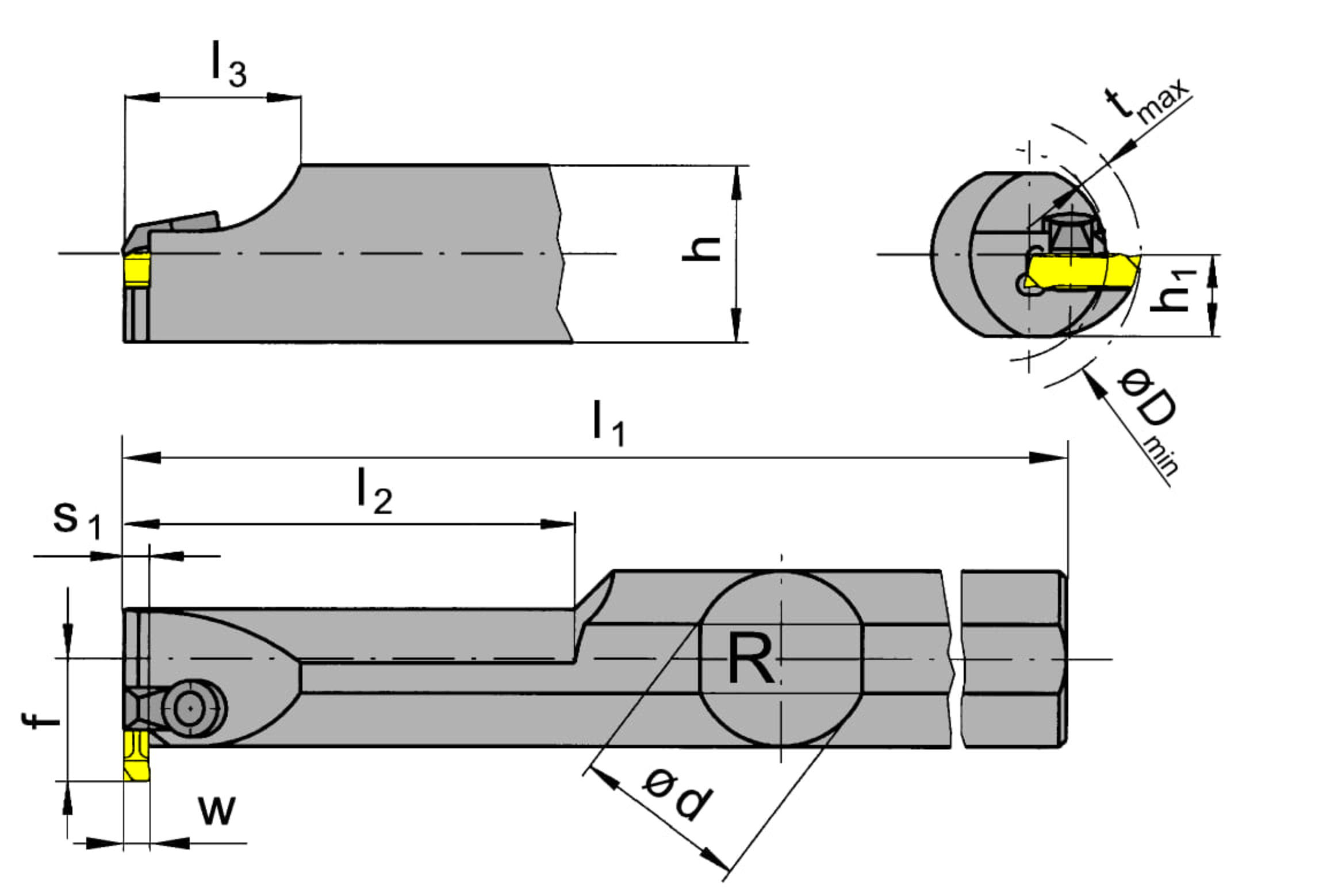

Peak height (h1)
9
mm
eclass-shortcut
21-18-10-05
Working length (l2)
60
mm
Plating seat size (Größe)
4
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002305
Katalog_CCTWS
21704
DIN_CCTWS
HORN-217040008N
ISO_CCTWS
HORN217040008N$$$$$
Clamping range maximum (Spannbereich)
5.3
mm
Clamping range minimum (Spannbereich)
3.7
mm
Shank, clamping diameter (d)
20
Insert width (s1)
5.2
mm
Minimum drilling diameter (Dmin)
20
mm
Maximum depth of groove (tmax)
3
mm
Total length (including cutting insert) (l1)
180
mm
Adjustment dimension from center (f)
13.3
mm
Outcropping, neck, working length (l3)
18
mm
Distance of clamping surface (s) (h)
18
mm
| Downloads | |
|---|---|
| R234002004.DXF | Download |
| R234_0020_04_20171121_214056684.STP | Download |
| Download all files | |
