R240.1010.01
Toolholders
Part number R240101001

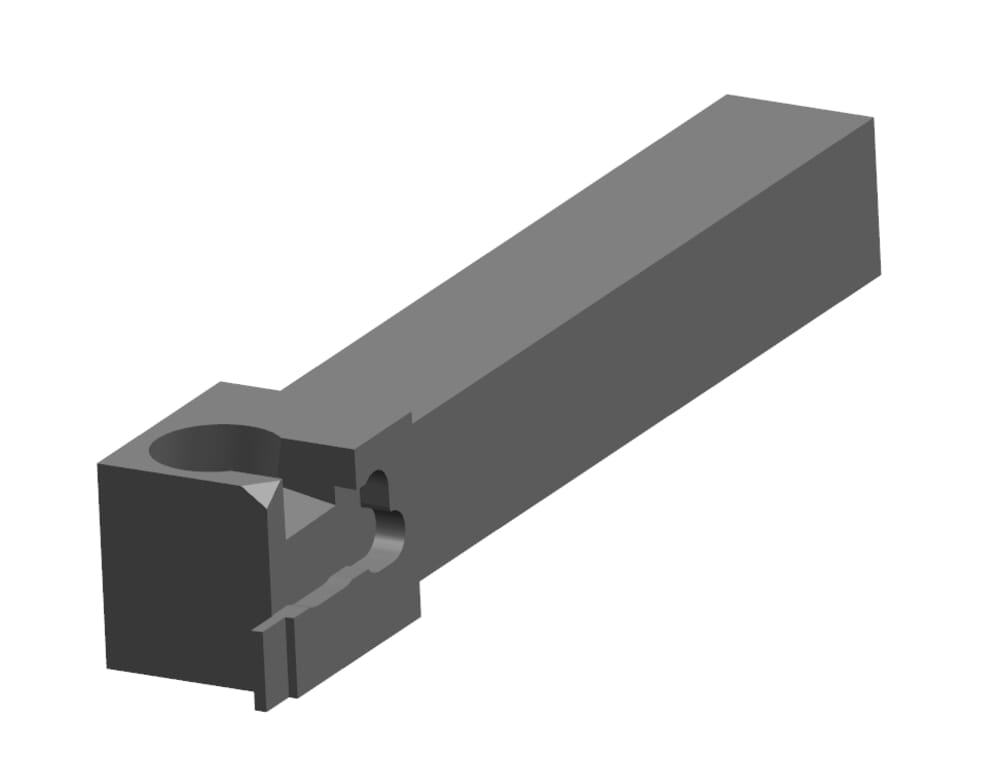

HORN Toolholders R240.1010.01 for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
0.5
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
1
ISO_CCTMS
VKT01A1010$$$$
DIN_CCTMS
VKT10100105
Katalog_CCTWS
21701
DIN_CCTWS
HORN-217010008N
ISO_CCTWS
HORN217010008N$$$$$
Adjustment dimension (formula) (f)
f1+w-a1
Clamping range maximum (Spannbereich)
1.7
mm
Peak height (h1)
10
mm
Maximum insertion depth (tmax)
4
mm
Head width (b1)
13
mm
Shank height (h)
10
mm
Total length (including cutting insert) (l1)
80
mm
Adjustment dimension (f1)
11.5
mm
Shank width (b)
10
mm
| Downloads | |
|---|---|
| R240101001_20211124_114236576.DXF | Download |
| R240_1010_01_20171121_211730445.STP | Download |
| Download all files | |
