R240.2525.04
Toolholders
Part number R240252504

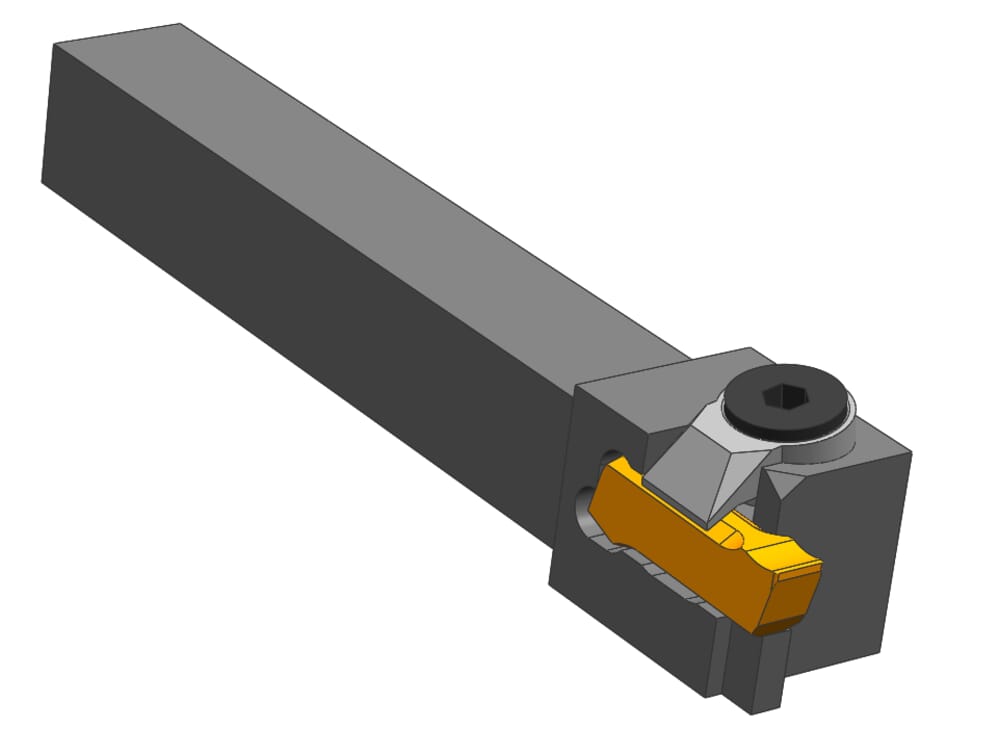

HORN Toolholders R240.2525.04 for Turning
Please note:Technical instructions
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
21704
DIN_CCTWS
HORN-217040008N
ISO_CCTWS
HORN217040008N$$$$$
Adjustment dimension (formula) (f)
f1+w-a1
Clamping range maximum (Spannbereich)
5.3
mm
Clamping range minimum (Spannbereich)
3.7
mm
eclass-shortcut
21-18-20-11
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
4
mm
Head width (b1)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f1)
19.8
mm
Shank width (b)
25
mm
