R257.2222.09
Toolholders
Part number R257222209

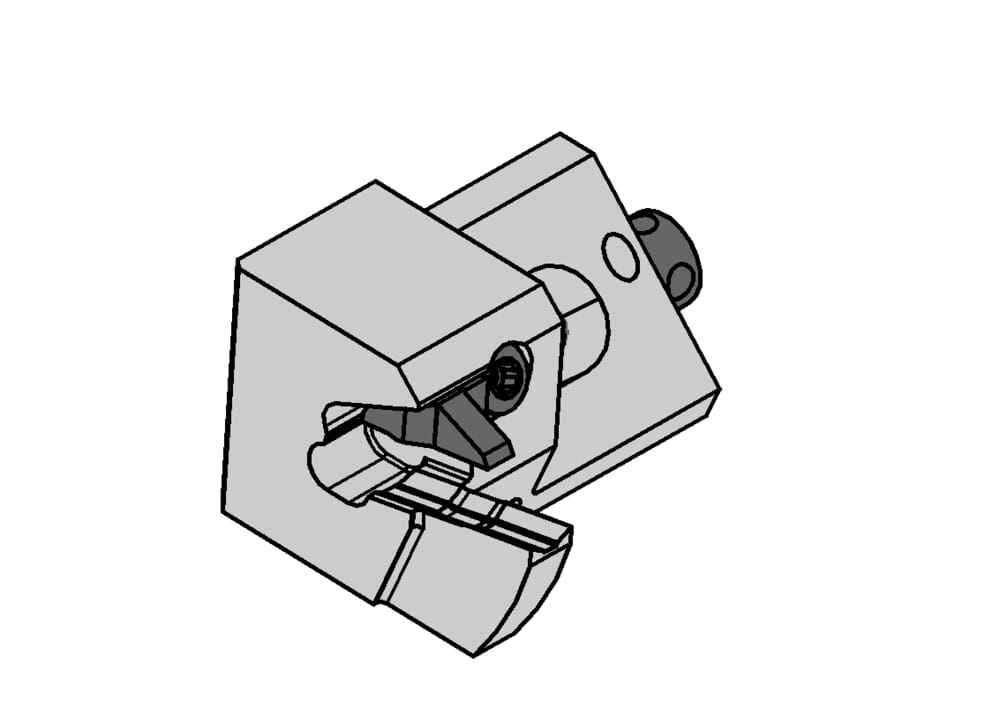

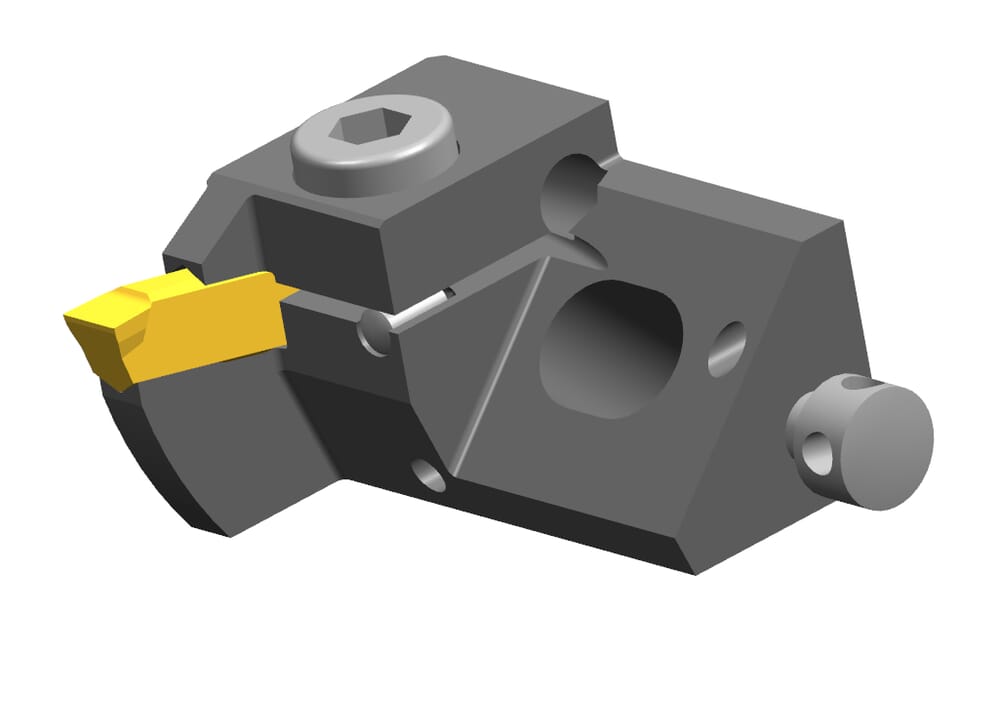

HORN Toolholders R257.2222.09 for Turning
Please note:Technical instructions

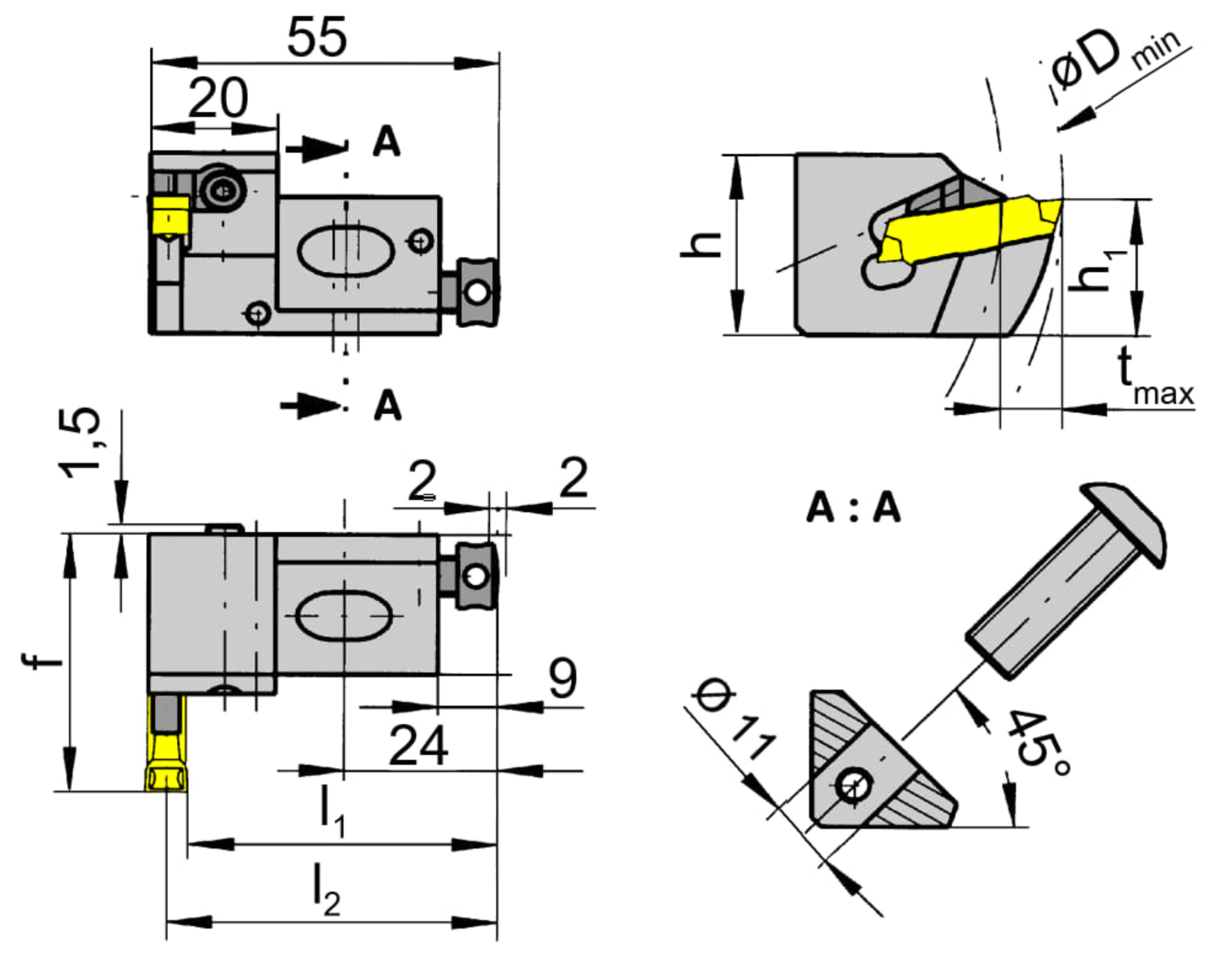

Adjustment dimension (f)
42
mm
Adjustment dimension cutting center (l2)
50.2
mm
Shank height (h)
29
mm
Peak height (h1)
22
mm
Clamping range minimum (Spannbereich)
8.1
mm
Clamping range maximum (Spannbereich)
10.4
mm
Adjustment dimension (formula) (l1)
l2-w/2
Plating seat size (Größe)
9
eclass-shortcut
21-18-10-06
| Downloads | |
|---|---|
| R257222209.DXF | Download |
| R257_2222_09_20171121_225929319.STP | Download |
| Download all files | |
