R309.1616.01

Toolholder

Part number R309161601

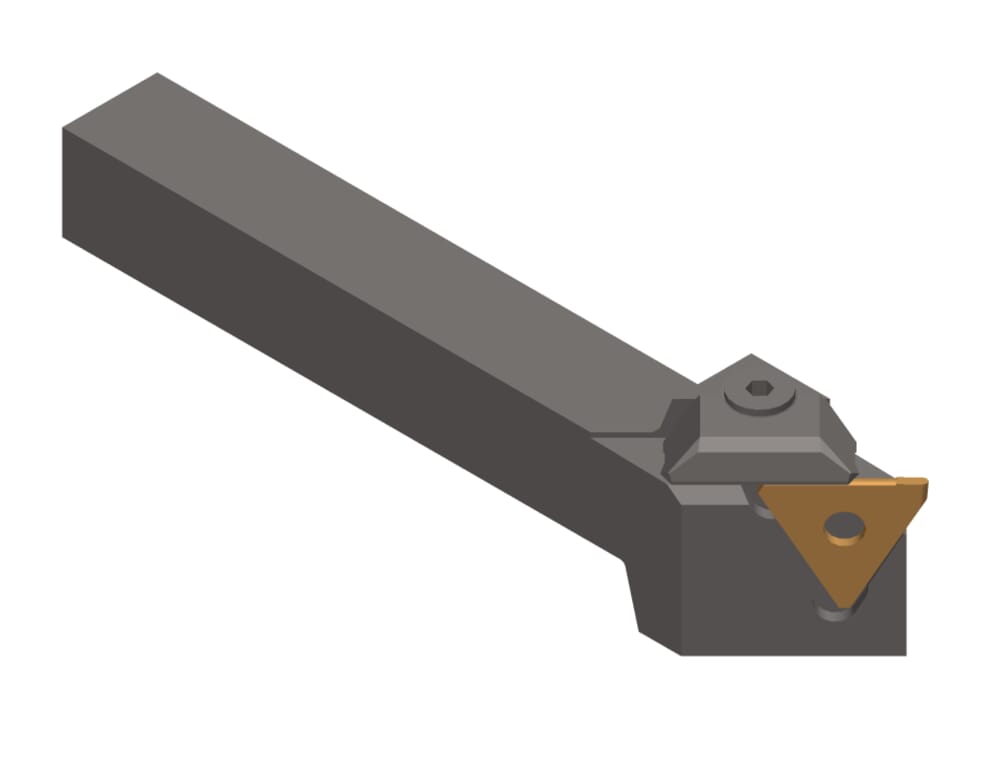

HORN Toolholder R309.1616.01 for Turning

Clamping range maximum (Spannbereich)

1.9 mm

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A1616$$$$

DIN_CCTMS

VKT16160105

Katalog_CCTWS

31201N;31201R;31201L

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$

Head length (including cutting edge) (l2)

30 mm

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

25 mm

Insert width (s1)

1.5 mm

Shank height (h)

16 mm

Total length (including cutting insert) (l1)

125 mm

Adjustment dimension (f)

21.5 mm

Shank width (b)

16 mm
