R309.2020.04

Toolholders

Part number R309202004

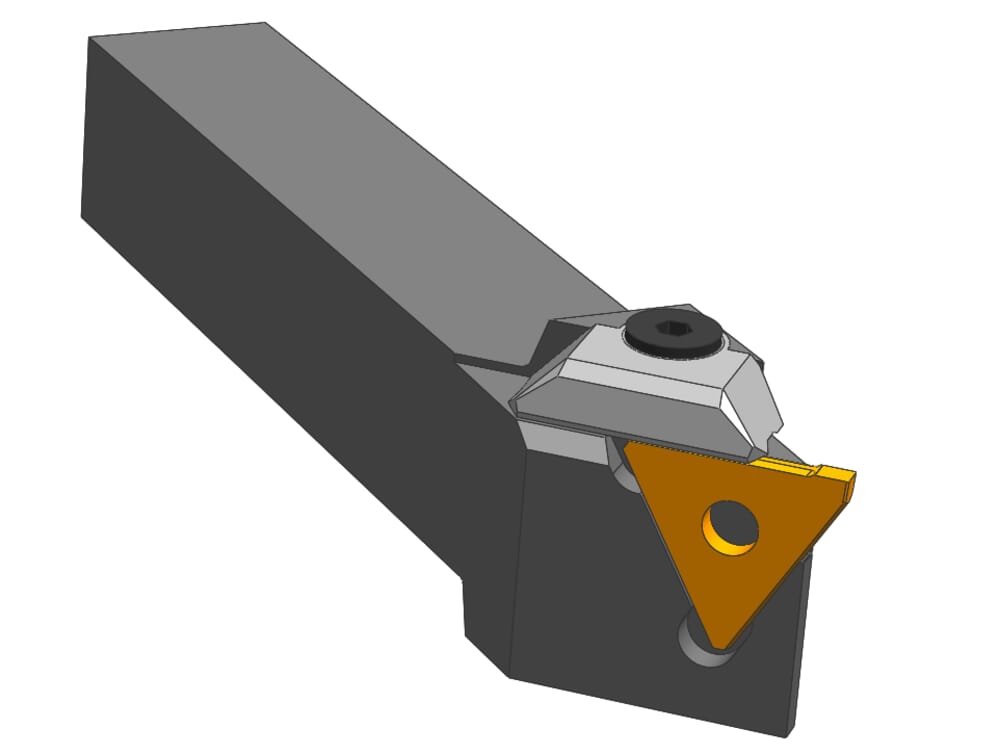

HORN Toolholders R309.2020.04 for Turning

Clamping range maximum (Spannbereich)

5.3 mm

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A2020$$$$

DIN_CCTMS

VKT20200105

Katalog_CCTWS

31204N;31204R;31204L

DIN_CCTWS

HORN-31204000N;HORN-31204000R;HORN-31204000L

ISO_CCTWS

HORN-31204$000N$$$$$;HORN-31204$000R$$$$$;HORN-31204$000L$$$$$

Head length (including cutting edge) (l2)

30 mm

Clamping range minimum (Spannbereich)

3.9 mm

Peak height (h1)

25 mm

Insert width (s1)

5.2 mm

Shank height (h)

20 mm

Total length (including cutting insert) (l1)

125 mm

Adjustment dimension (f)

21.5 mm

Shank width (b)

20 mm
