R309.2525.04

Toolholders

Part number R309252504

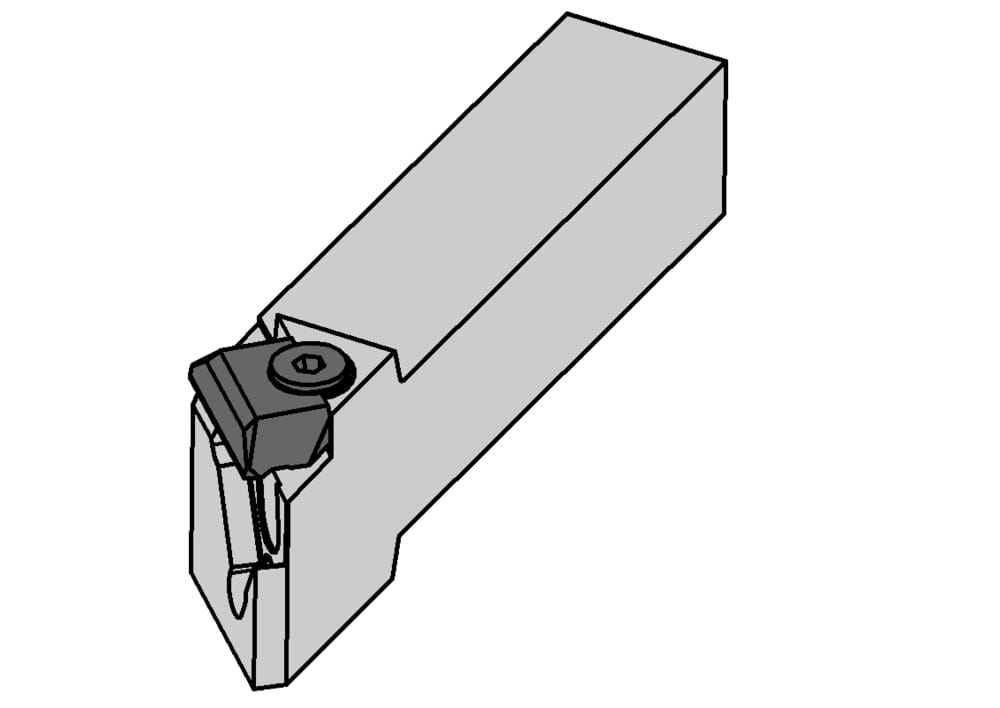

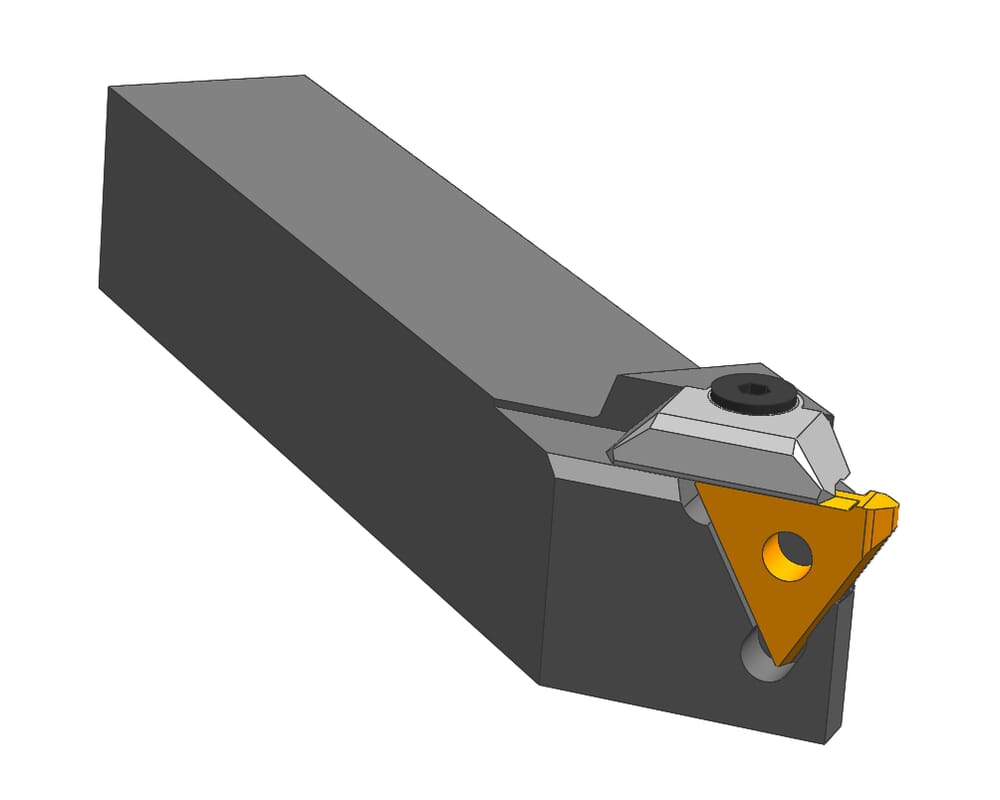

HORN Toolholders R309.2525.04 for Turning

Clamping range minimum (Spannbereich)

3.9 mm

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A2020$$$$

DIN_CCTMS

VKT25250105

Katalog_CCTWS

31204N;31204R;31204L

DIN_CCTWS

HORN-31204000N;HORN-31204000R;HORN-31204000L

ISO_CCTWS

HORN-31204$000N$$$$$;HORN-31204$000R$$$$$;HORN-31204$000L$$$$$

Clamping range maximum (Spannbereich)

5.3 mm

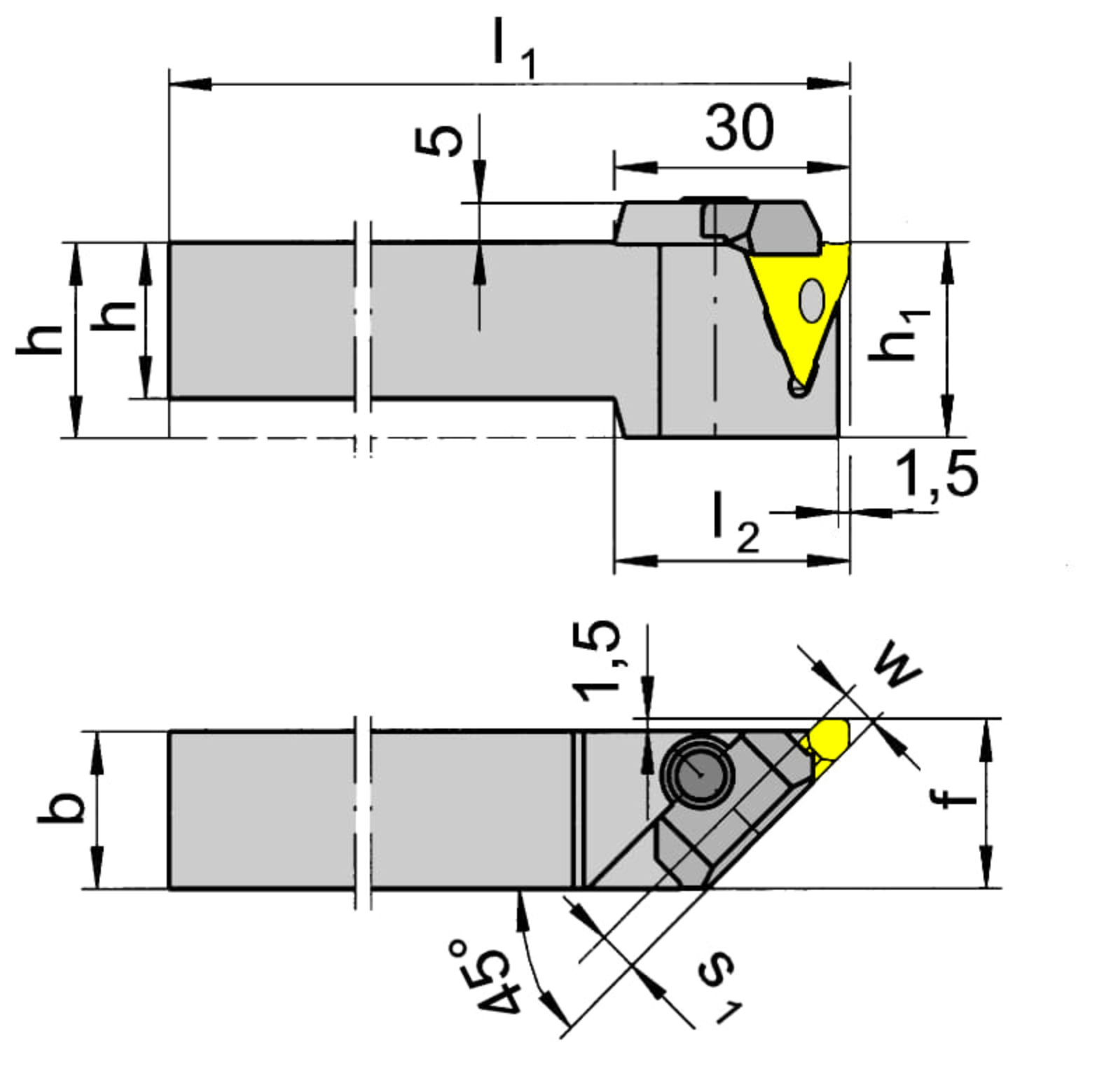

Peak height (h1)

25 mm

Insert width (s1)

5.2 mm

Shank height (h)

25 mm

Total length (including cutting insert) (l1)

150 mm

Adjustment dimension (f)

26.5 mm

Shank width (b)

25 mm
