R312.0512.M0 K10
Inserts
Part number R3120512M0K10

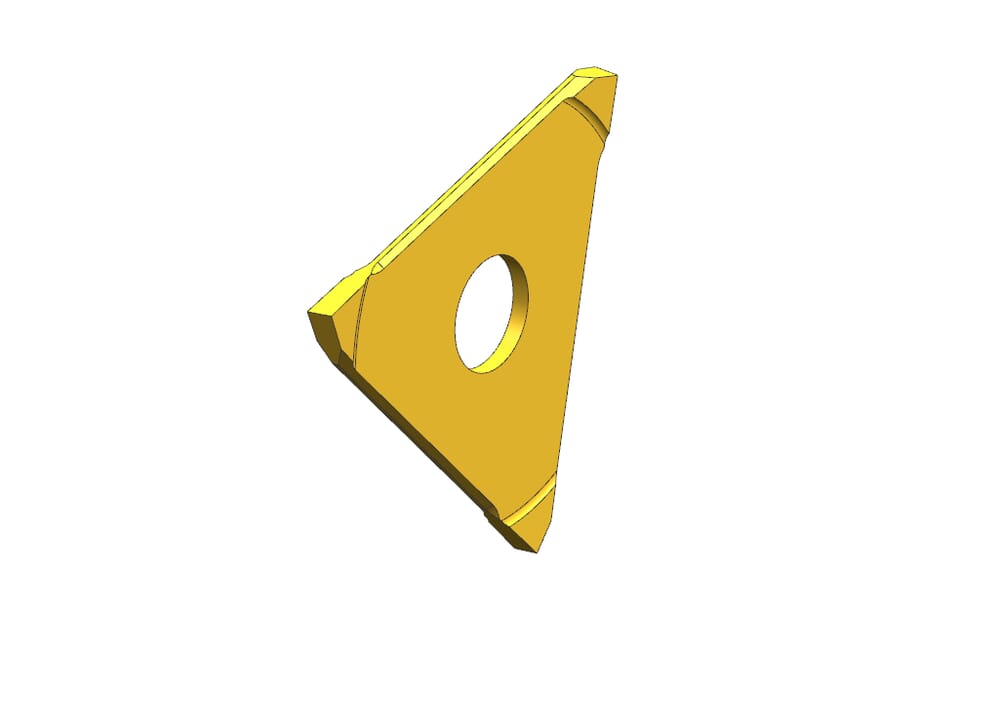

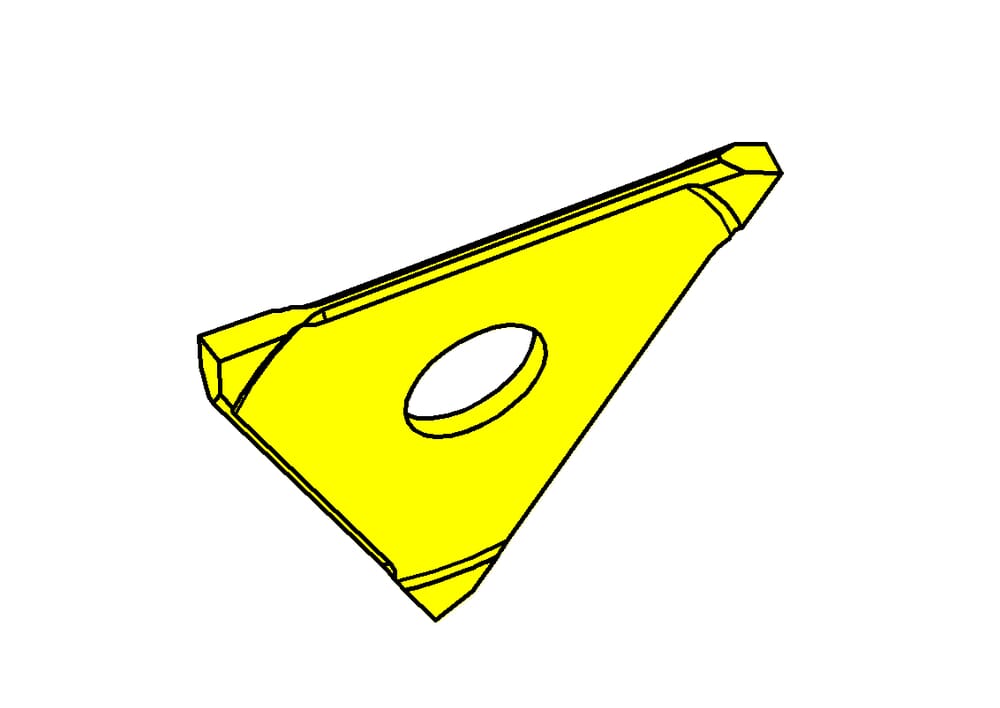

HORN Inserts R312.0512.M0 K10 for Turning
Please note:Technical instructions

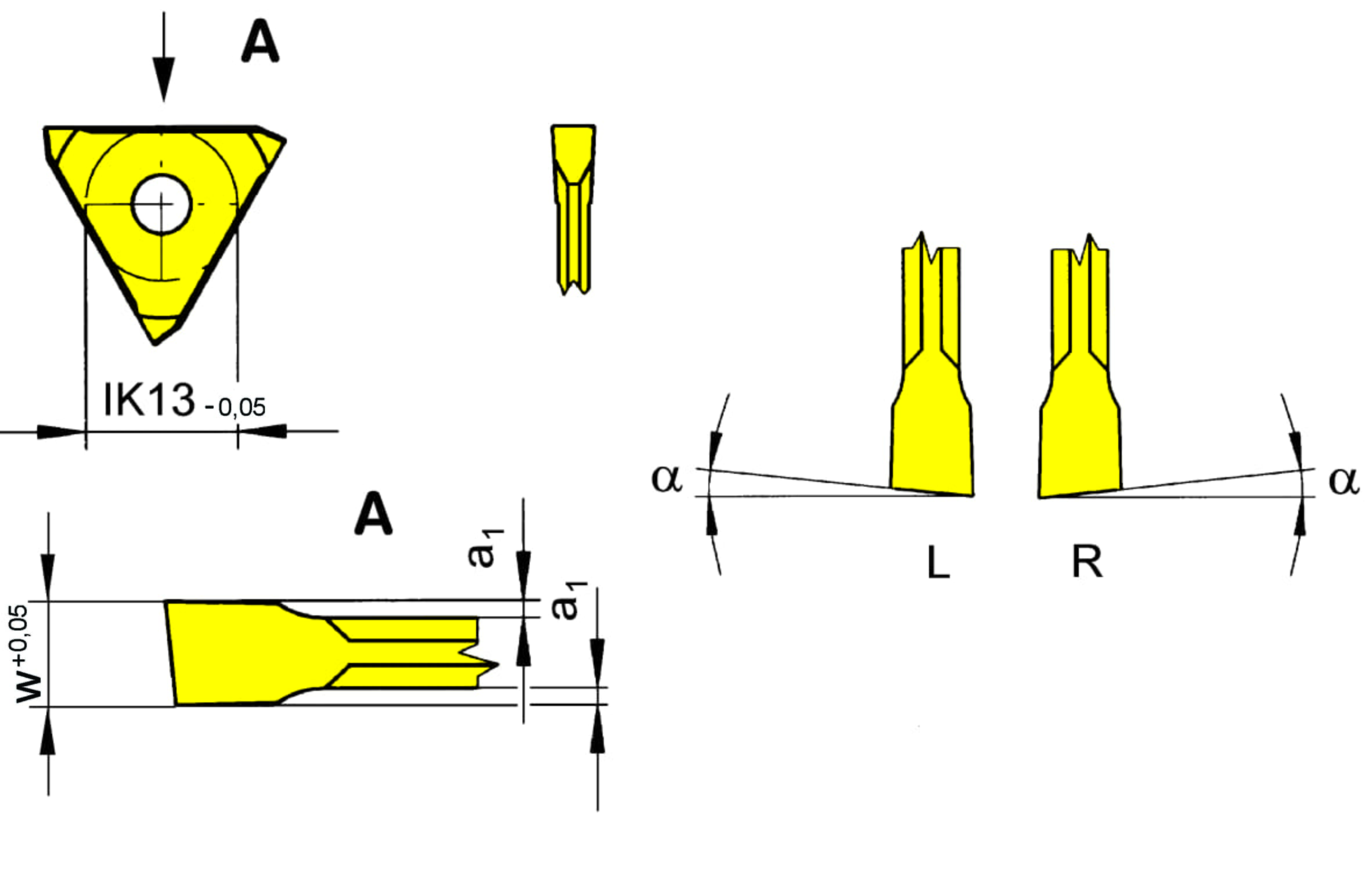

Cancellation (a1)
0.2
mm
Parting-off chamfer (α)
5
°
Maximum depth of groove (tmax)
8
mm
ISO_SSC
HORN-31208$000N$$$$$
DIN_SSC
HORN-31208000N
Katalog_SSC
31208N
Plating seat size (Größe)
1
Width of groove (w)
1.2
mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| R3120512M0_20210628_211749401.DXF | Download |
| R3120512M0_20230114_044140396.STP | Download |
| Download all files | |
