R315.0200.02 TC92
Inserts
Part number R315020002TC92

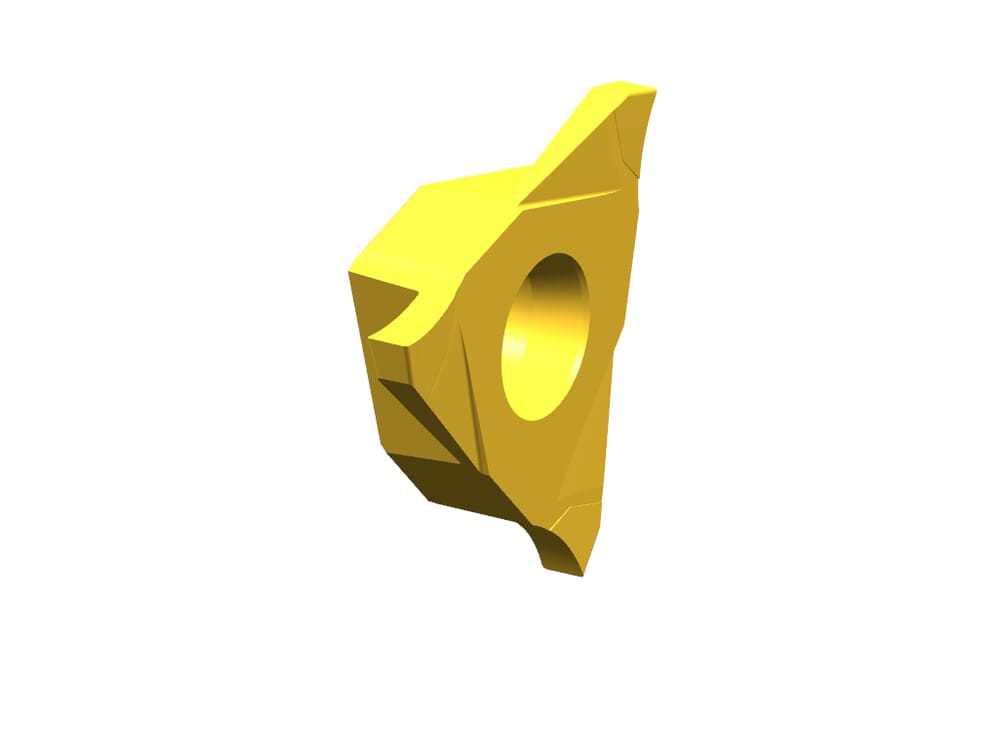

HORN Inserts R315.0200.02 TC92 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3
mm
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
2
mm
Cutting insert width (s)
5.4
mm
Corner radius (r)
0.2
mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| R315020002_20210628_233325274.DXF | Download |
| R315_0200_02_20171121_233111929.STP | Download |
| Download all files | |
