R315.3060.01 TN35
Inserts
Part number R315306001TN35
HORN Inserts R315.3060.01 TN35 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-31505051R
eclass-shortcut
21-18-20-01

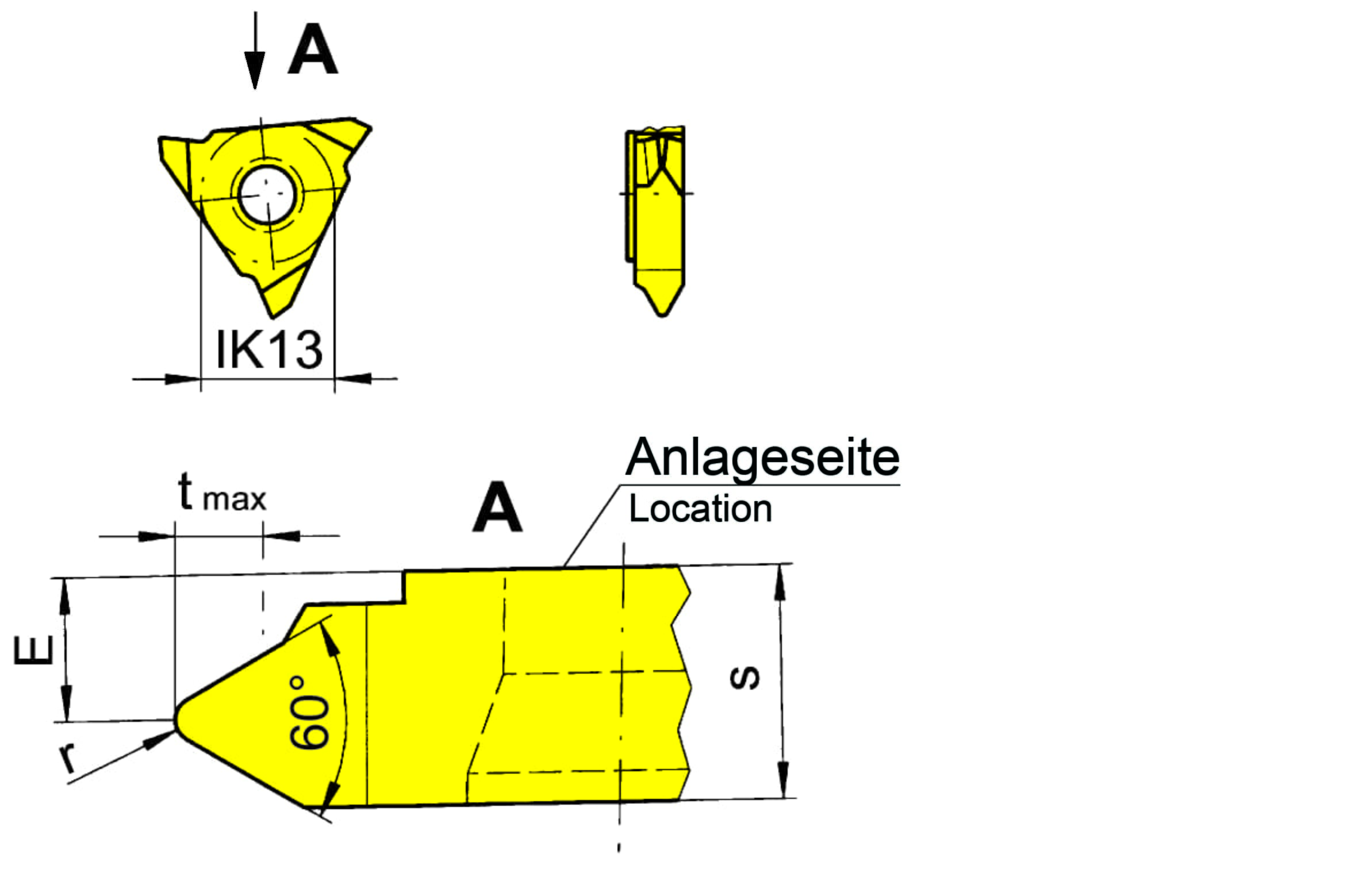

Maximum pitch (Pmax)
6
mm
Pitch (P)
3
mm
Cutting insert height, Cutting insert thickness (s)
6.1
mm
Setting length (E)
3
mm
Plating seat size (Größe)
5
Katalog_SSC
31505R
ISO_SSC
HORN31505$051R$$$$$
Profile, thread depth (tmax)
4.15
mm
Top radius (r)
0.4
mm
| Downloads | |
|---|---|
| R315306001.DXF | Download |
| R315306001_20240117_002957105.STP | Download |
| Download all files | |
