R356.1616.03
Toolholder
Part number R356161603

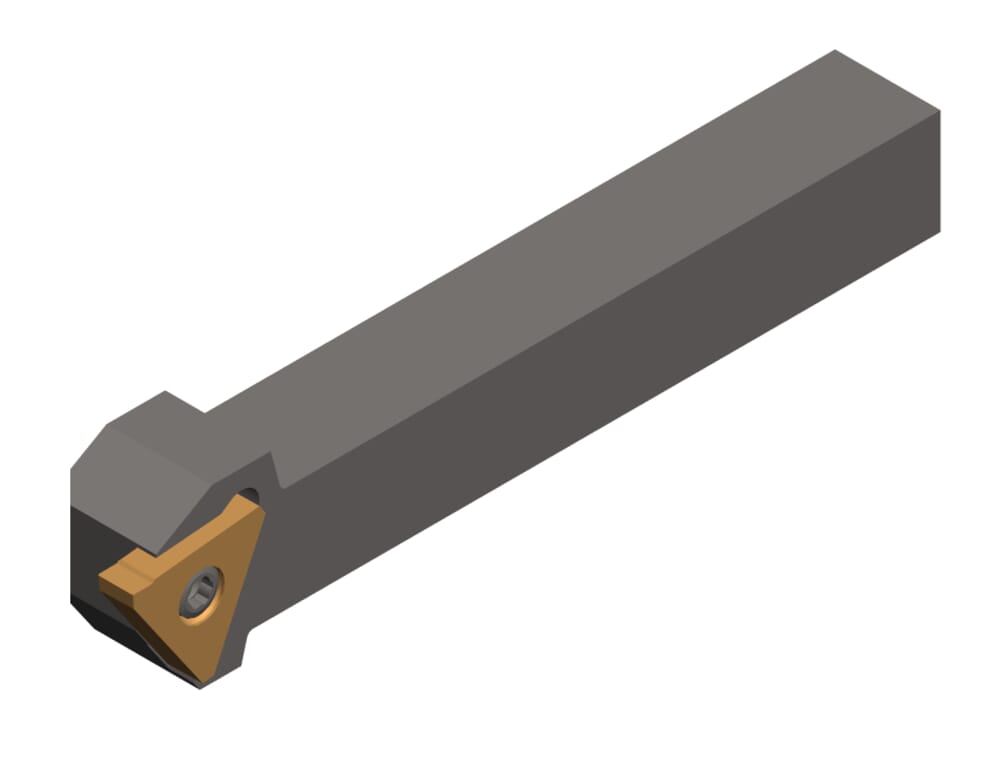

HORN Toolholder R356.1616.03 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$
Adjustment dimension locating face insert (f1)
13
mm
Peak height (h1)
20
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| R356161603_20210628_215549201.DXF | Download |
| R356_1616_03.STP | Download |
| Download all files | |
