R356.1616.05
grooving-toolholder
Part number R356161605

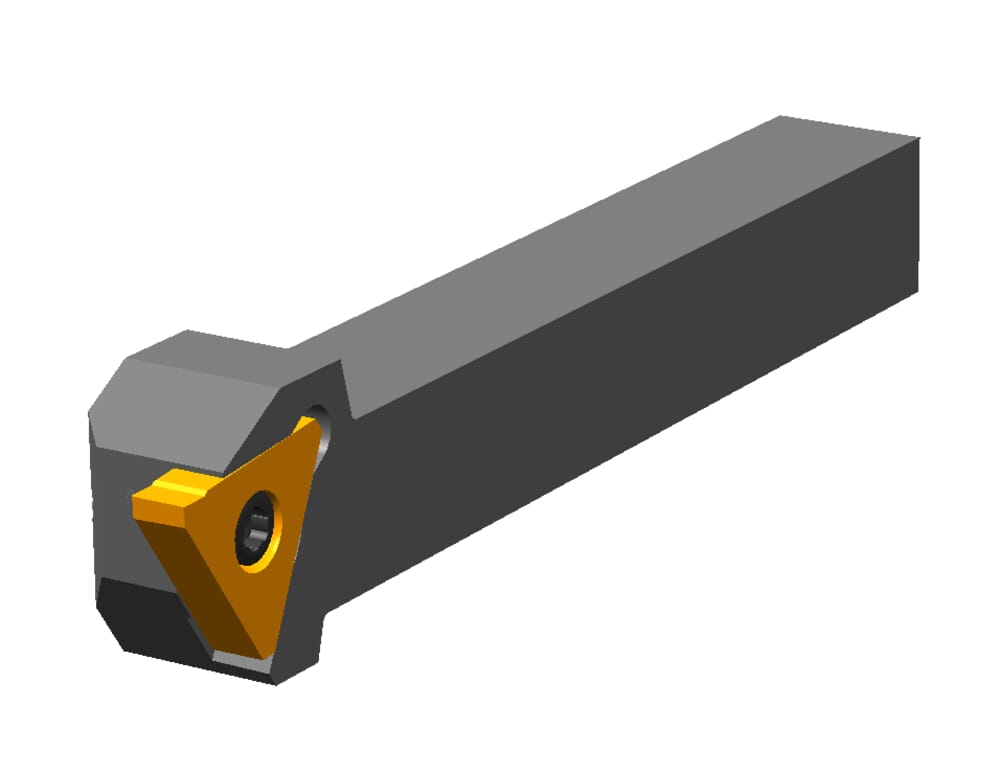

HORN grooving-toolholder R356.1616.05 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
31505R
DIN_CCTWS
HORN-31505051R
ISO_CCTWS
HORN31505$051R$$$$$
Adjustment dimension locating face insert (f1)
10.8
mm
Peak height (h1)
20
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| R356161605_20210628_215614468.DXF | Download |
| R356_1616_05.STP | Download |
| Download all files | |
