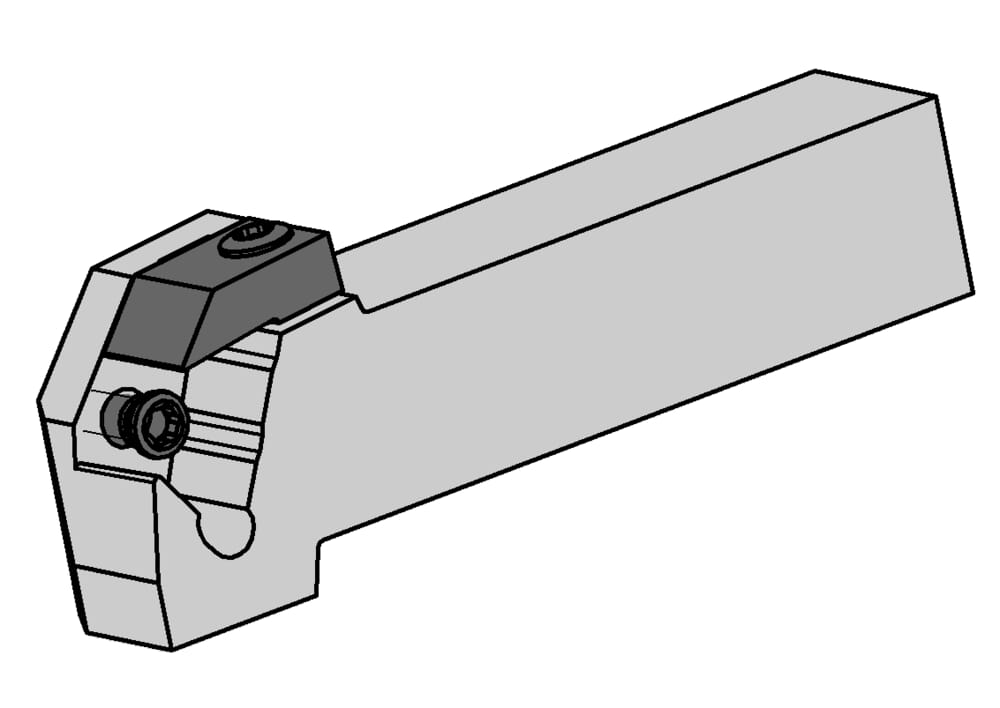

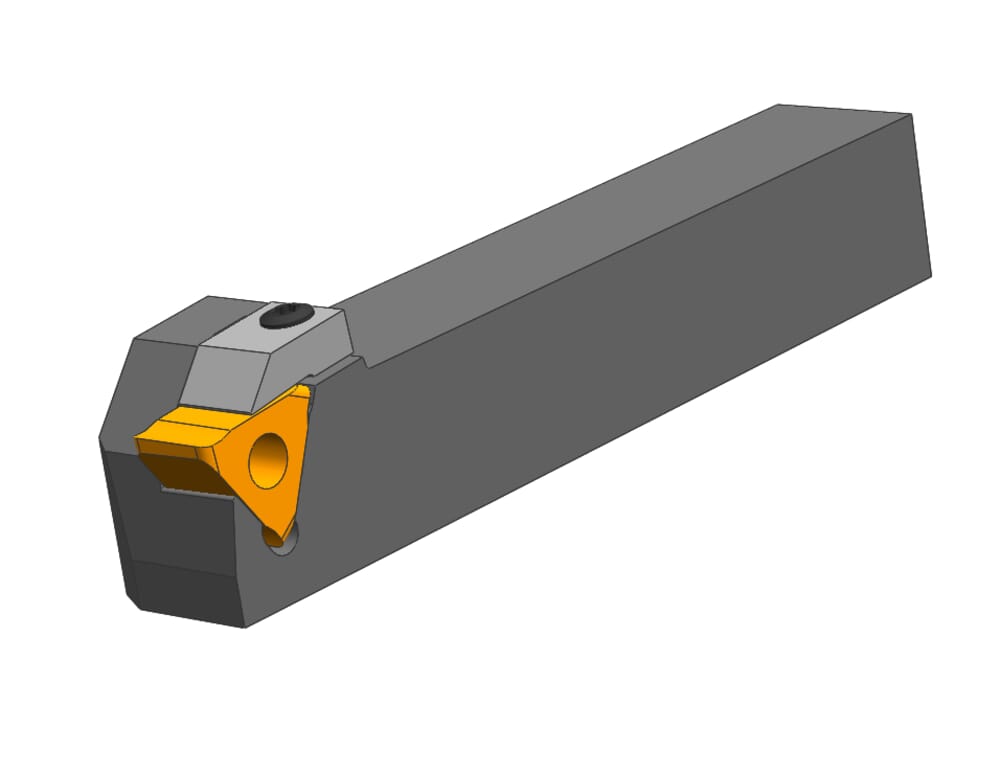

R356.2525.2.13
Toolholder
Part number R3562525213
HORN Toolholder R356.2525.2.13 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
13
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
31513R
DIN_CCTWS
HORN-31513051R
ISO_CCTWS
HORN31513$051R$$$$$

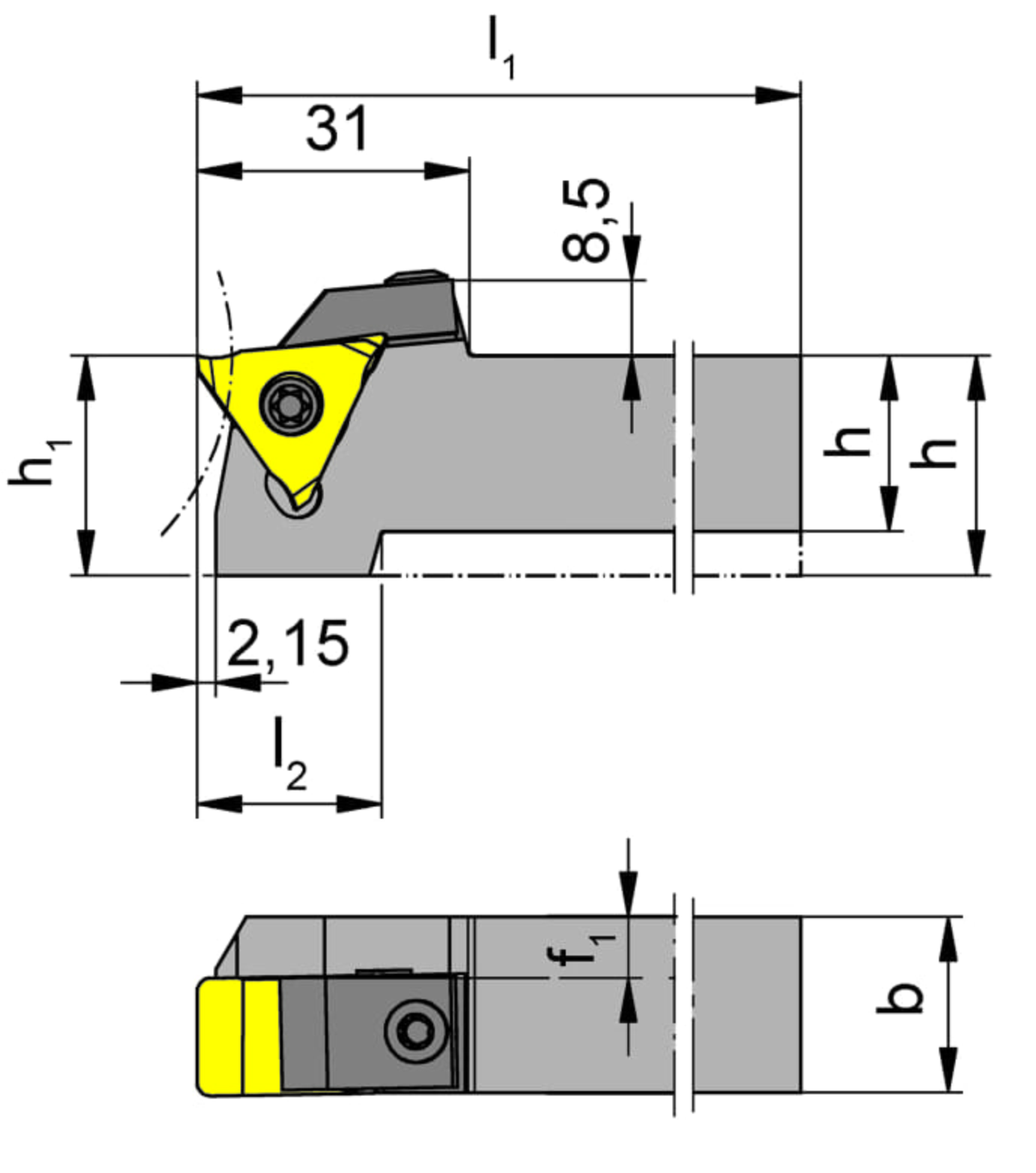

Adjustment dimension locating face insert (f1)
12
mm
Peak height (h1)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R3562525213_20211124_142533189.DXF | Download |
| R356_2525_2_13.STP | Download |
| Download all files | |
