R356.2525.S.03
Toolholder
Part number R3562525S03

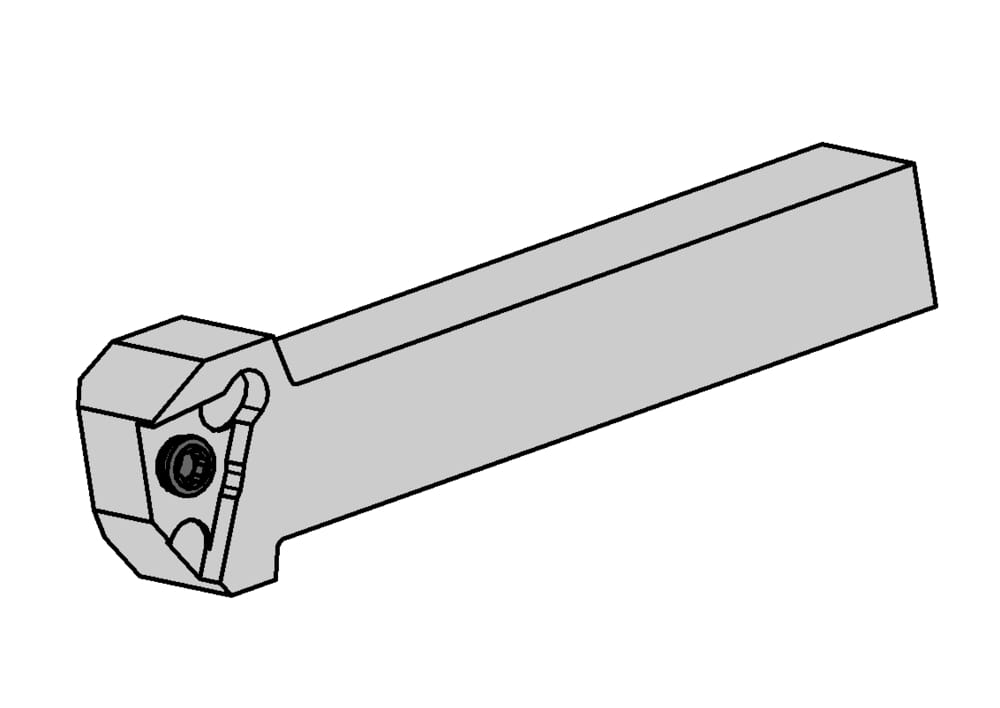

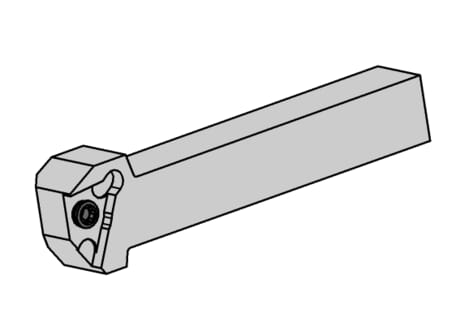

HORN Toolholder R356.2525.S.03 for Turning
Please note:Technical instructions

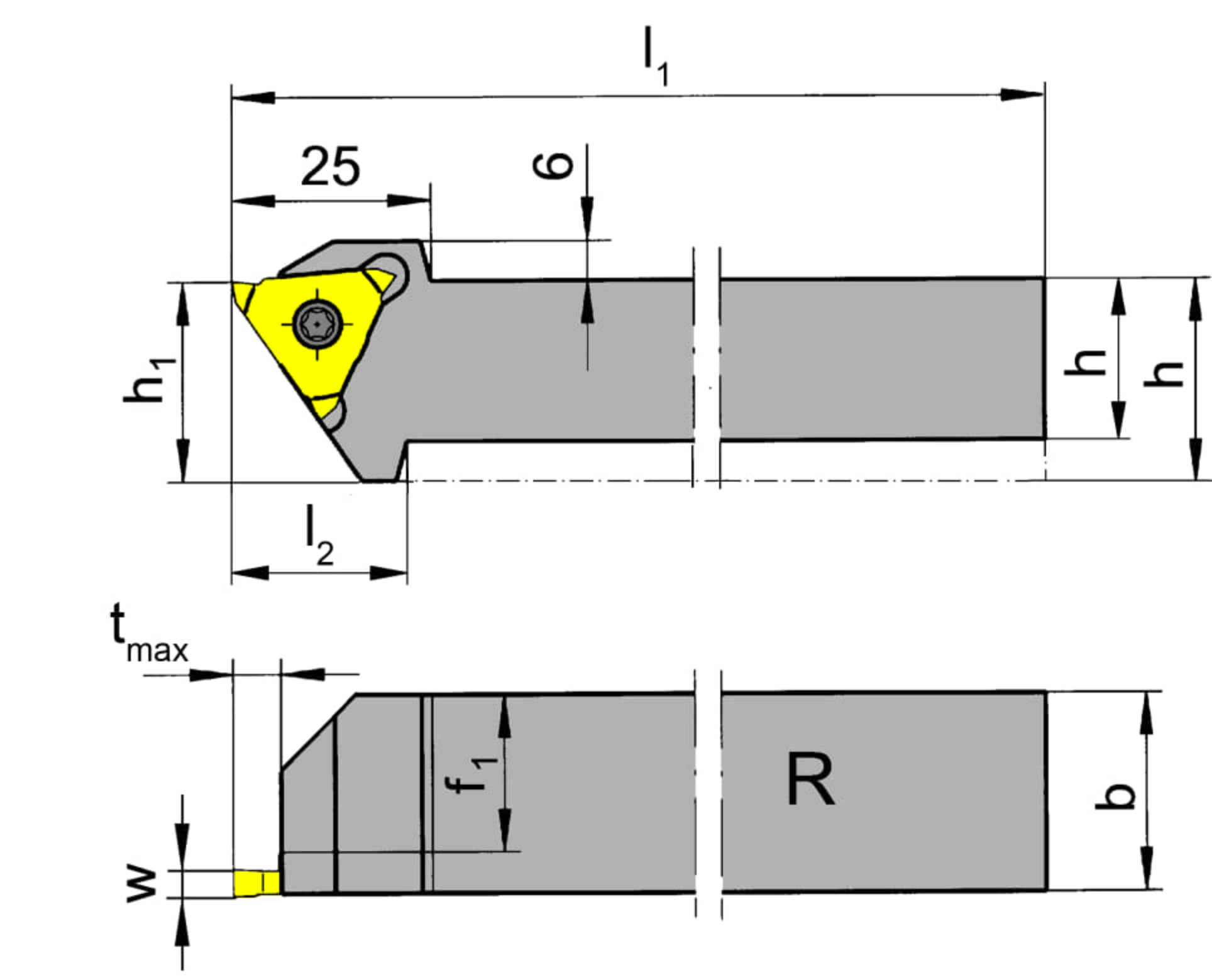

Head length top (including cutting edge) (l3)
25
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
S31503R
DIN_CCTWS
HORN-S31503051R
ISO_CCTWS
HORNS31503051R$$$$$
Adjustment dimension locating face insert (f1)
22.2
mm
Peak height (h1)
25
mm
depth-of-groove-max-met
5.5
mm
Maximum insertion depth (tmax)
5.5
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R3562525S03.DXF | Download |
| R3562525S03_20240117_050813535.STP | Download |
| Download all files | |
