R356.3232.03

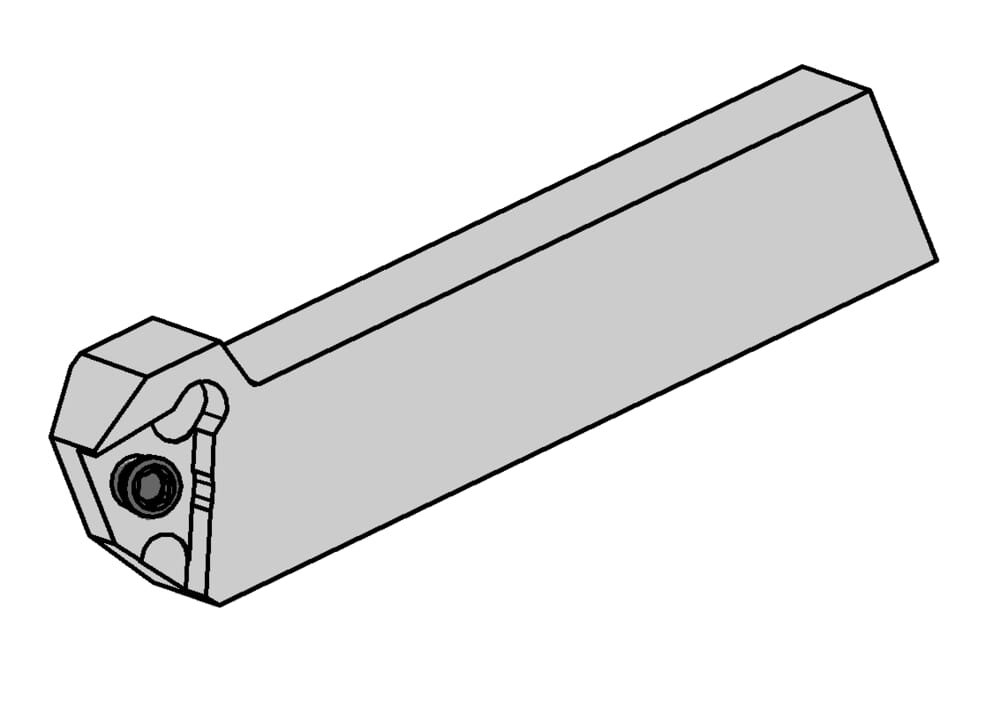

Toolholder
Part number R356323203
HORN Toolholder R356.3232.03 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A3232$$$$
DIN_CCTMS
VKT32320105
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$

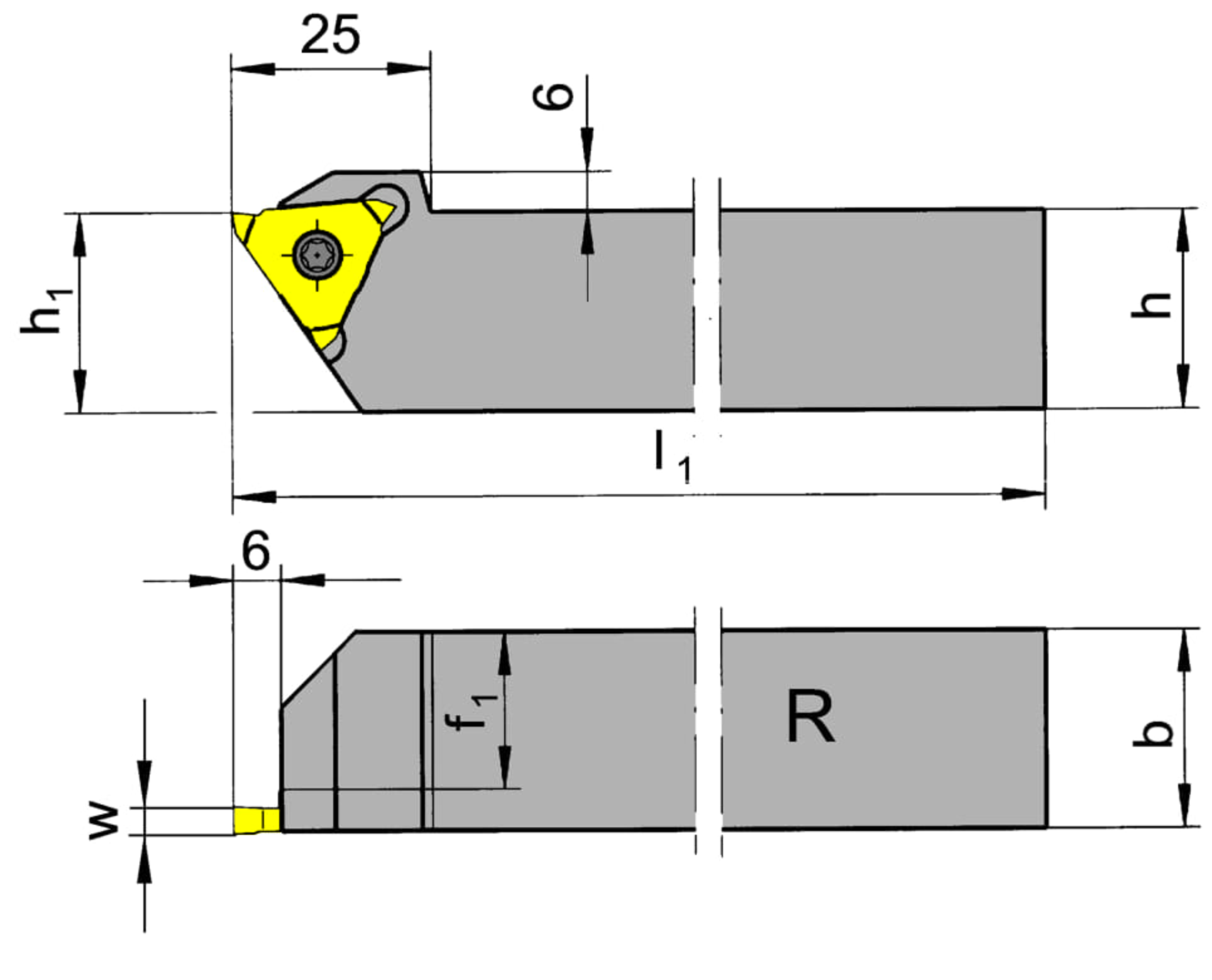

Adjustment dimension locating face insert (f1)
29
mm
Peak height (h1)
32
mm
Shank height (h)
32
mm
Total length (including cutting insert) (l1)
170
mm
Shank width (b)
32
mm
| Downloads | |
|---|---|
| R356323203.DXF | Download |
| R356_3232_03_20171121_204343771.STP | Download |
| Download all files | |
