R360.1212.01

Toolholders

Part number R360121201

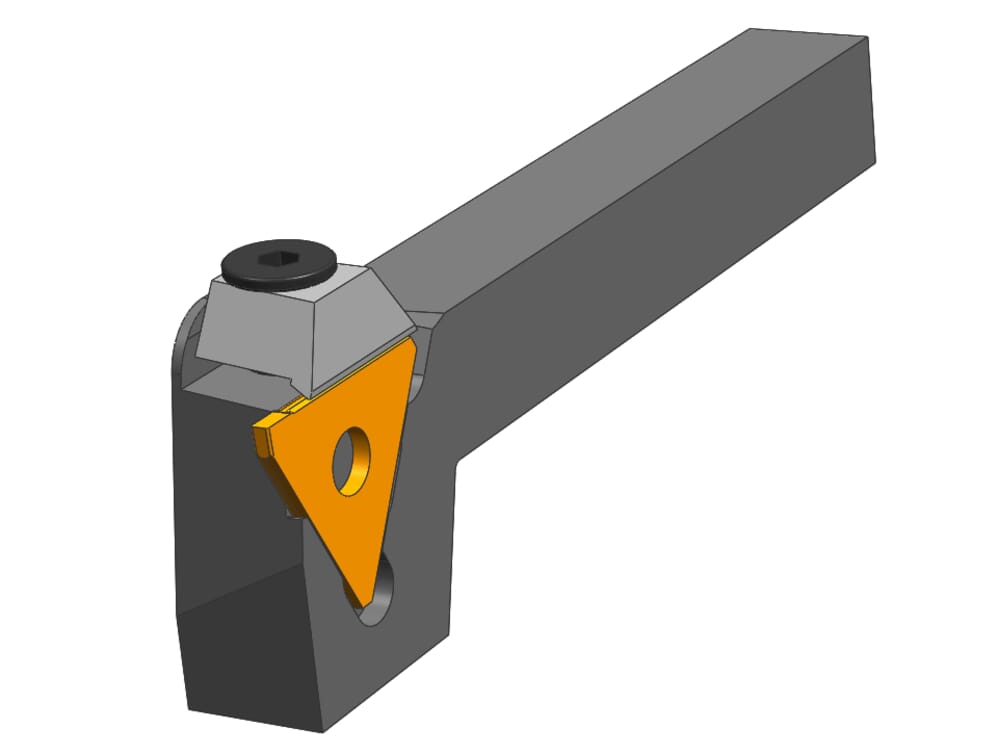

HORN Toolholders R360.1212.01 for Turning

Adjustment dimension (formula) (f)

f1+w-a1

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A1212$$$$

DIN_CCTMS

VKT12120105

Katalog_CCTWS

31201N;31201R;31201L;31208N;31211N

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L;HORN-31208000N;HORN-31211000N

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$;HORN-31208$000N$$$$$;HORN-31211$000N$$$$$

Adjustment dimension locating face insert (f1)

10.5 mm

Head length (including cutting edge) (l2)

24 mm

Clamping range maximum (Spannbereich)

1.9 mm

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

25 mm

Maximum depth of groove (tmax)

4 mm

Shank height (h)

12 mm

Total length (including cutting insert) (l1)

100 mm

Shank width (b)

12 mm
