R368.1616.08.IK
Toolholder
Part number R368161608IK

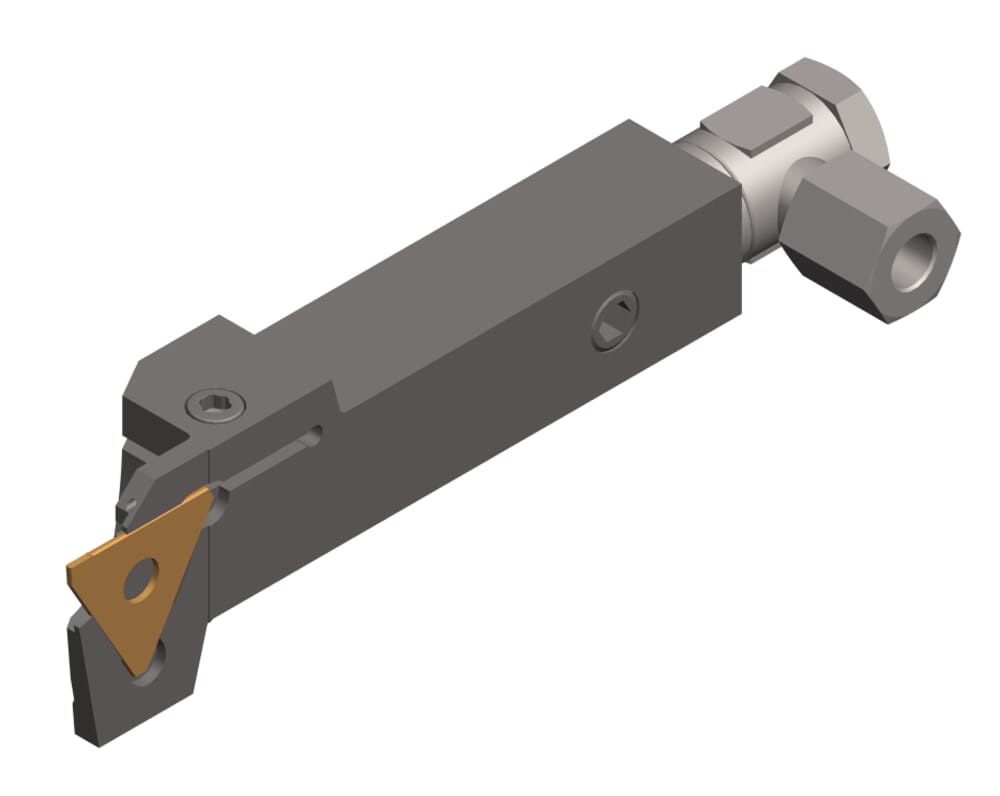

HORN Toolholder R368.1616.08.IK for Turning
Please note:Technical instructions
Head length (including cutting edge) (l2)
19.5
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
31208N
DIN_CCTWS
HORN-31208000N
ISO_CCTWS
HORN-31208$000N$$$$$
Adjustment dimension locating face insert (f1)
1
mm
Adjustment dimension (formula) (f)
f1+a1
Peak height (h1)
24
mm
Maximum depth of groove (tmax)
8
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
95
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| R368161608IK_20210628_222943263.DXF | Download |
| R368161608IK_20240117_033806513.STP | Download |
| Download all files | |
