RA315.3020.02L TH35
Insert
Part number RA315302002LTH35

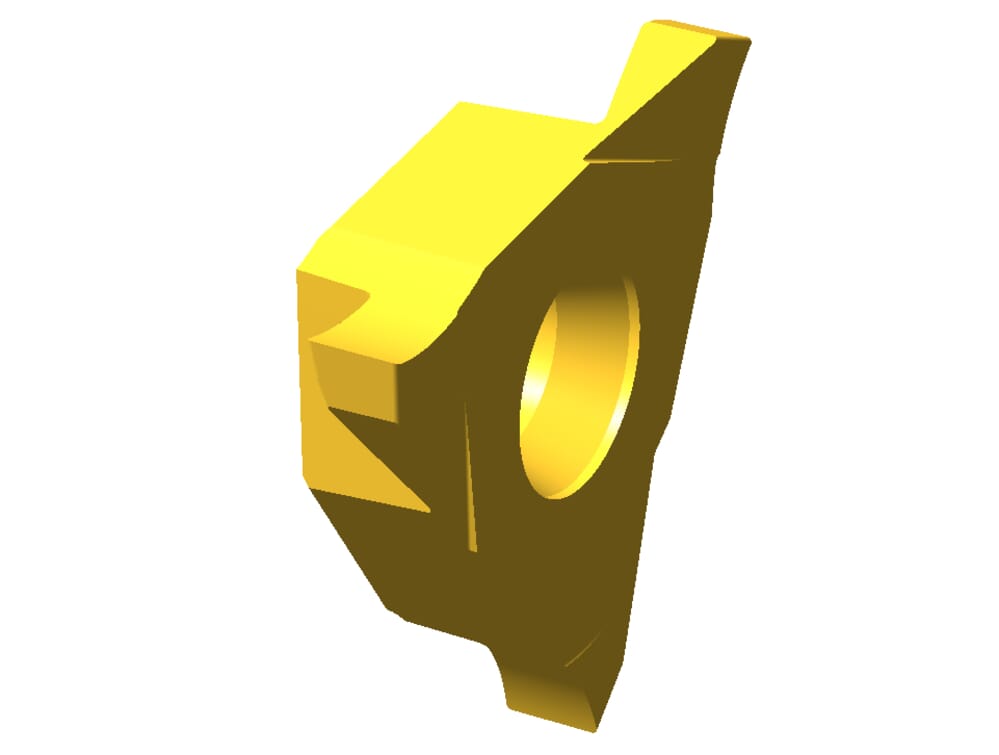

HORN Insert RA315.3020.02L TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3
mm
eclass-shortcut
21-18-20-11
Smallest workpiece diameter (Da min)
30
mm
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31505051R
Katalog_SSC
31505R
Plating seat size (Größe)
5
Width of groove (w)
2
mm
Cutting insert width (s)
5.4
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RA315302002L_20211124_140830241.DXF | Download |
| RA315302002L_20210630_171401631.STP | Download |
| Download all files | |
