RB223.0020.1.22
Toolholders
Part number RB2230020122

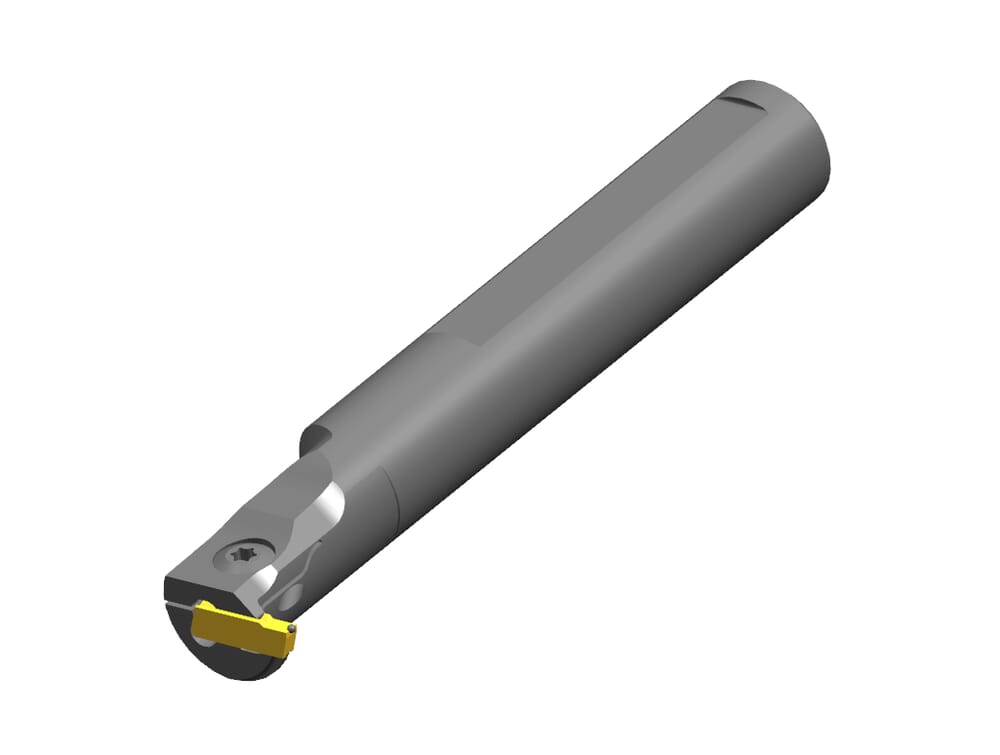

HORN Toolholders RB223.0020.1.22 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
2.99
mm
eclass-shortcut
21-18-10-05

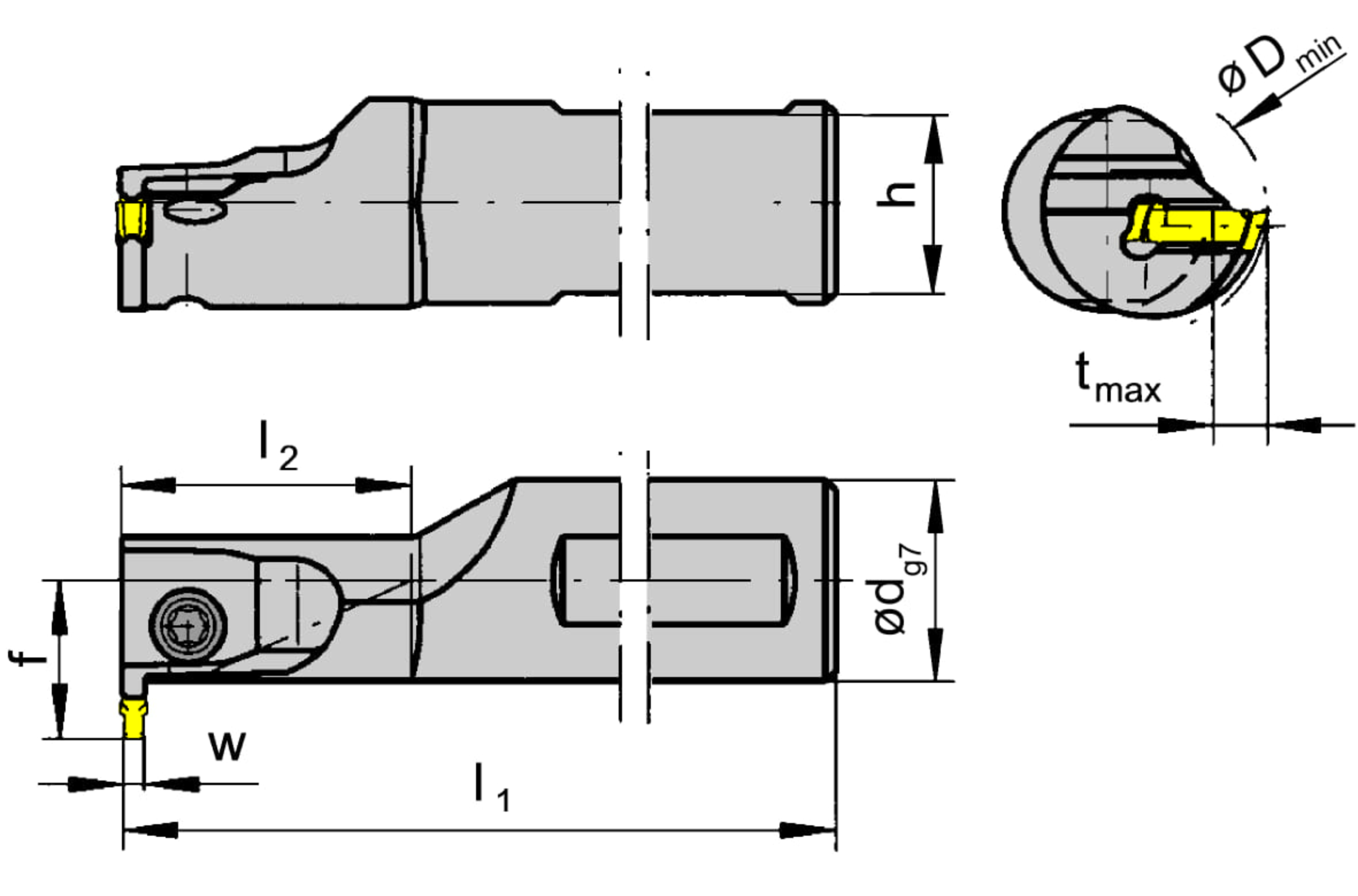

Working length (l2)
30
mm
Plating seat size (Größe)
2
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002305
Katalog_CCTWS
22302
DIN_CCTWS
HORN-223020008N
ISO_CCTWS
HORN223020008N$$$$$
Clamping range minimum (Spannbereich)
2
mm
Shank, clamping diameter (d)
20
Minimum drilling diameter (Dmin)
20
mm
Maximum depth of groove (tmax)
1.65
mm
Total length (including cutting insert) (l1)
120
mm
Adjustment dimension from center (f)
15.7
mm
Distance of clamping surface (s) (h)
18
mm
| Downloads | |
|---|---|
| RB2230020122.DXF | Download |
| RB223_0020_1_22_20171121_201302085.STP | Download |
| Download all files | |
