RH100.3208.84N
Toolholder
Part number RH100320884N

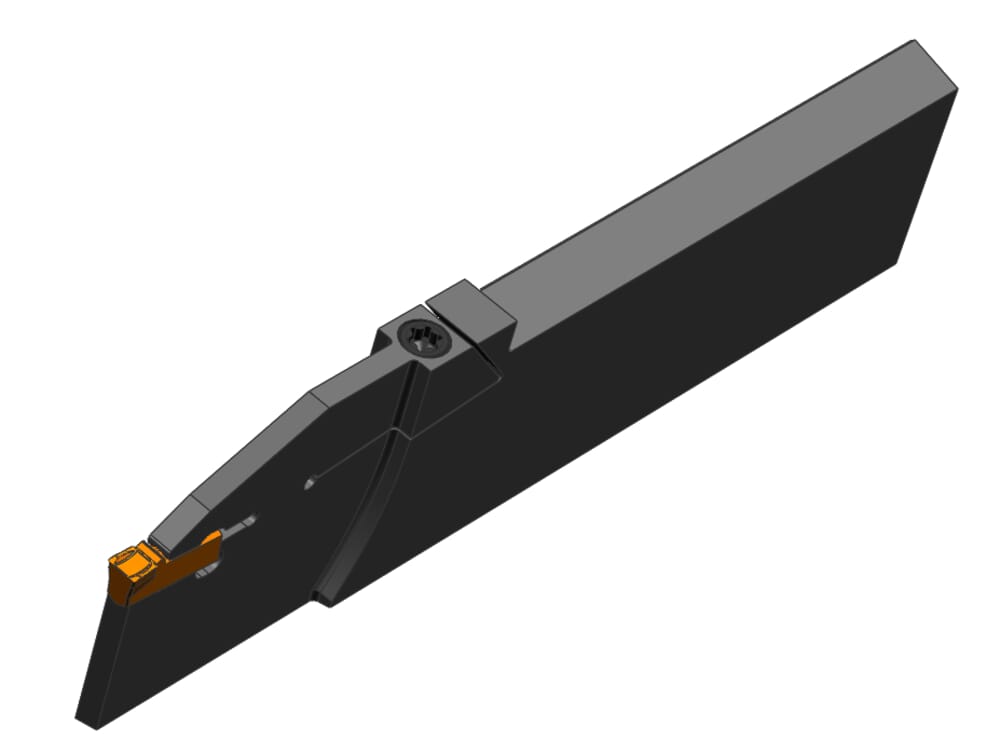

HORN Toolholder RH100.3208.84N for Turning
Please note:Technical instructions
Peak height (h1)
24.8
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Head length top (including cutting edge) (l3)
54.5
mm
Maximum workpiece diameter (Dmax)
80
mm
Maximum insertion depth (tmax)
41
mm
Machine type (Maschinentyp)
TraubTNX80/65
Head height (h)
32
mm
Total length (including cutting insert) (l1)
134
mm
Adjustment dimension (f1)
4
mm
Width / thickness sword (b)
8
mm
| Downloads | |
|---|---|
| RH100320884_20210627_061309294.DXF | Download |
| RH100320884_20230116_154433781.STP | Download |
| Download all files | |
