RH224.1616.0.23.IK
Toolholder
Part number RH2241616023IK

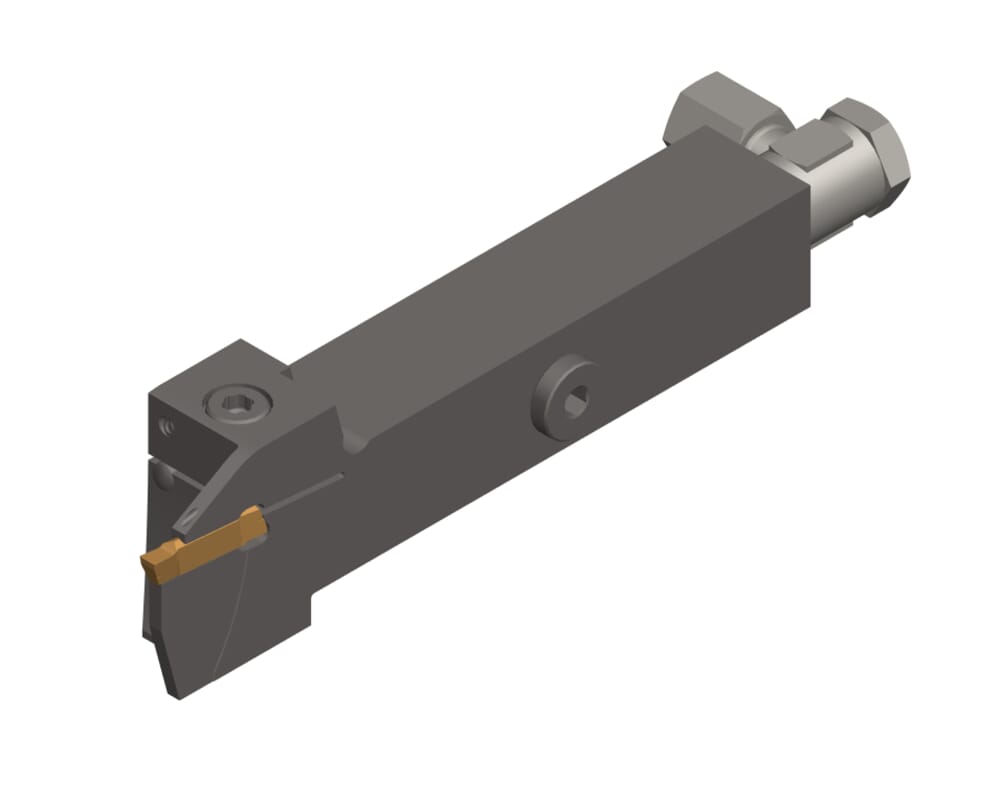

HORN Toolholder RH224.1616.0.23.IK for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
Head length top (including cutting edge) (l3)
39
mm
Head length (including cutting edge) (l2)
33
mm
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
18
mm
Head width (b1)
20
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
14.75
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| RH2241616023IK_20210627_094907583.DXF | Download |
| RH224_1616_0_23_IK.STP | Download |
| Download all files | |
