RH274.1616.04.E
Toolholder
Part number RH274161604E

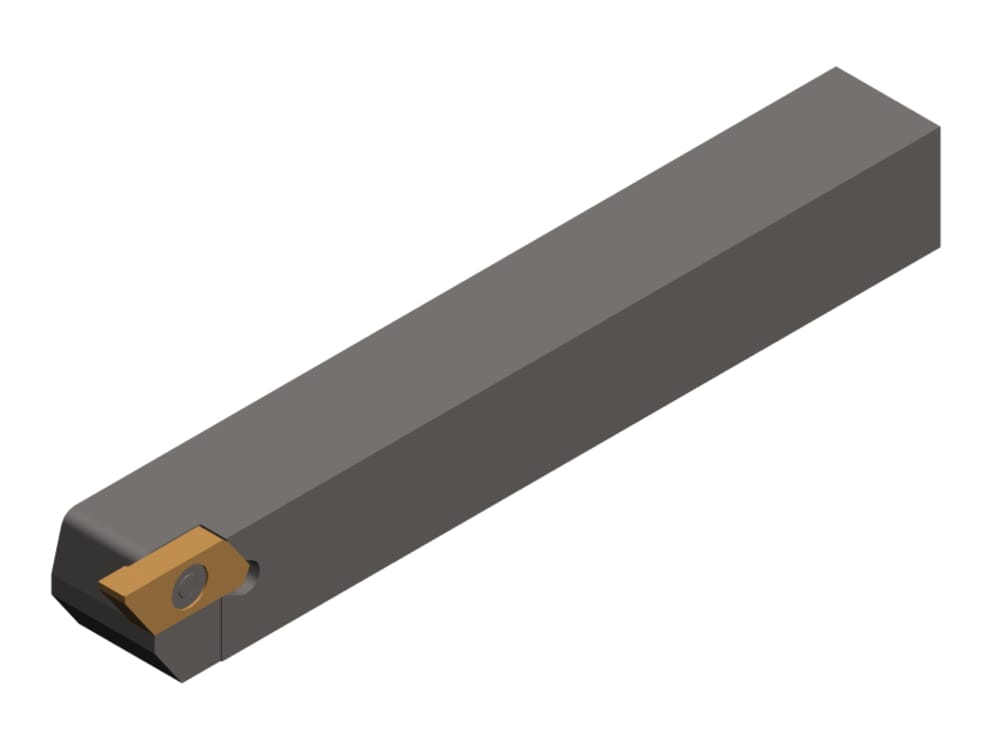

HORN Toolholder RH274.1616.04.E for Turning
Please note:Technical instructions
Peak height (h1)
16
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
274140R
DIN_CCTWS
HORN-274140000R
ISO_CCTWS
HORN274140000R$$$$$
Maximum workpiece diameter (Dmax)
25
mm
Maximum insertion depth (tmax)
6
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension (f)
16
mm
Shank width (b)
16
mm
