RH316.2525.05
grooving-toolholder
Part number RH316252505

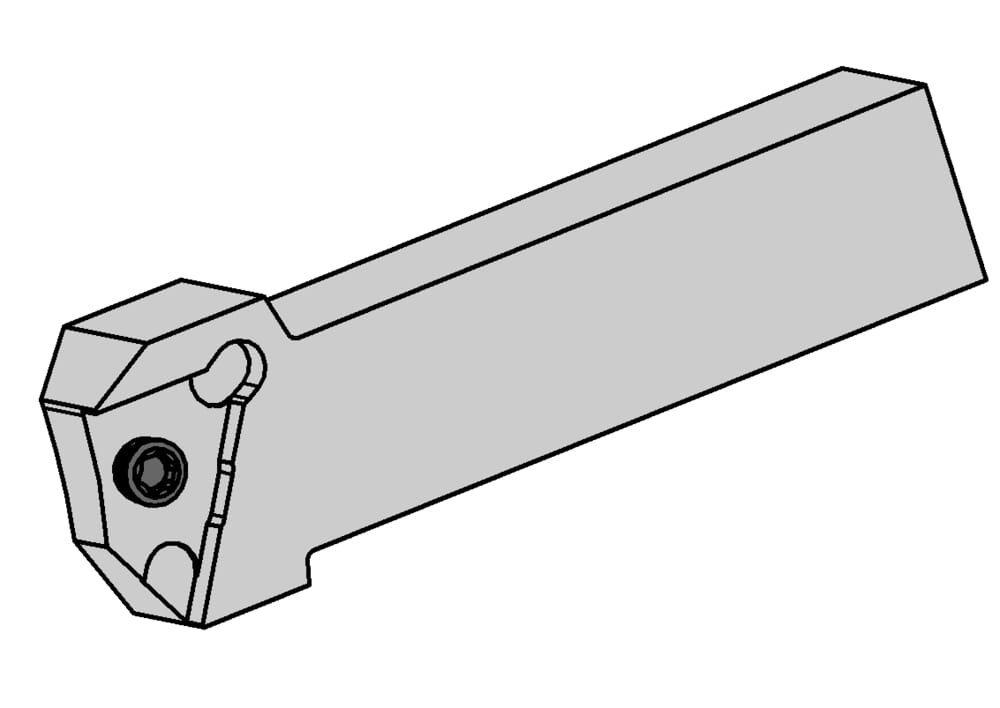

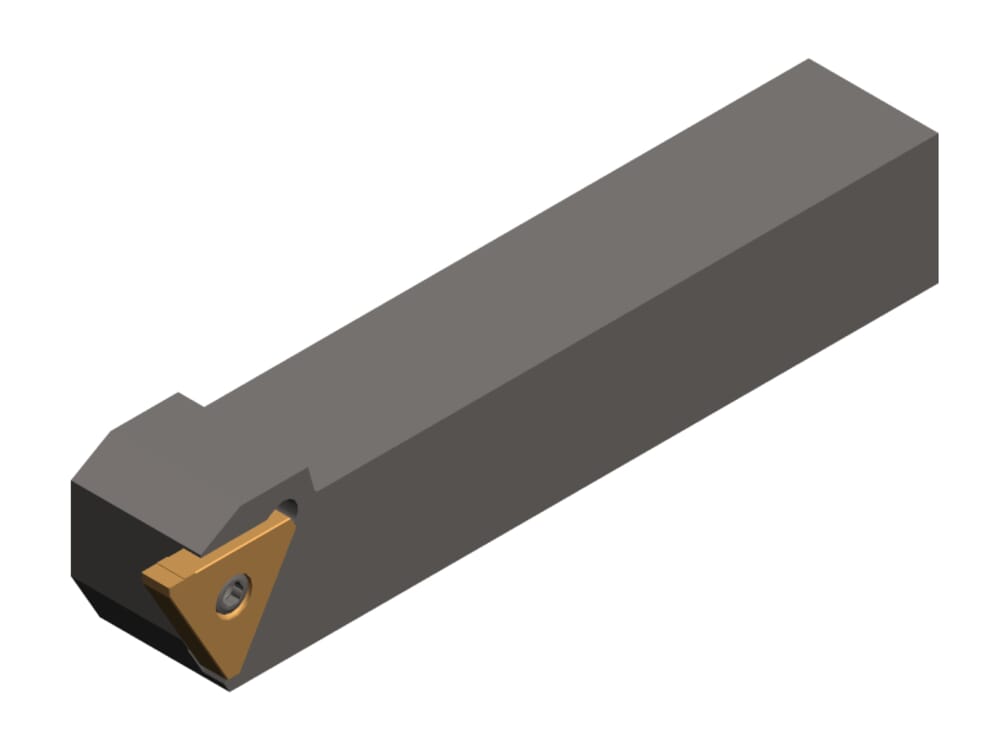

HORN grooving-toolholder RH316.2525.05 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
31605R
DIN_CCTWS
HORN-31605000R
ISO_CCTWS
HORN31605$000R$$$$$

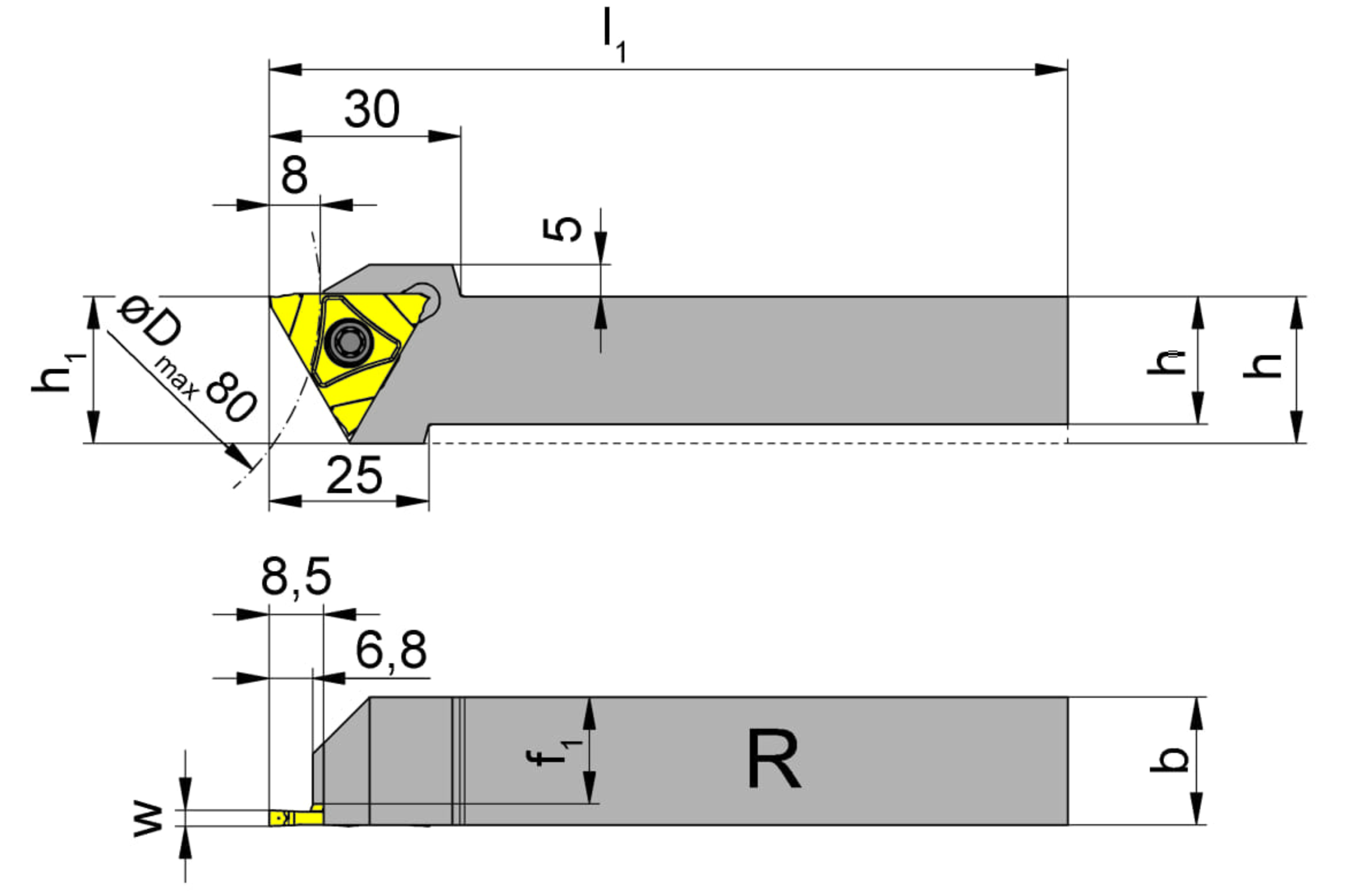

Adjustment dimension locating face insert (f1)
25.2
mm
Peak height (h1)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RH316252505.DXF | Download |
| RH316252505_20230116_090009597.STP | Download |
| Download all files | |
