S100.0400.EN3 AS63
Insert
Part number S1000400EN3AS63

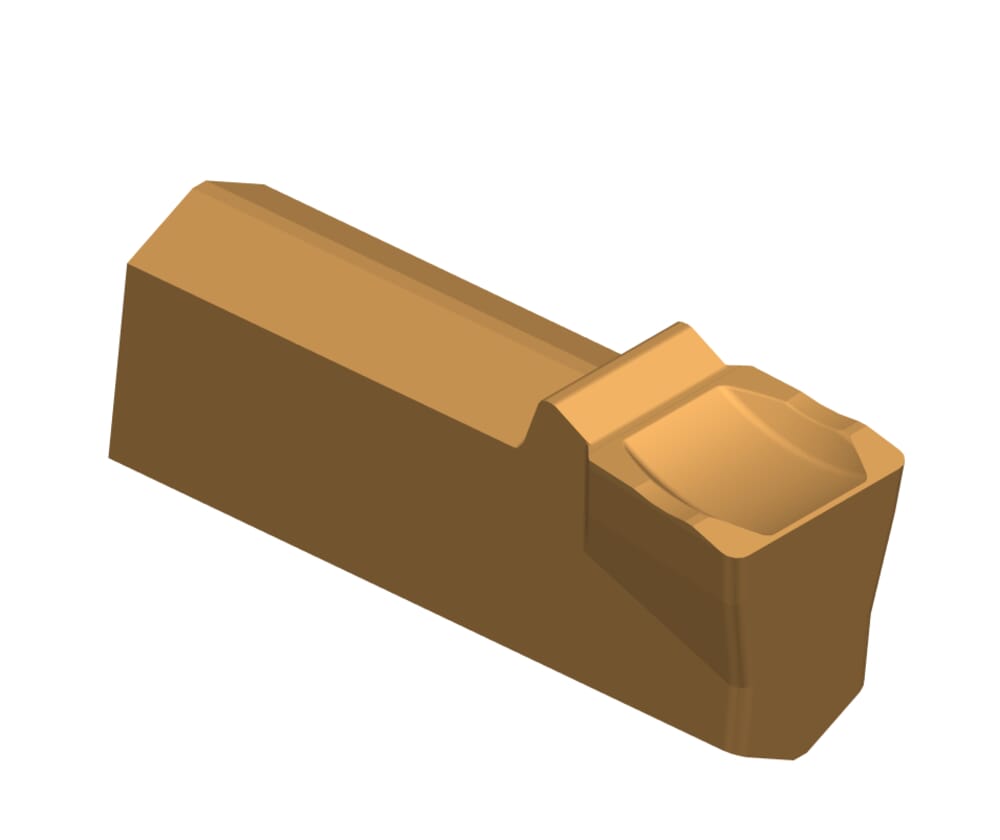

HORN Insert S100.0400.EN3 AS63 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100040058N$$$$$
DIN_SSC
HORN-100040058N
Katalog_SSC
100048
Plating seat size (Größe)
4
Width of groove (w)
4
mm
Corner radius (r)
0.3
mm
| Downloads | |
|---|---|
| S1000400EN3_20210629_052610094.DXF | Download |
| S1000400EN3_20210630_130829336.STP | Download |
| Download all files | |
