S100.0400.EN3.IK AS45
Insert
Part number S1000400EN3IKAS45

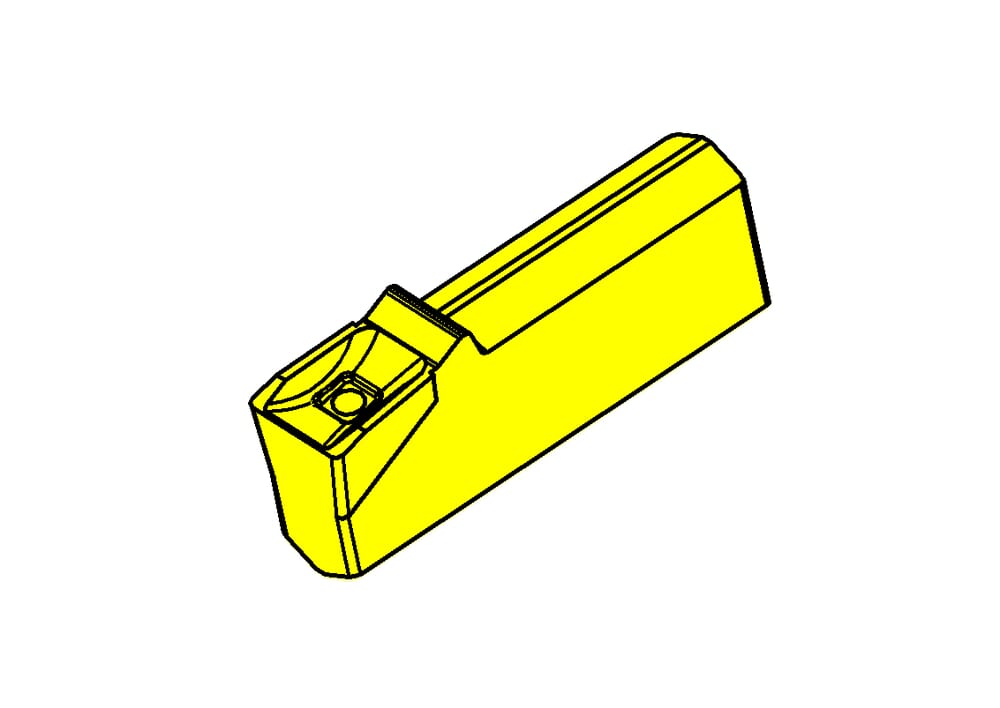

HORN Insert S100.0400.EN3.IK AS45 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100040059N$$$$$
DIN_SSC
HORN-100040059N
Katalog_SSC
100049

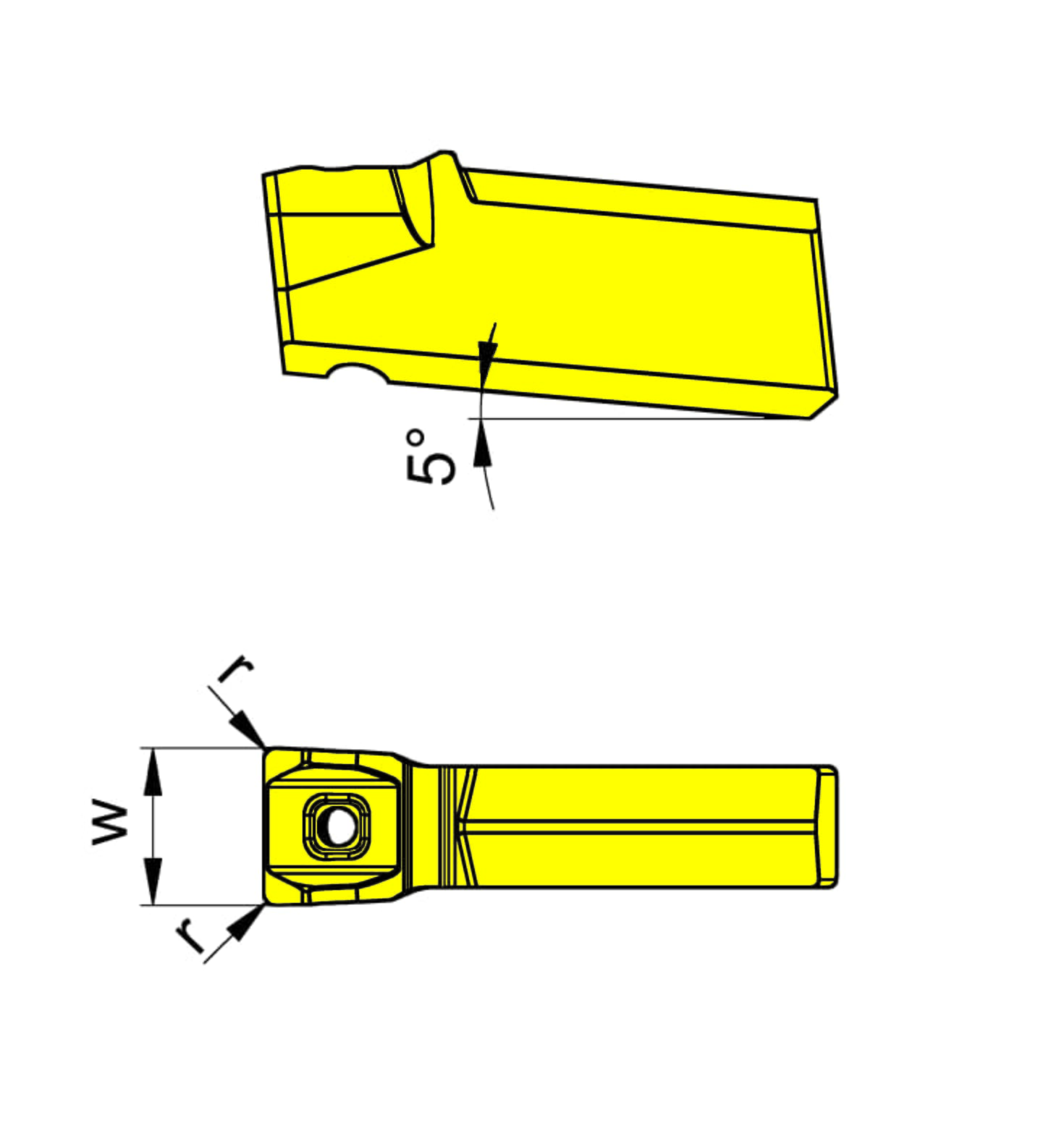

Plating seat size (Größe)
4
Width of groove (w)
4
mm
Corner radius (r)
0.3
mm
| Downloads | |
|---|---|
| S1000400EN3IK.DXF | Download |
| S1000400EN3IK_20230116_210548310.STP | Download |
| Download all files | |
