S100.0600.EN6 AS6G
Insert
Part number S1000600EN6AS6G

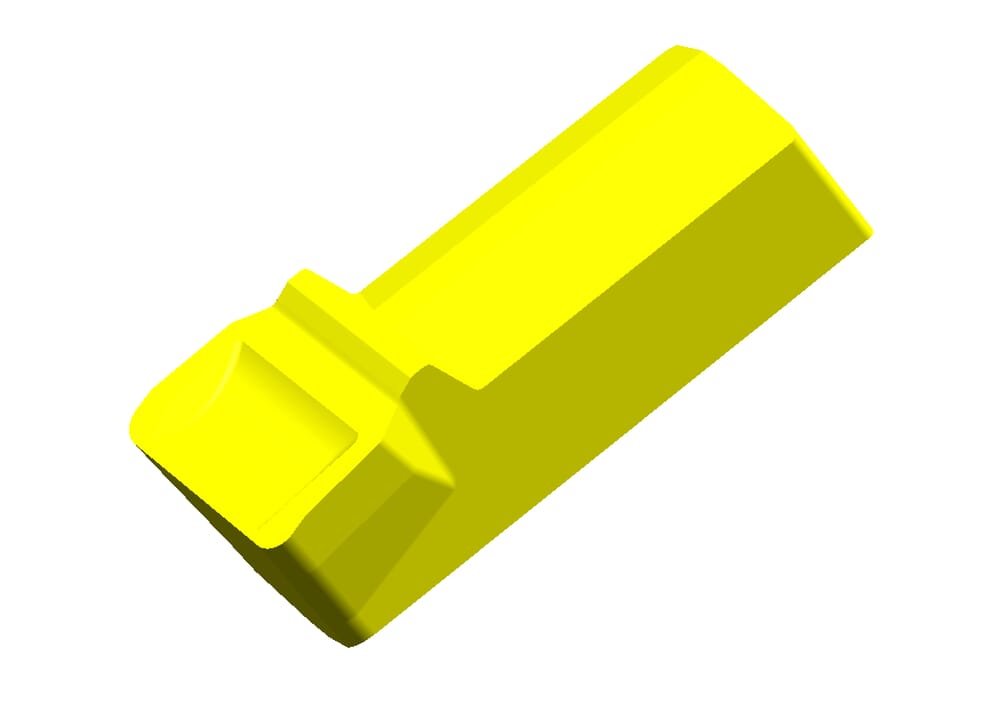

HORN Insert S100.0600.EN6 AS6G for Turning
Please note:Technical instructions
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100060058N$$$$$
DIN_SSC
HORN-100060058N
Katalog_SSC
100068
Plating seat size (Größe)
6
Width of groove (w)
6
mm
Corner radius (r)
0.6
mm
| Downloads | |
|---|---|
| S1000600EN6_20210625_180918536.DXF | Download |
| S1000600EN6_20230116_210658389.STP | Download |
| Download all files | |
