S117.0032.00 MG12
Inserts
Part number S117003200MG12

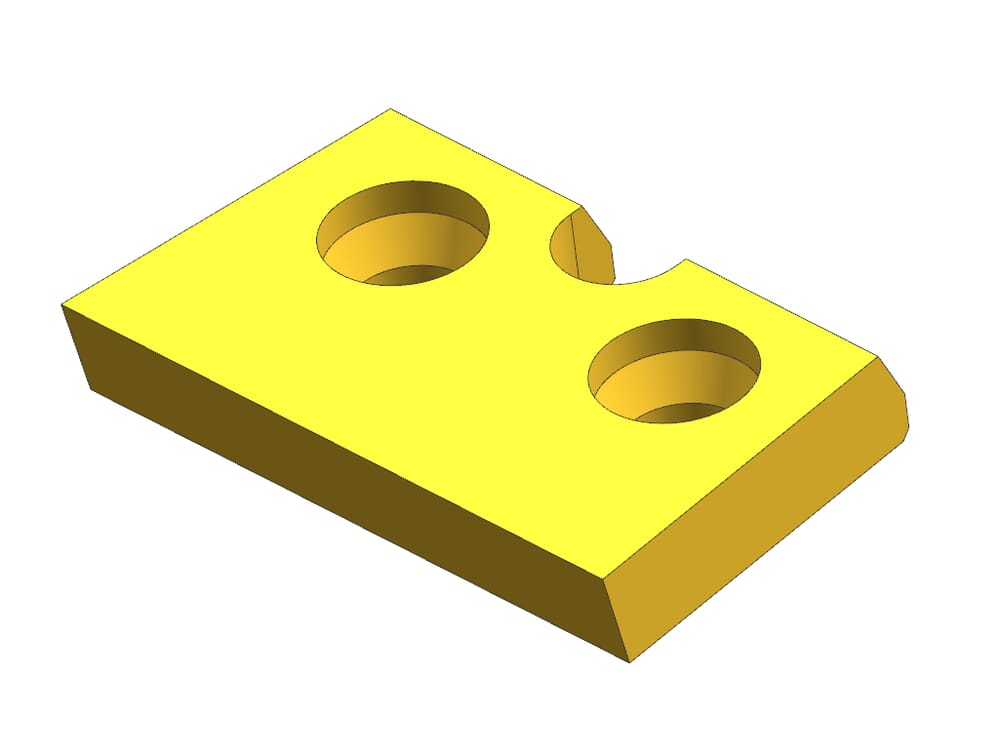

HORN Inserts S117.0032.00 MG12 for Turning
Please note:Technical instructions

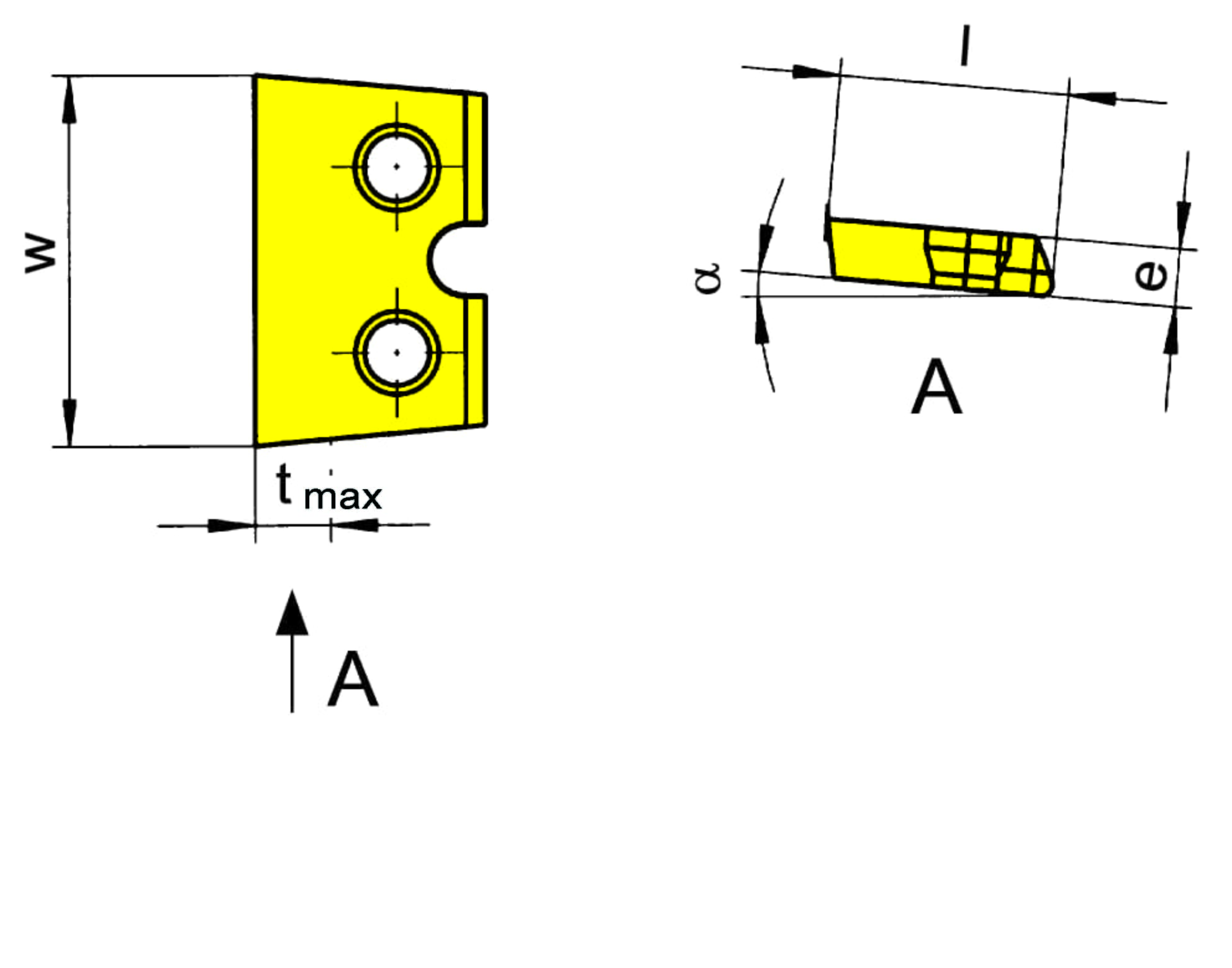

Insertion angle (α)
5
°
Maximum depth of groove (tmax)
6.5
mm
eclass-shortcut
21-18-20-11
Toolholder (Klemmhalter)
H117...32
ISO_SSC
HORN117321050N$$$$$
DIN_SSC
HORN-117321050N
Katalog_SSC
1173205
Width of groove (w)
32
mm
Cutting insert height, Cutting insert thickness (E)
5
mm
Total length (l)
19.7
mm
| Downloads | |
|---|---|
| S117003200_20210625_162453025.DXF | Download |
| S117003200_20230116_132646230.STP | Download |
| Download all files | |
