S223.NC20.D2 TI25
Inserts
Part number S223NC20D2TI25

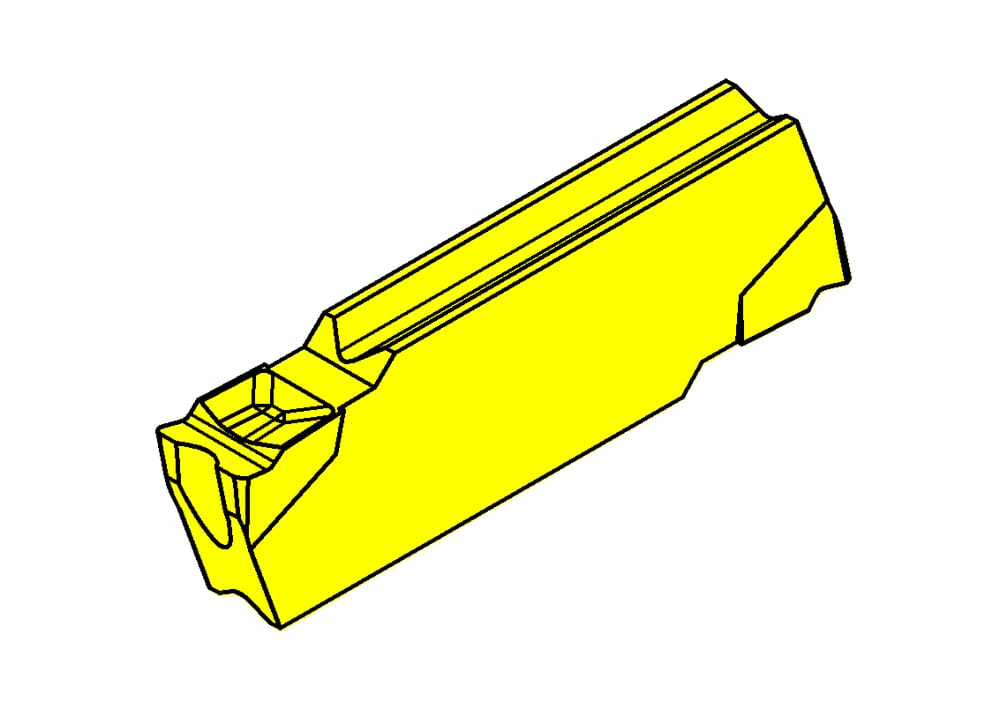

HORN Inserts S223.NC20.D2 TI25 for Turning
Please note:Technical instructions
depth-of-groove-max-met
10
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223010008N$$$$$
DIN_SSC
HORN-223010008N
Katalog_SSC
22301
Plating seat size (Größe)
1
Width of groove (w)
2
mm
Corner radius (r)
0.2
mm
Size of groove (wx)
2.7
mm
| Downloads | |
|---|---|
| S223NC20D2_20210625_163800918.DXF | Download |
| S223NC20D2_20210630_154216233.STP | Download |
| Download all files | |
