S224.0300.3V2.IK HP65
Insert
Part number S22403003V2IKHP65
HORN Insert S224.0300.3V2.IK HP65 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224030059N$$$$$
DIN_SSC
HORN-224030059N
Katalog_SSC
224039
Plating seat size (Größe)
3

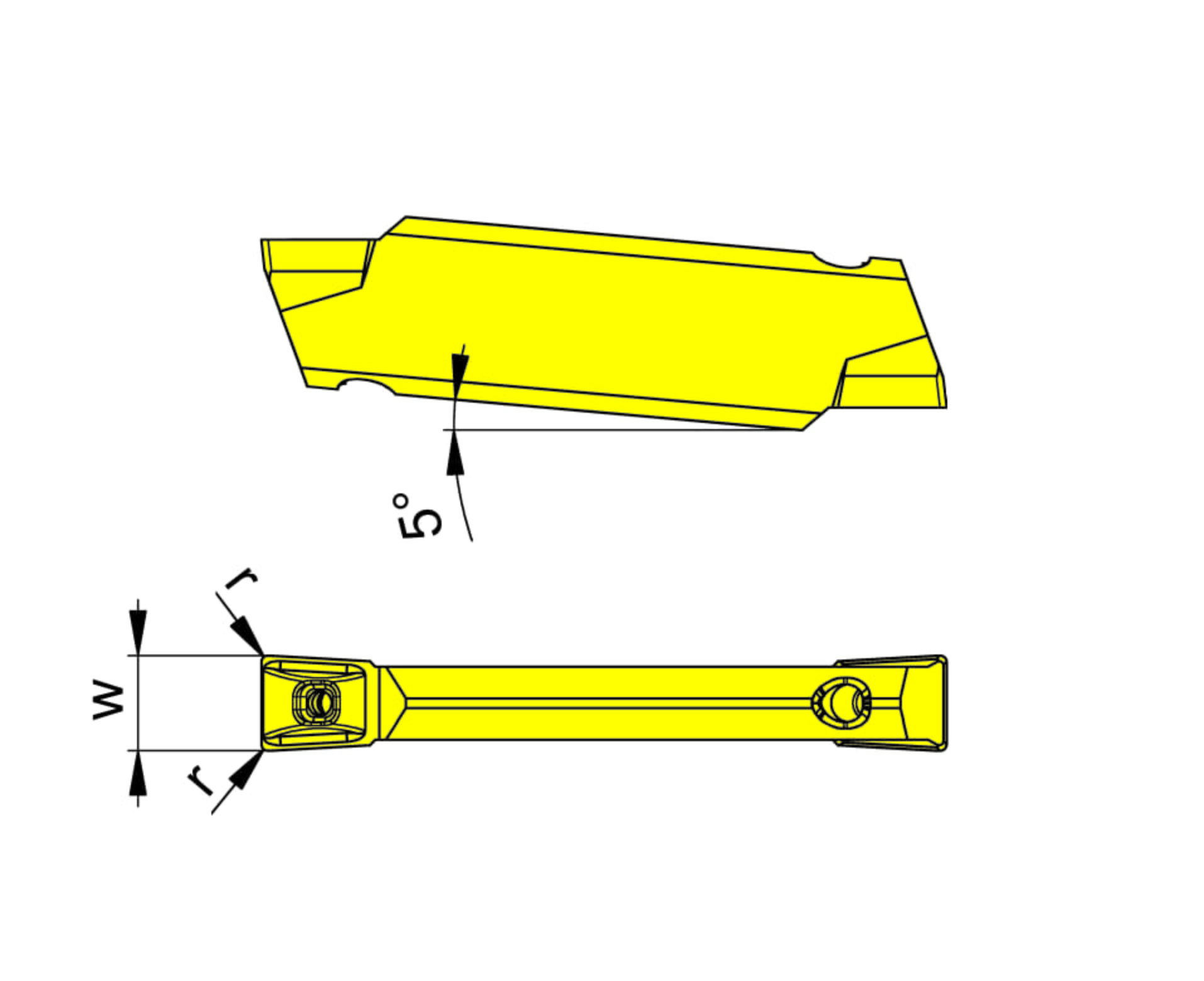

Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S22403003V2IK.DXF | Download |
| S22403003V2IK_20230116_173554932.STP | Download |
| Download all files | |
